5–5Replacement Procedures
1. Timing Belt Cover (P/N 150793–001)
2. Screw (2) (Scr, Hex, w/LW 10–32x.50)
3. Paper Feed Timing Belt (P/N 108664–003)
4. Motor Pulley ( p/o item 6.)
5. Splined Shaft Pulley (P/N 150289–001; p/o item 7.)
6. Paper Feed Drive Motor (P/N 150452–001)
(Paper Feed Drive Motor Assembly, P/N 155005–001)
7. Splined Shaft Assy. w/Pulley (P/N 150491–001; includes item 5.)
5
4
1
3
6
2
2
Direction of Force
7

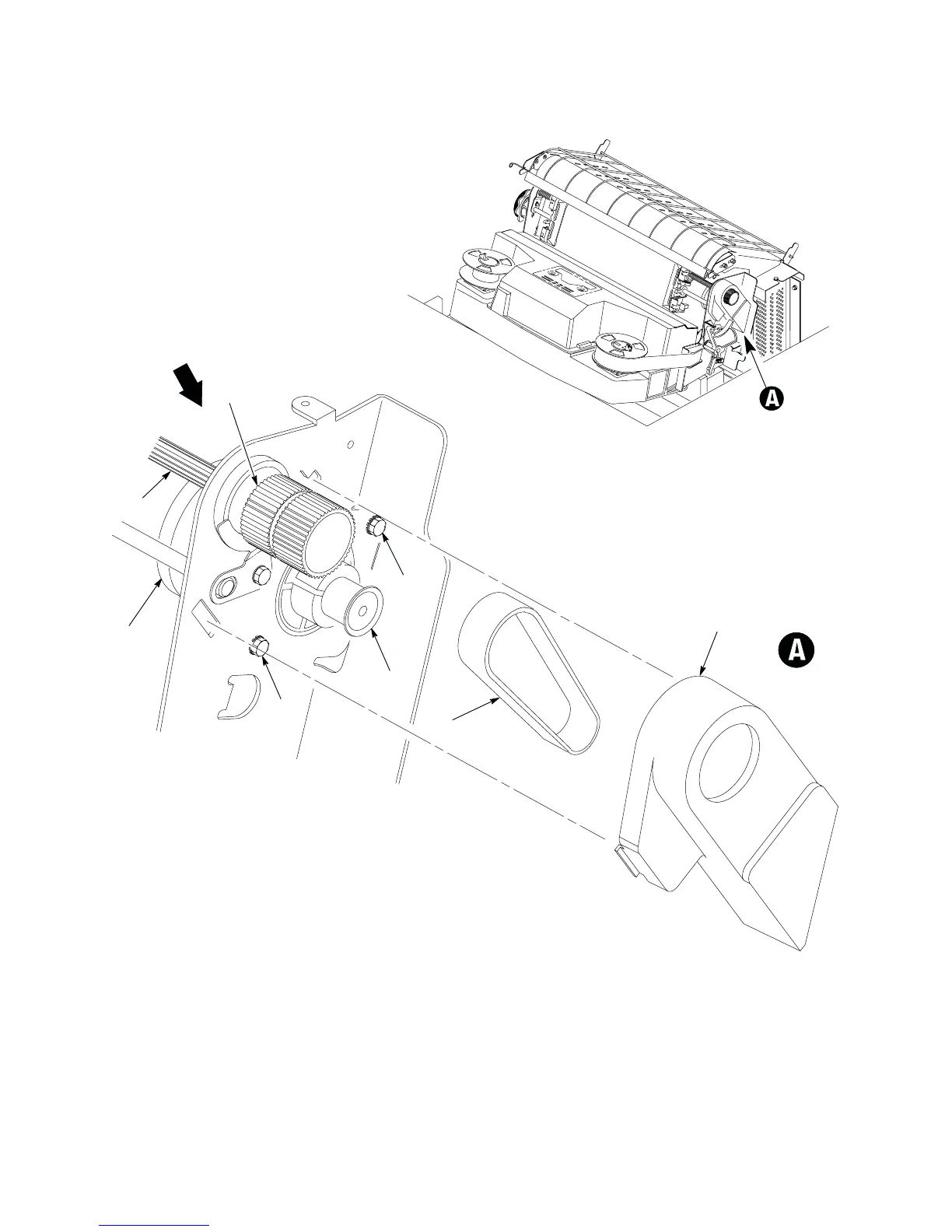

Figure 5–1 . Belt, Paper Feed Timing, Removal/Installation
