5–7Replacement Procedures
1. Belt Cover (P/N 150769–001)
2. Screw (2) (Scr, Hex w/LW, 10–32x.50)
3. Platen Open Belt (P/N 105808–003)
4. Motor Pulley (P/N 155071–001)
5. Platen Pulley (P/N 150703–001)
6. Set Screw (Scr, Skt cap, 6–32x.44)
1
6
5
2
2
4
3
Direction of Force

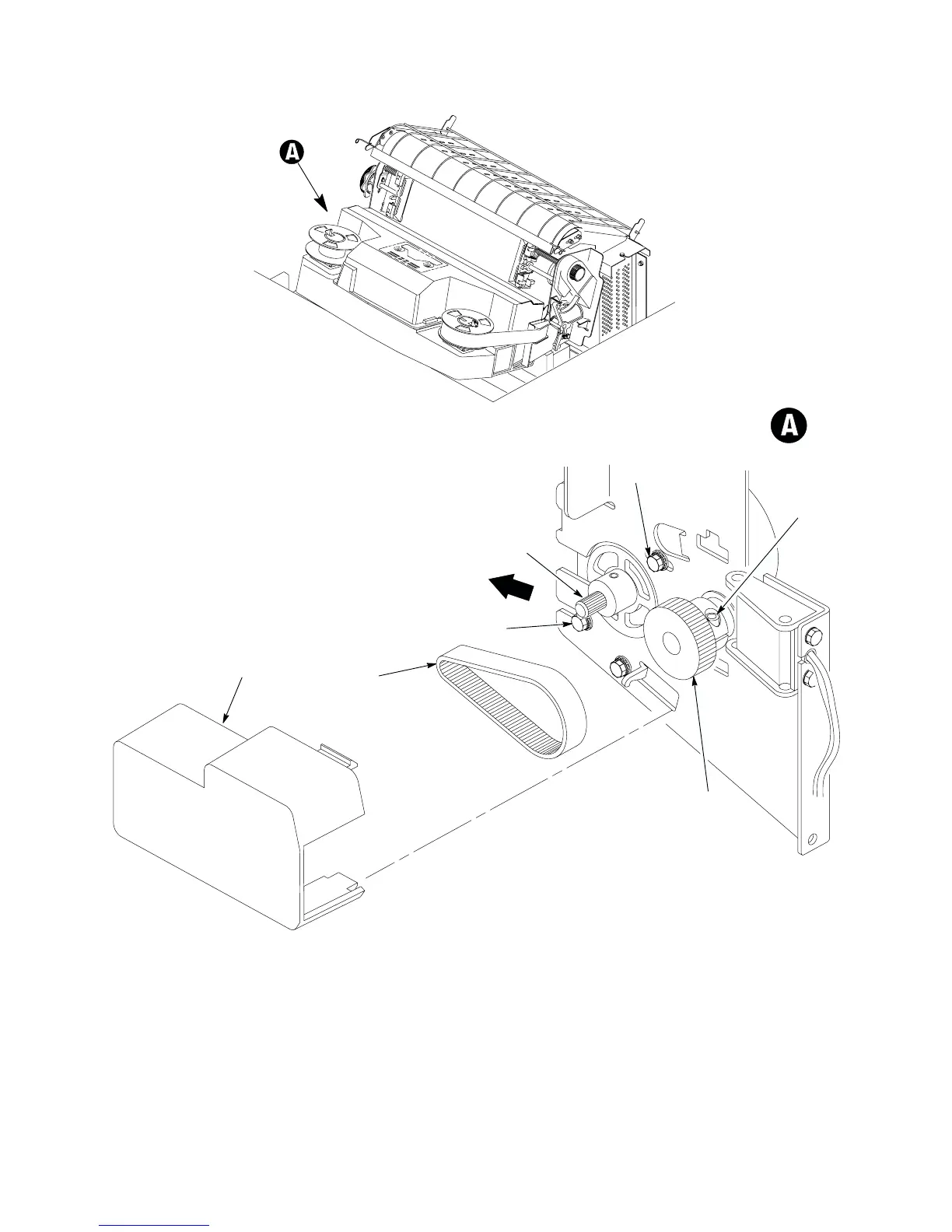

Figure 5–2 . Belt, Platen Open, Removal/Installation
