Pin Function 4-conductor cable
1 Power supply (5 V) brown
2 Coding white
3 Feedback blue
4 Earth / GND black
9.2.4 "Diaphragm rupture sensor" terminal
There is a connecting option for a diaphragm rupture sensor.
Electrical interface
Data Value Unit
Voltage with open contacts 5 V
Input resistance 10 kΩ
Control via:
n potential-free contact (load: 0.5 mA at 5 V) or
Pin Function 4-conductor cable
1 Power supply (5 V) brown
2 Coding white
3 Feedback blue
4 Earth / GND black
9.3 Relay
9.3.1 "Fault indicating relay" output (identity code 1 + 3 or 6 + 7)
A fault indicating relay can be ordered as an option - refer to ordering
information in the appendix. It is used to emit a signal when there is a fault
with the pump and for the "Liquid level low, 1st stage" warning alert and
"Liquid level low, 2nd stage".
A cut-off relay works when there are fault alerts from the pump and in the
event of the "Liquid level low 2nd stage" alert.
The fault indicating relay can be retrofitted and is operational once
attached to the relay board - refer to "Retrofitting Relays" supplementary
operating instructions.
The behaviour is programmed ex factory. If another switching function is
required, the pump can be reprogrammed in the
‘Relay’
menu.
The relay can be retrofitted and operates once it is plugged into the relay
board.

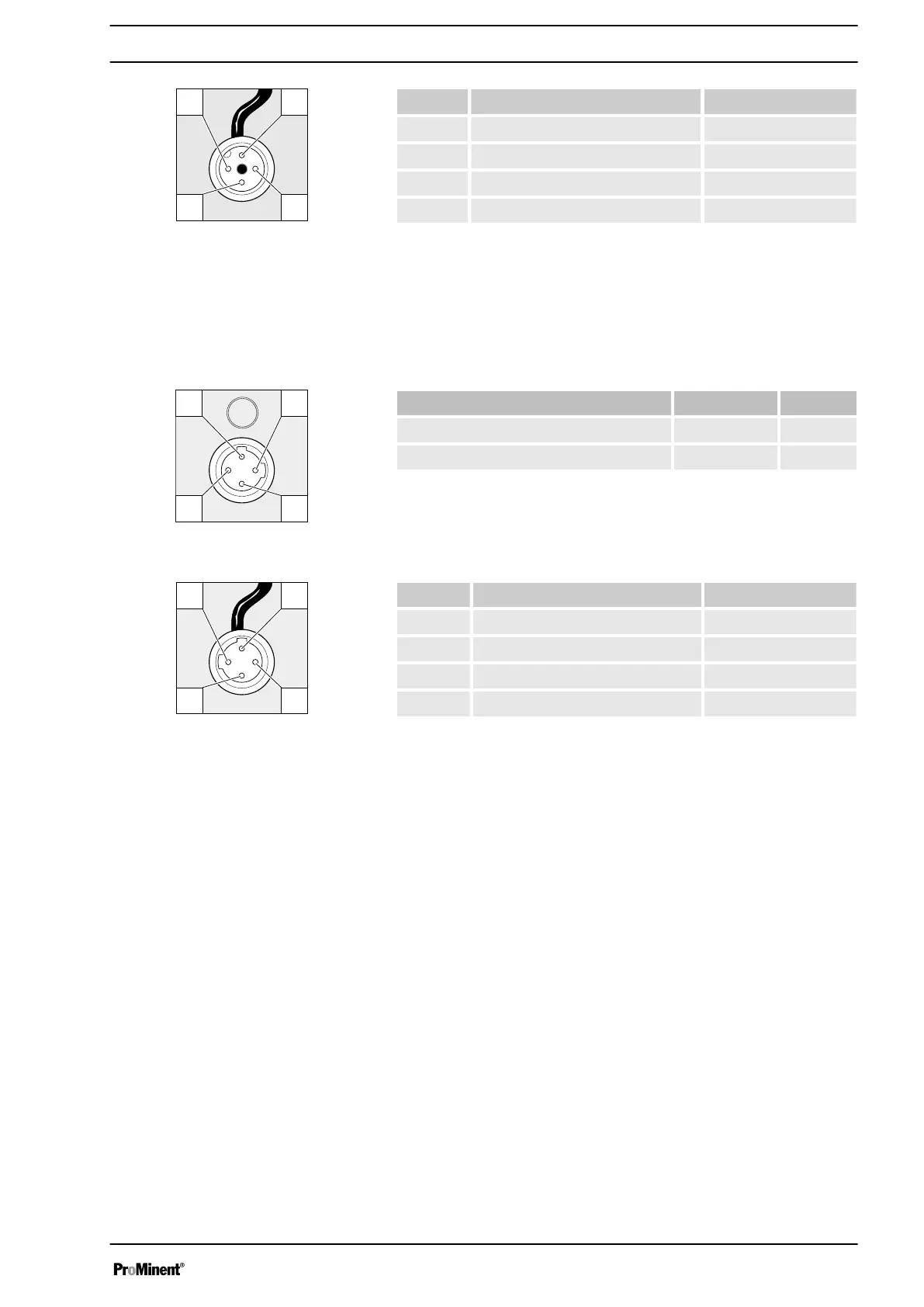

Fig. 15: Cable conductor assignments
Fig. 16: Pump pin assignments
Fig. 17: Cable conductor assignments
