Lower sideband
Using this processing type, you can control a metering pump using the
current signal as shown in the diagram below.
However, you can also control two metering pumps for different feed
chemicals via a current signal (e.g. one acid pump and one alkali pump
using the signal of a pH sensor). To do this, you must connect the pumps
electrically in series, - see the wiring diagram in
Ä Chapter 9 ‘Electrical
installation’ on page 31
.
The "Lower sideband" symbol appears in the LCD display. Below I1, the
pump works at a rate of F1 - above I2 it stops. Between I1 and I2 the
stroke rate varies between F1 and F2 in proportion to the signal current.
I [mA]
I 1 I 2
F2
F1
0 20
a) b)
P1
P2
Fmax
B0089
I [mA]
I 1
I 2
F1
0 20
P1
P2
F2
Fmax

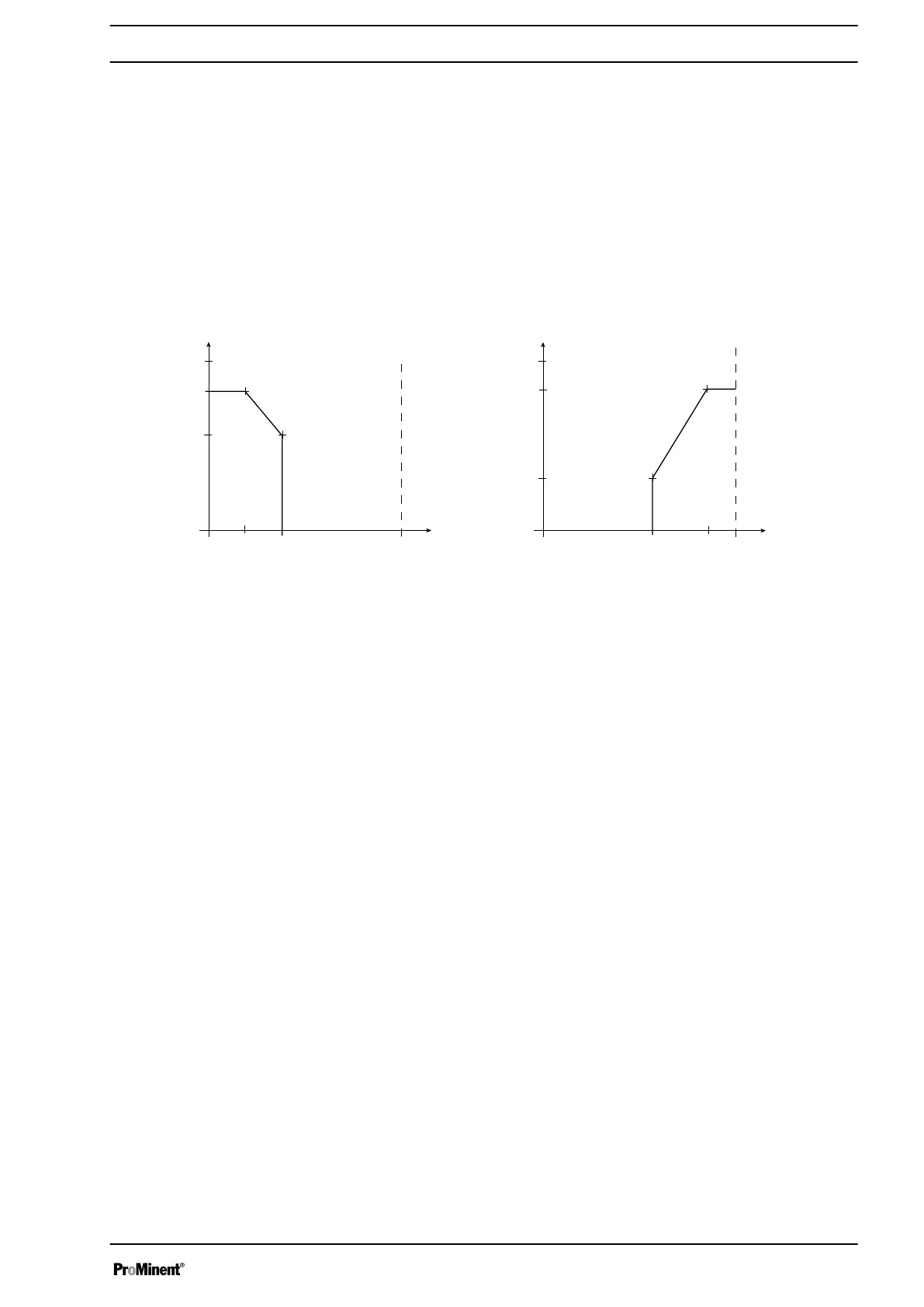

Fig. 26: Frequency-current diagram for a) Lower sideband, b) Upper sideband
Upper sideband
Using this processing type, you can control a metering pump using the
current signal as shown in the diagram above.
However, you can also control two metering pumps for different feed
chemicals via a current signal (e.g. one acid pump and one alkali pump
using the signal of a pH sensor). To do this, you must connect the pumps
electrically in series, - see the wiring diagram in
Ä Chapter 9 ‘Electrical
installation’ on page 31
.
The "Upper sideband" symbol appears in the LCD display. Below I1, the
pump is stationary - above I2 the pump works at rate F2. Between I1 and
I2 the stroke rate varies between F1 and F2 in proportion to the signal cur‐
rent.
10.6 Programmable function settings ("Settings" menu )
Setting menus are available in all operating modes in the menu "SET‐
TINGS" for the following programmable functions:
n Concentration (menu
‘CONCENTRATION’
)
n Auxiliary frequency (menu
‘AUX’
)
n Flow (menu
‘FLOW’
) (only available if a dosing monitor is connected)
n Calibration (menu
‘CALIBRATION’
)
n Metering (menu
‘METERING’
)
n Relay (menu
‘RELAY’
) (only available if a relay is fitted)
n System (menu
‘SYSTEM’
)
Set up
47
