1.
2.

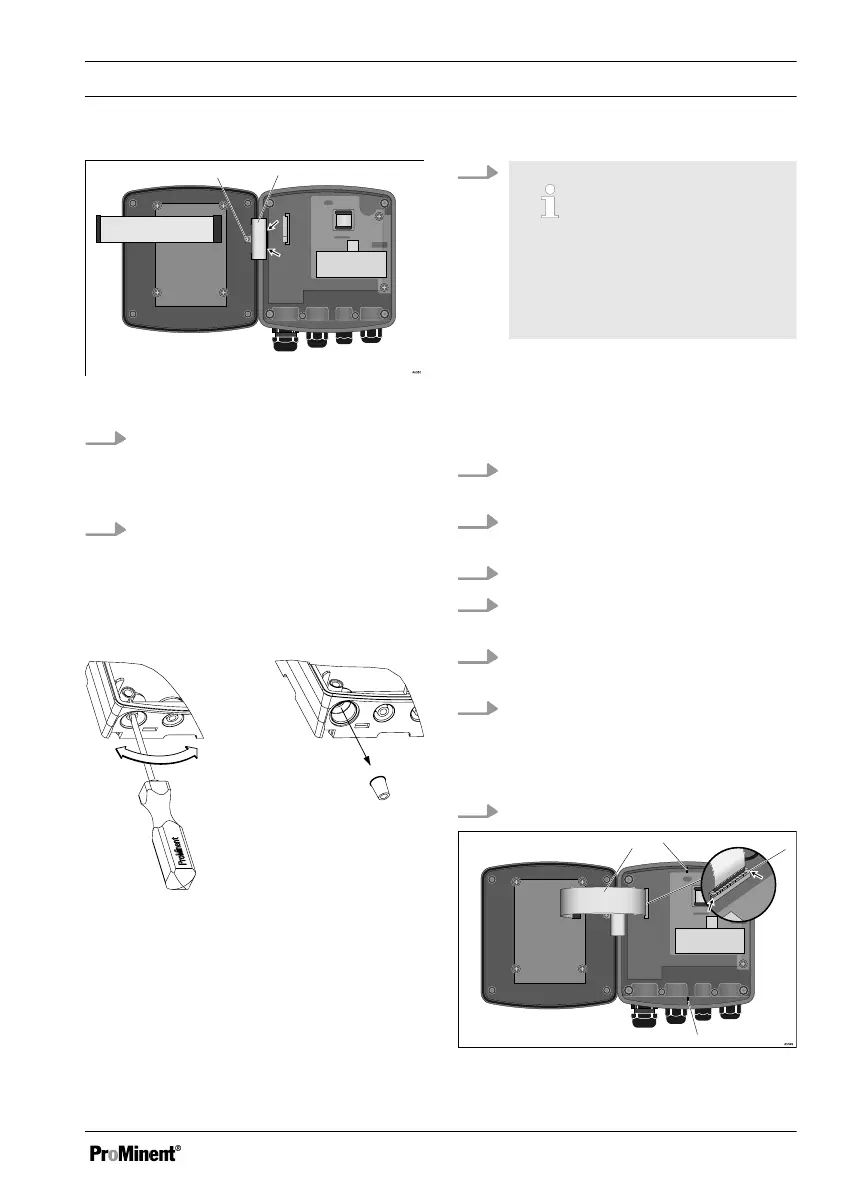

Fig. 42: Dismantling the hinge
4. Remove the screw (2), unclip the
hinge (1) on the lower part of the
controller housing (arrows) and
remove the hinge
5. Label the cable connectors fitted to
distinguish them and remove the
cables from the lower part of the
controller
Preparing the new lower part of the con‐
troller housing
A0272
Fig. 43: Punching out the threaded holes
6.
Large threaded connection (M
20 x 1.5)
Small threaded connection (M
16 x 1.5)
Punch out as many threaded holes
on the bottom of the lower part of
the controller housing as required
Fit the cable and threaded connectors
7. Guide the cable into the respective
reducing inserts
8. Insert the reducing inserts into the
threaded connectors
9. Guide the cable into the controller
10. Connect the cable as indicated in
the terminal diagram
11. Screw in the required threaded con‐
nectors and tighten
12. Tighten the threaded connector
clamping nuts so that they are prop‐
erly sealed
Refit the controller
13. Fit the hinge
1.
2.
3.
4.
Fig. 44: Fix the ribbon cable
Replacing spare part units
