5.2.2 Pipe mounting
Mounting (mechanical)
Pipe diameter
Pipe diameter: 25 mm to 60 mm.
2
1
A0273

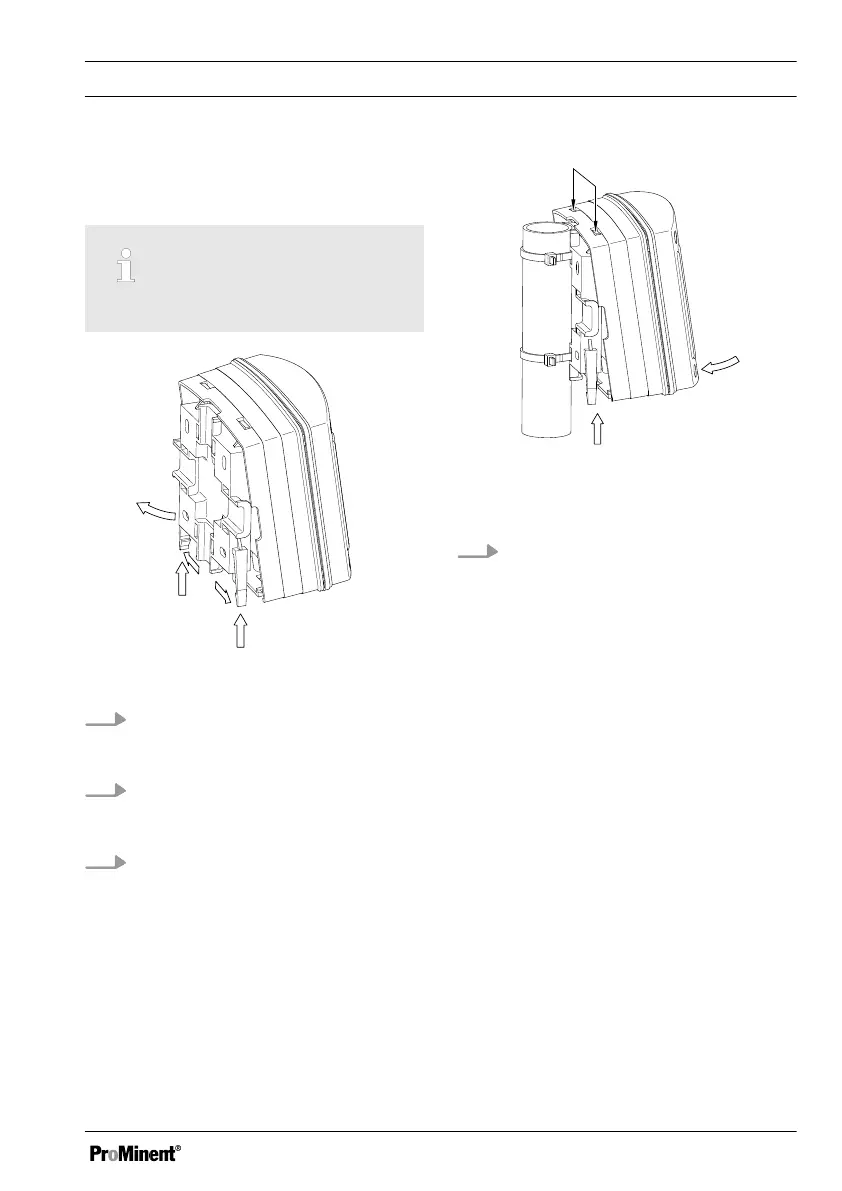

Fig. 3: Removing the wall/pipe bracket
1. Remove the wall/pipe bracket. Pull
the two snap-hooks (1) outwards
and push upwards
2. Fold out the wall/pipe bracket (2)
and pull out in a downwards direc‐
tion
3. Secure the wall/pipe bracket using
cable ties (or pipe clips) to the pipe
A0275
3
2
1
Fig. 4: Suspend and secure the
DULCOMETER
®
Compact Controller
4.
Suspend the DULCOMETER
®
Compact Controller at the top (1) in
the wall/pipe bracket and push
using light pressure at the bottom
(2) against the wall/pipe bracket.
Then press upwards (3) until the
DULCOMETER
®
Compact Con‐
troller audibly snaps into position
Assembly and installation
