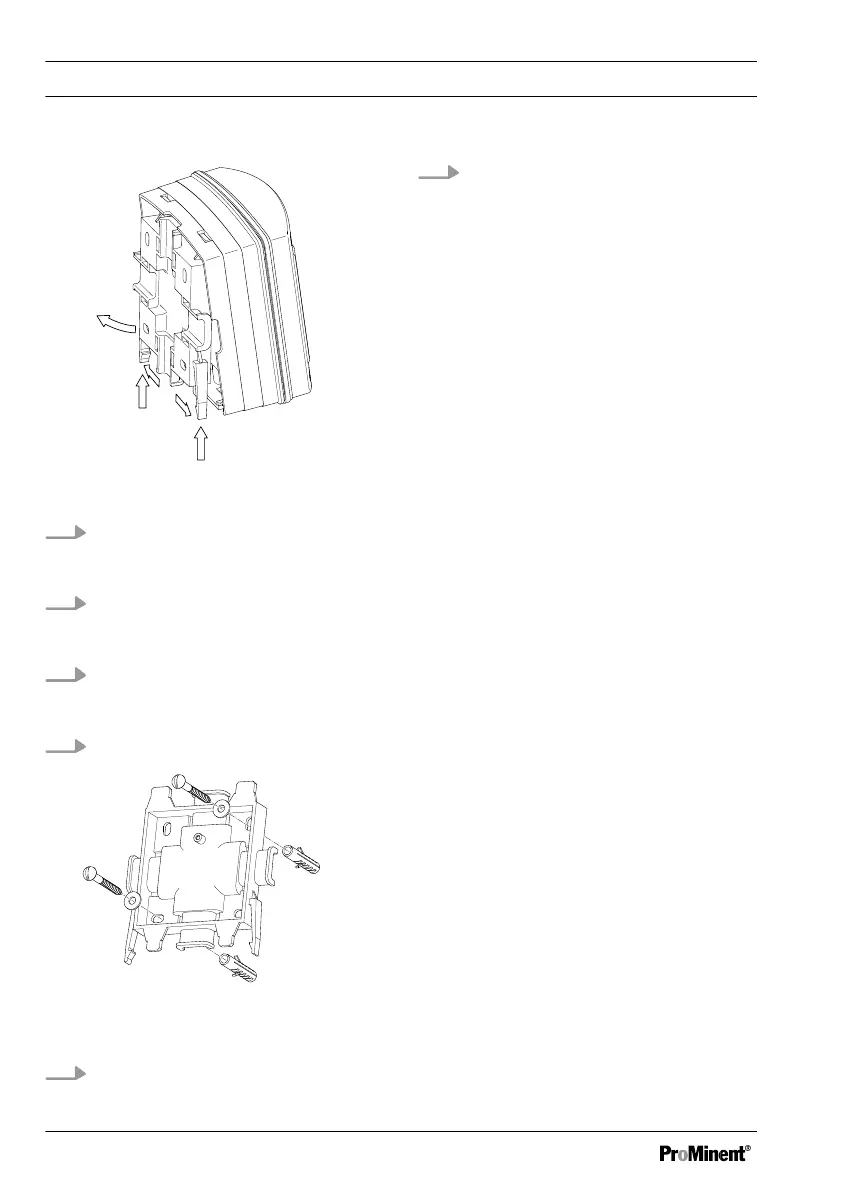

Fig. 1: Removing the wall/pipe bracket
1. Remove the wall/pipe bracket. Pull
the two snap-hooks (1) outwards
and push upwards
2. Fold out the wall/pipe bracket (2)
and pull out in a downwards direc‐
tion
3. Mark two drill holes diagonal to
each other by using the wall/pipe
bracket as a drilling template
4. Drill holes: Ø 8 mm, d = 50 mm
A0274
Fig. 2: Screwing on the wall/pipe bracket
using washers
5. Screw on the wall/pipe bracket
using the washers
6.
Suspend the DULCOMETER
®
Compact Controller at the top in the
wall/pipe bracket and push using
light pressure at the bottom against
the wall/pipe bracket. Then press
upwards until the DULCOMETER
®
Compact Controller audibly snaps
into position.
