9.6 Setting the

[DEVICE]

A1624

≡MENU

DEVICE

OUTPUT

INPUT

※DEVICE

PASSWORD: ****

※DEVICE

NEW PASSW.

5000=FREE

※DEVICE

RESTART DEVICE...

PASSWORD: ****

RESTART DEVICE...

RESTART!!!

5000

※DEVICE

PASSWORD: ****

RESTART DEVICE...

FACTORY

RESET!!!!

FACTORY RESET...

PASSWORD:

5000

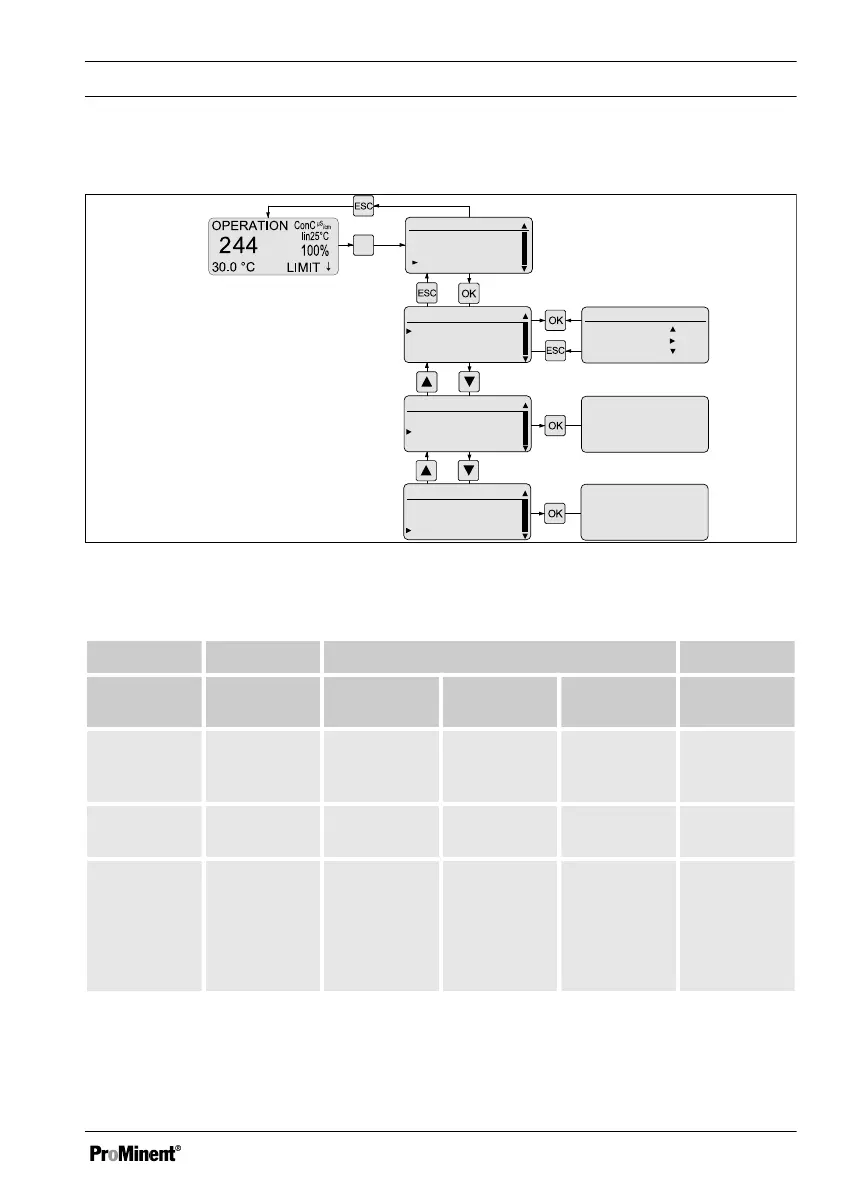

Fig. 29: Setting the [DEVICE]

Setting Possible values

Starting

value

Increment Lower value Upper value Remark

[PASS‐

WORD]

5000 1 0000 9999 5000 = no

password

protection

[RESTART

DEVICE]

Controller is

restarted

[FACTORY

RESET...]

no yes

yes = FAC‐

TORY

RESET!

no = FAC‐

TORY

RESET!

All the con‐

troller's

parameters

are reset to

factory set‐

tings.
