Identifying Unconfigured Physical Drives
Click the
Show unconfigured PD(s) box to identify the unconfigured
physical drives in the NAS.
Identifying Physical Drives Assigned to a Disk Array
Click the Highlight Arrays button to identify the physical drives assigned to a
disk array.
Click on of the following items in the dropdown menu:
• All DA – all disk arrays
• DA0 (DA1, DA2, etc.) – a specific disk array
• Close – click to close the menu and return to normal view.
The carriers containing drives that do not belong to the chosen disk array will
be highlighted.
3.3.2 Back View
Click Device tab > Back View to display the back view of all enclosures in
the NAS. Move your mouse over the power supply and I/O units to view the
PSU status and the operational status of the devices through the I/O units.

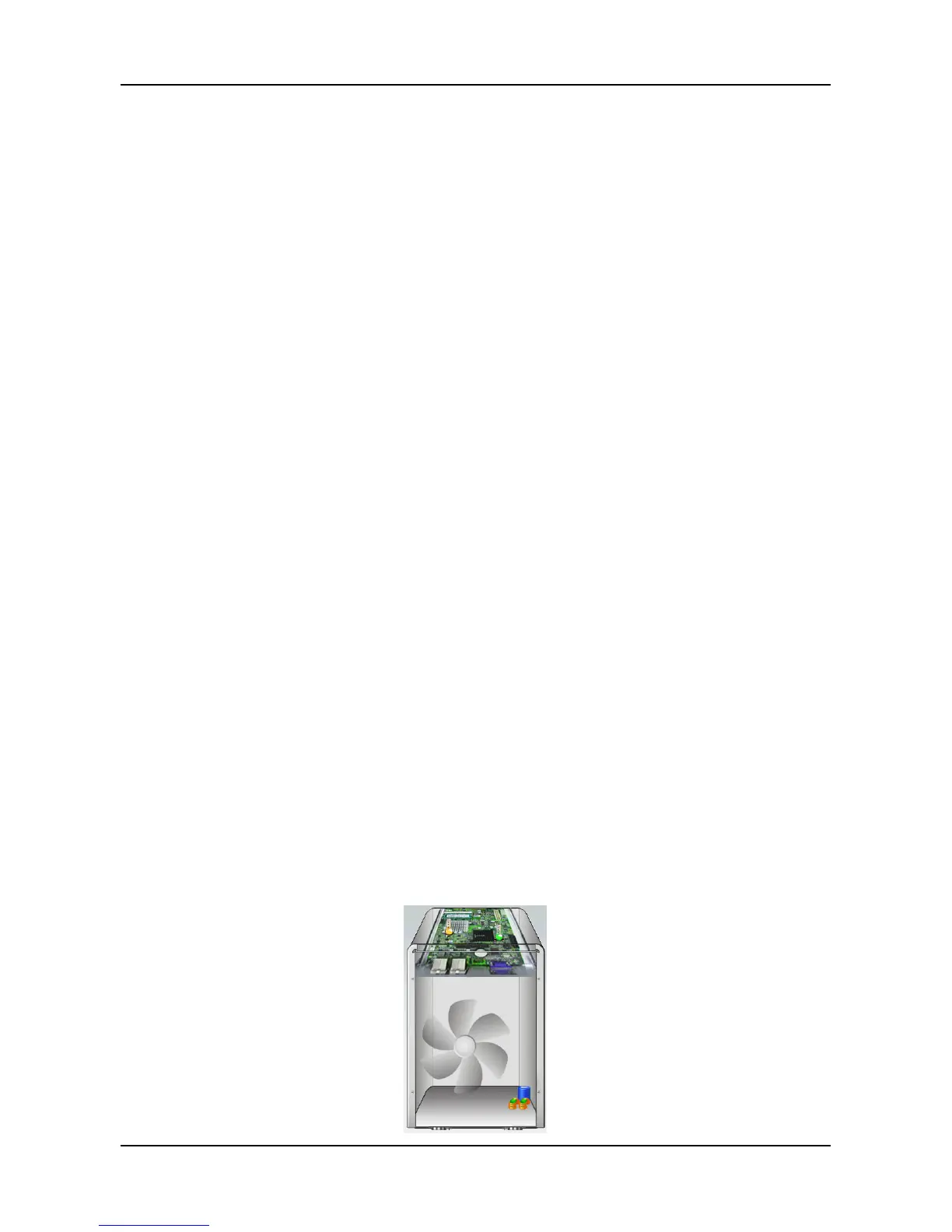

Click Show Internal Components to display the virtual view of the internal
components (as shown below).
Move your mouse over the component and the related information will be
displayed:
• CPU – CPU usage
• Controller thermometer – temperature of the controller board
• Temperature of the system
• RAM – memory usage
• Enclosure information
25
