SmartStor NAS User Manual
3. Click the Submit button. The current configuration will be saved as
a .bcf file in your Host PC.
3.5.9 LUNMap Management
The LUN Mapping function allows you to control what storage arrays are
visible to which computers.

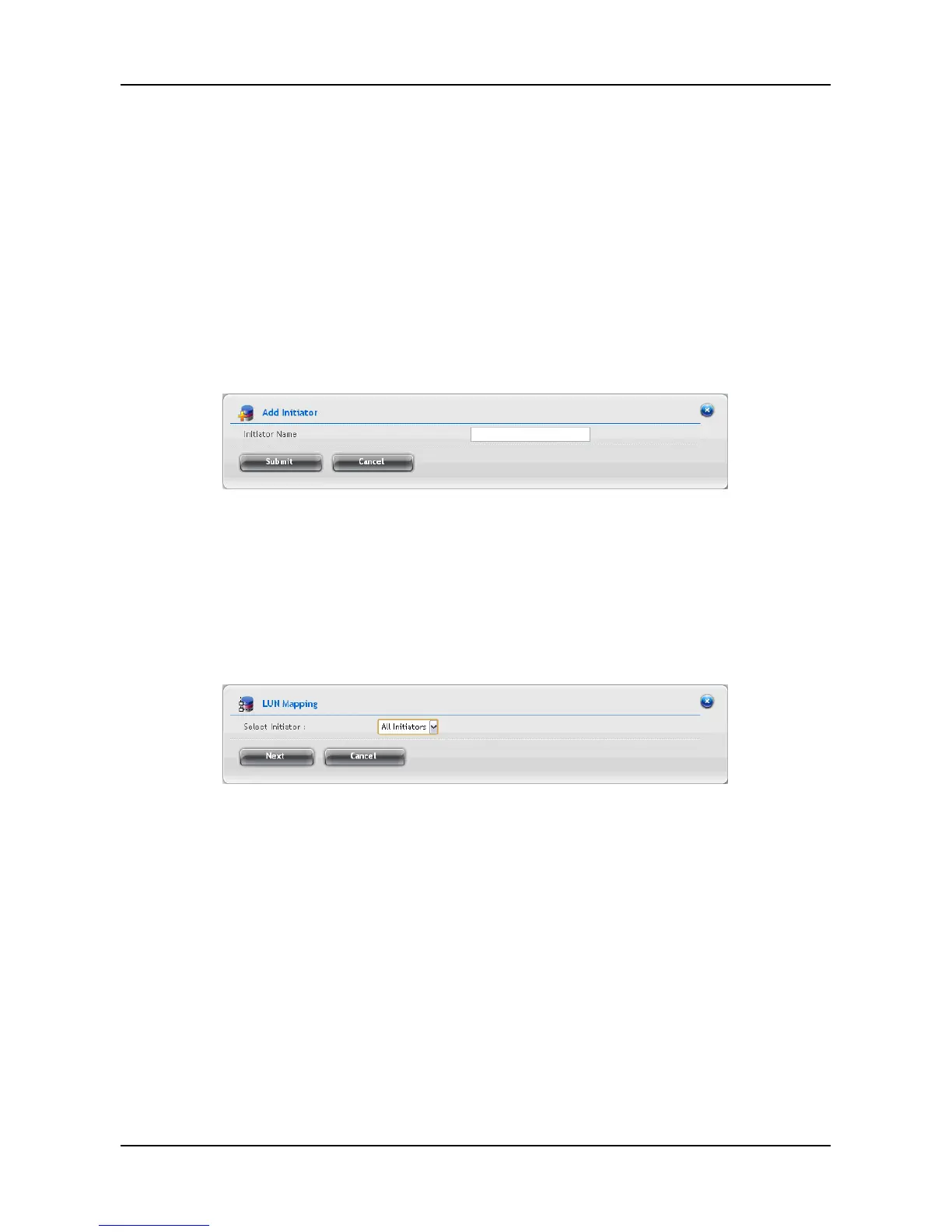

To add initiator:
1. Click AdminTool tab > LUNMap.
2. Click the Add Initiator button.
3. Enter a name in the Initiator Name field and click the Submit button. The
initiator will be added in the LUNMap list.
To define the LUN Mapping
1. Click AdminTool tab > LUNMap.
2. Click the LUN Mapping button.
3. Select the initiator you want from the dropdown menu and click the Next
button.
4. In the LUN Mapping field, indicate the arrays you wish to make visible by
putting a unique number in the LUN field.
5. When done, click the Assign button.
6. Click the Submit button.
7. Check the Enable LUN Masking option to enable the LUN Mapping and
Masking function of the NAS.
62
