Press lever to release lock (front right)
2. Secure the rails to the rack posts. Make sure the rack rails are properly oriented in the rack.
3. To set the rails into the rack posts and secure the rails, follow these steps:
a. Press the spring lock then insert the studs into the selected square holes on the rack post.
b. Press the spring lock on the other end of the rail and insert the studs into the selected
mounting hole on the rack post. If necessary, extend the rail to reach the post.
c. Use the rail screws and washers to anchor the rack rail to the post.
d. Make sure the rack rail is aligned, secure, stable and in the correct place.
e. Perform steps a through c above for the other rail.
f. Make sure the rack rails are aligned, secure, stable and in place.

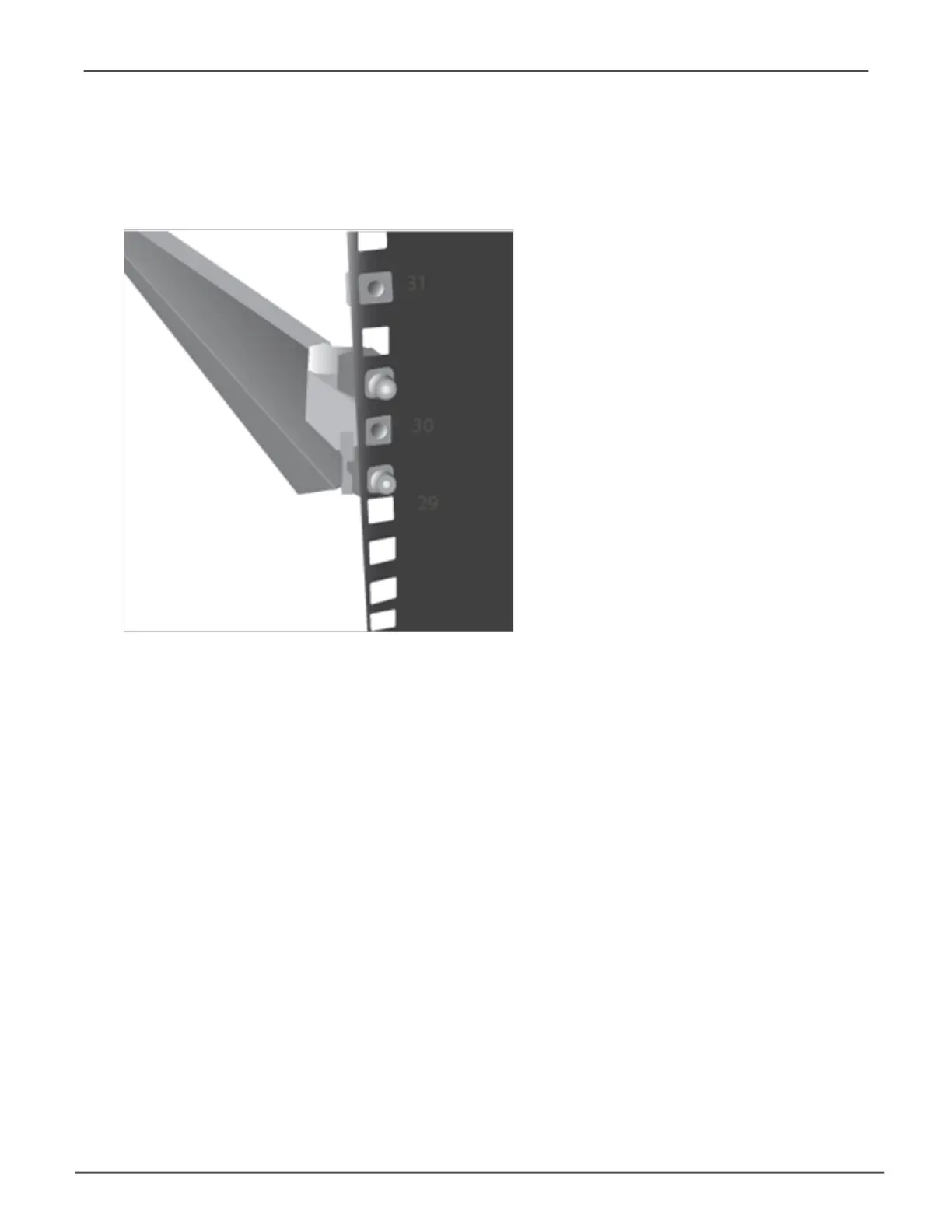

See gure on next page.
14
Vess A Class NVR Storage Appliance Promise Technology
