SECTION 5—WHEELCHAIR OPERATION
Part No. 1125085 35 Pronto
®
M50
™
, M51
™
and M61
™
with SureStep
™
Information Gauge Display
Located on the front of the joystick housing, it provides the following information to the
user on the status of the wheelchair -
1. Power is On.
2. True state-of-battery-charge, including notification of when the battery requires
charging:
A. GREEN LED is lit, indicating well charged batteries.
B. Only AMBER LEDs are lit, indicating batteries are moderately charged. Recharge
batteries before taking a long trip.
C. Only RED LED is lit, indicating batteries are running out of charge. Recharge
batteries as soon as possible.
The Information Gauge display also serves as a system diagnostic device when a fault is
detected by the control module. A specific number of flashes of the LEDs indicate the type
of fault detected. Refer to the following table of the diagnostic indications of the
wheelchair status.

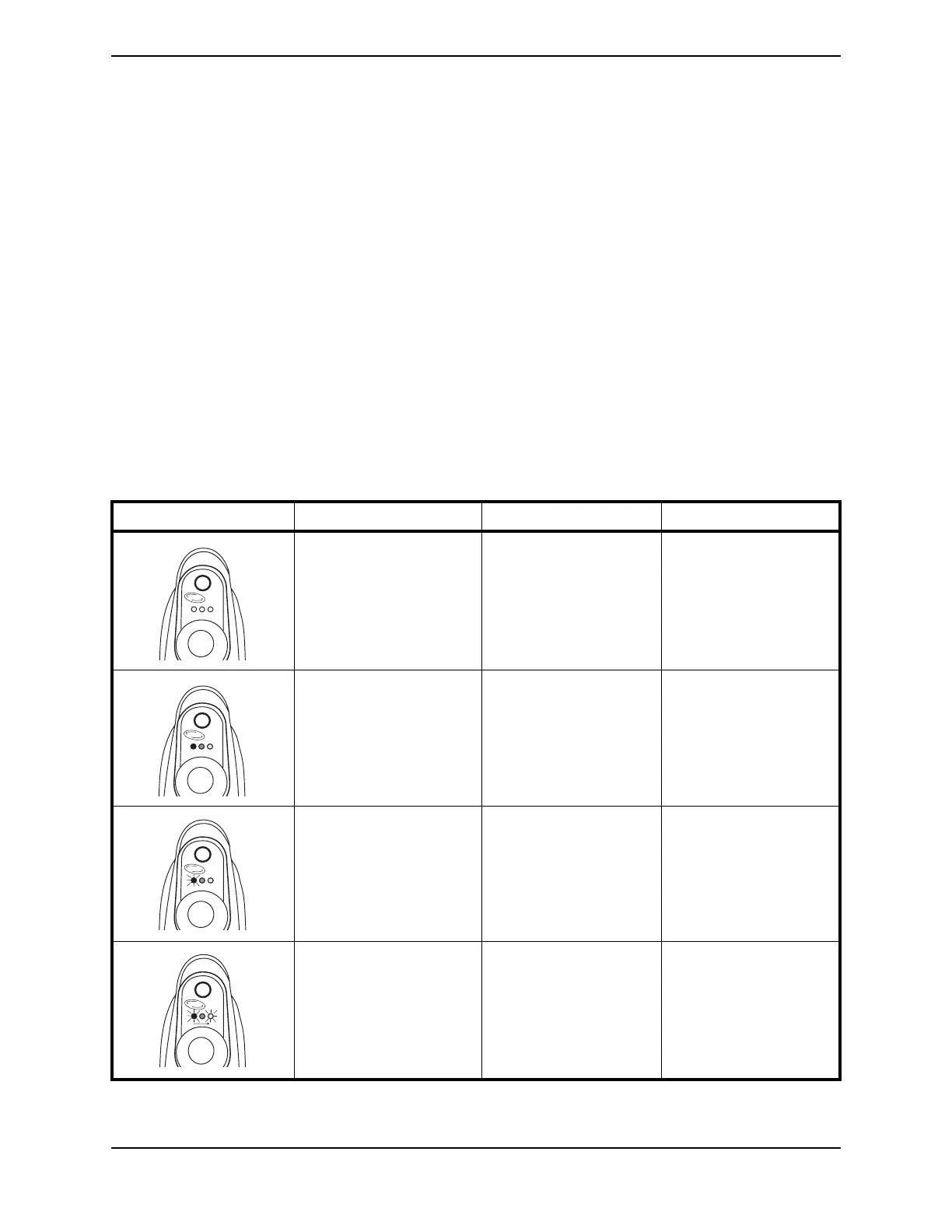

DISPLAY DESCRIPTION DEFINITION COMMENTS
All three (3) LEDs are off. Power is Off.
All three (3) LEDs are on. Power is On. Fewer than three (3)
LEDs on implies reduced
battery charge.
RED LED is flashing. Battery charge is low. The batteries should be
charged as soon as possi-
ble.
Left to Right “chase” alter-
nating with steady display.
Joystick is in program-
ming, inhibit and/or charg-
ing mode.
The steady LEDs indicate
the current state of the
battery charge.
INVACARE
INVACARE
INVACARE
INVACARE
