SECTION 7—SEAT
Pronto
®
M50
™
, M51
™
and M61
™
with SureStep
™
44 Part No. 1125085
Removing/Installing the Seat Assembly
NOTE: For this procedure, refer to FIGURE 7.4.
Removing
1. Disconnect the joystick. Refer to Disconnecting/Connecting the Joystick on page 78.
2. Fold down the seat back.
3. Pull the seat lever up and lift the seat assembly up and away from the seat post.
Installing
1. Align the seat pivot with the seat post
2. Pull the seat lever up and lower the seat assembly on the seat post.
NOTE: If necessary, slightly twist seat assembly back and forth to lock it in place.
3. Release the seat lever.
4. Pull the seat assembly up to ensure that it is locked in place.
5. Connect the joystick. Refer to Disconnecting/Connecting the Joystick on page 78.

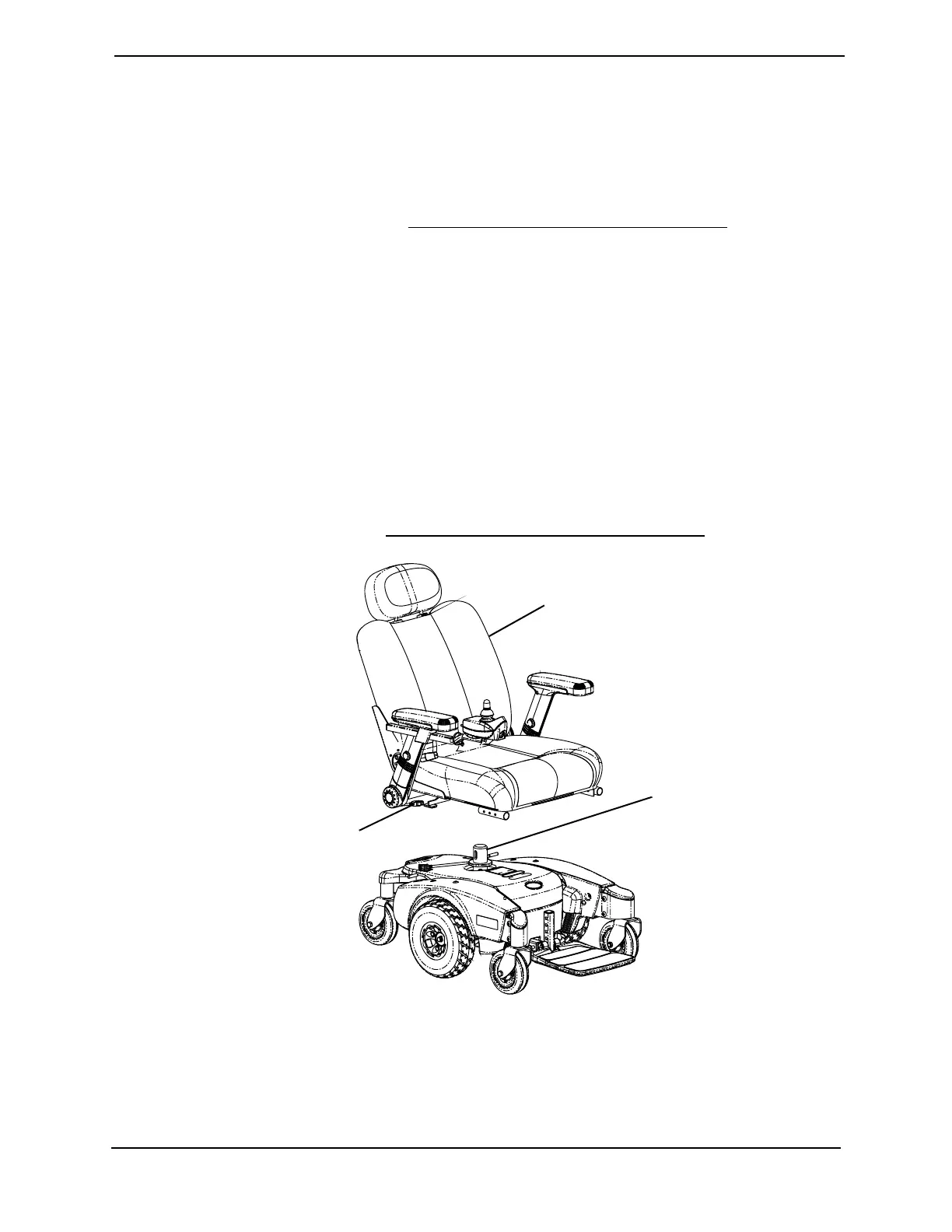

FIGURE 7.4 Removing/Installing the Seat Assembly
Seat
Assembly
Seat Lever
Seat Post
NOTE: Office style van seat
is shown. Standard van seat
installs the same way.
