SECTION 12—ELECTRONICS
Pronto
®
M50
™
, M51
™
and M61
™
with SureStep
™
78 Part No. 1125085
Disconnecting/Connecting the Joystick
NOTE: For this procedure, refer to FIGURE 12.4.
Disconnecting
1. Hold the light GREY collar portion of the joystick connector with one hand and the
controller connector on the wheelchair in the other and disconnect them by pulling
them apart.
Connecting
WARNING
The joystick connector and controller connector fit together in one way only; DO
NOT force them together.
1. Hold the light GREY collar portion of the joystick connector with one hand and the
controller connector on the wheelchair in the other and align them.
2. Lightly push to engage the joystick connector and the controller connector.

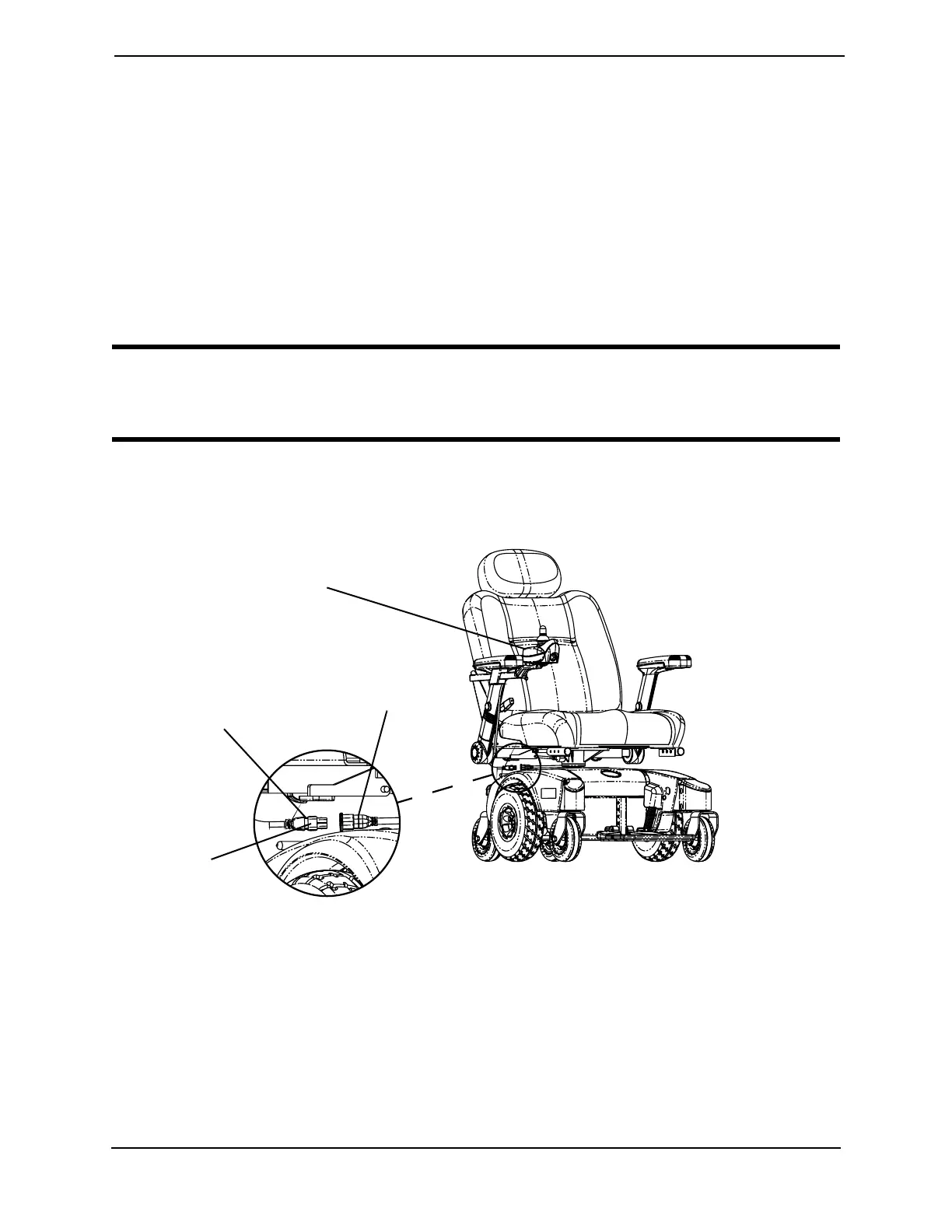

FIGURE 12.4 Disconnecting/Connecting the Joystick
Light GREY
Collar
Controller
Connector
Joystick
Connector
Joystick
NOTE: Office style van seat is shown. Standard van seat
operates the same way.
