SECTION 7—SEAT
Pronto
®
M50
™
, M51
™
and M61
™
with SureStep
™
42 Part No. 1125085
SECTION 7—SEAT
 WARNING
After ANY adjustments, repair or service and BEFORE use, make sure that all
attaching hardware is tightened securely - otherwise injury or damage may result.
Before performing any maintenance, adjustment or service verify that On/Off
switch on the joystick is in the Off position.
Adjusting the Back Angle
Semi-Recline Back Angle
NOTE: For this procedure, refer to FIGURE 7.1.
1. Lift up on the release handle and adjust seat to desired angle.
2. Let go of the release handle to lock the back in position.

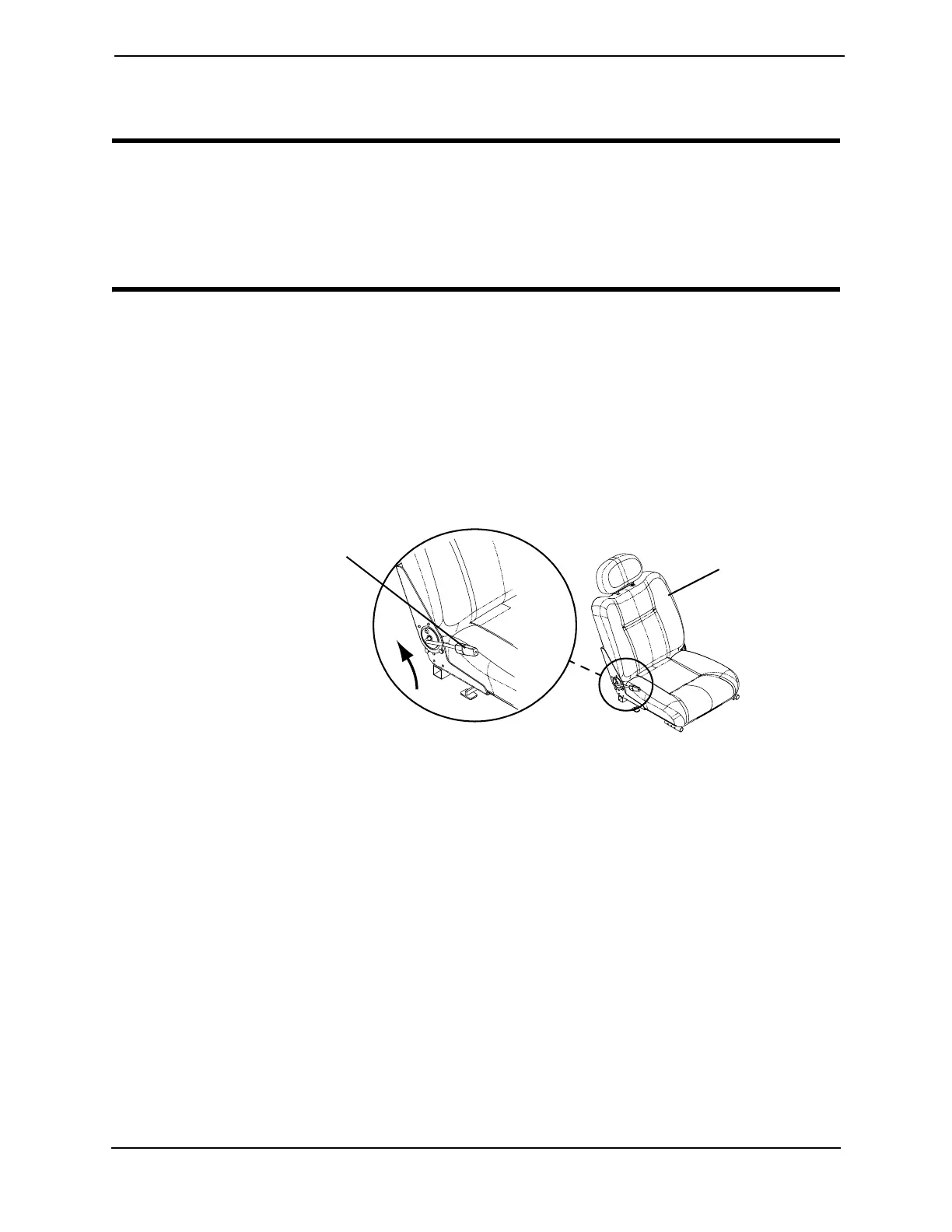

FIGURE 7.1 Adjusting the Back Angle - Semi-Recline Back Angle
Fold Down Back Angle
NOTE: For this procedure, refer to FIGURE 7.2.
1. Remove the two (2) shoulder bolts and locknuts from the seat hinges on either side of
the seat.
2. Select one (1) of the four (4) back angle positions as shown in Detail “A” of FIGURE 7.2.
3. Re-install and tighten the two (2) shoulder bolts and locknuts through the desired
back angle setting on each seat hinge.
NOTE: Both seat hinges should be set to the same back angle setting.
Release Handle
NOTE: Office style van seat
is shown. Standard van seat
operates the same way.
Office Style
Van Seat
