Pronto M50 - Adjusting the Headrest (Semi-Recline Only)

SECTION 7—SEAT
Part No. 1125085 43 Pronto
®
M50
™
, M51
™
and M61
™
with SureStep
™

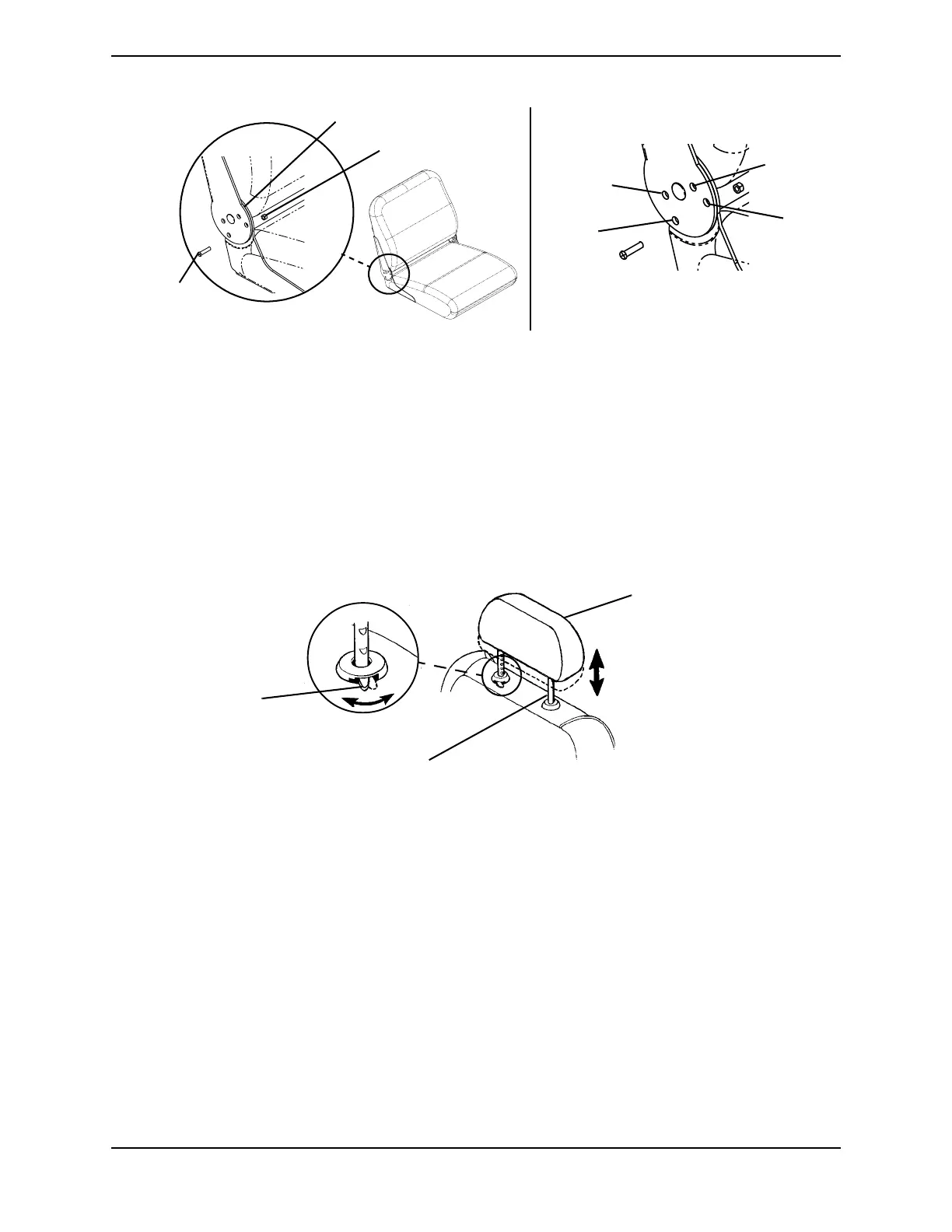

FIGURE 7.2 Adjusting the Back Angle - Fold Down Back Angle
Adjusting the Headrest (Semi-Recline Only)
NOTE: For this procedure, refer to FIGURE 7.3.
1. To raise the headrest, lift the headrest up to the desired position.
2. To lower the headrest, push the release tab towards the front of the wheelchair. Lower
the headrest to the desired position.
FIGURE 7.3 Adjusting the Headrest (Semi-Recline Only)
Seat Hinge
Locknut
Shoulder
Bolt
Detail “A”
100°
95°
110°
105°
Headrest
Release Tab
Headrest
Tube
