Adjusting the Seat Height
NOTE: For this procedure, refer to FIGURE 7.6.
NOTE: The seat can be adjusted to five (5) height positions in ½-inch increments.
1. Remove the seat. Refer to Removing/Installing the Seat Assembly on page 44.
2. Remove the mounting screw that secures the seat post to the support tube.
WARNING
Refer to the table in FIGURE 7.7 for proper seat post mounting positions. For users
over 220 lbs - Mounting holes 3, 4 and 5 (in FIGURE 7.6) MUST be used with the
seat in the 1-inch back position (FIGURE 7.7). Refer to Adjusting Seat Position on
Seat Base on page 47.
3. Adjust the seat post to desired mounting position.
4. Reinstall mounting screw. Securely tighten.
5. Reinstall the seat. Refer to Removing/Installing the Seat Assembly on page 44.

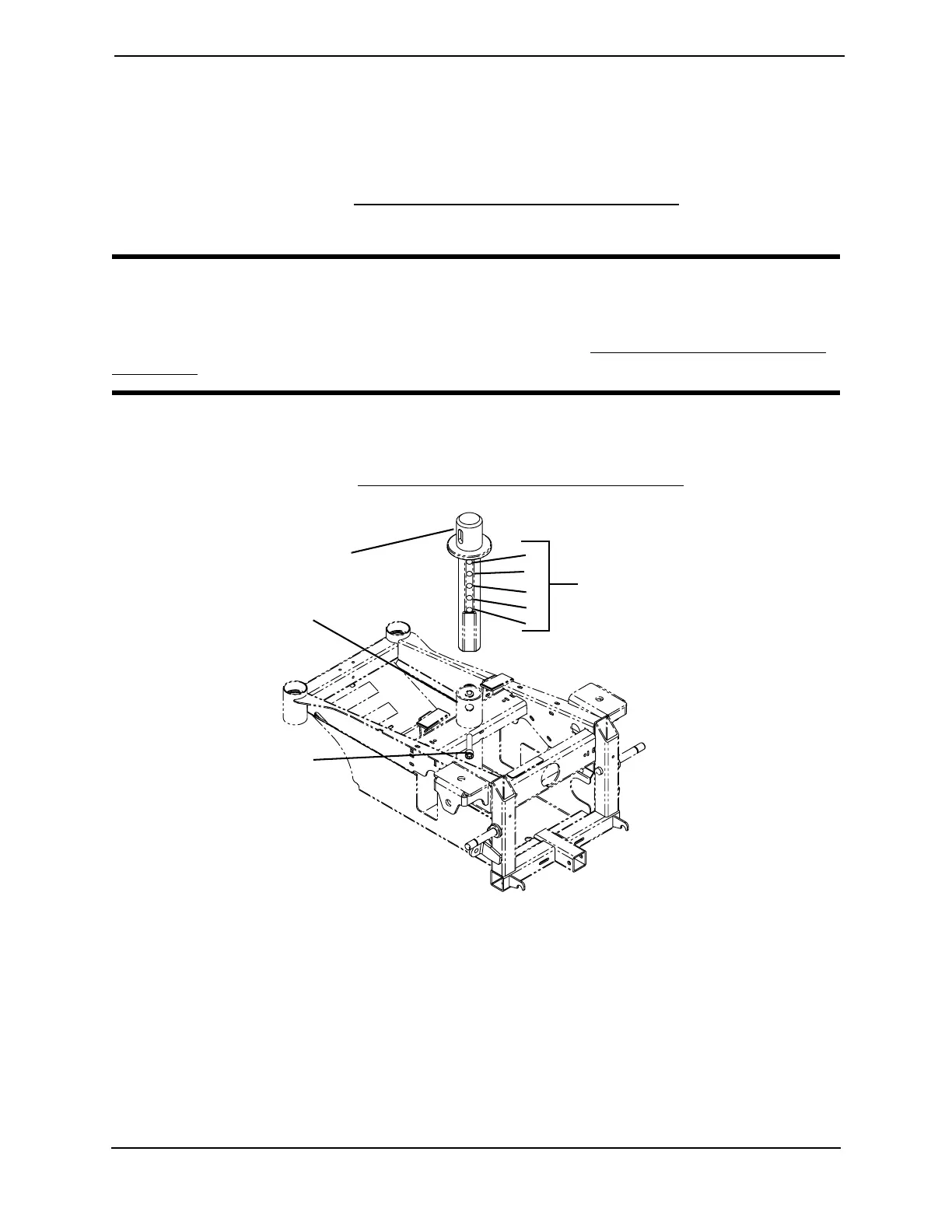

FIGURE 7.6 Adjusting the Seat Height
Mounting Screw
Seat Post
Support Tube
Mounting Positions
NOTE: Batteries and shrouds
not shown for clarity.
1
2
3
4
5
