Pronto M50 - Adjusting Height; Standard Arms Only; Office Style Arms Only

SECTION 6—ARMS
Part No. 1125085 41 Pronto
®
M50
™
, M51
™
and M61
™
with SureStep
™
Adjusting Height
Standard Arms Only
NOTE: For this procedure, refer to Detail “A” of FIGURE 6.4.
1. Remove the socket screw that secures the armrest to the seat frame assembly.
2. Adjust the armrest to one (1) of four (4) positions.
3. Reinstall the socket screw that secures the armrest to the seat frame assembly and
tighten securely.
Office Style Arms Only
NOTE: For this procedure, refer to Detail “A” of FIGURE 6.4.
1. Push in the height adjustment button and adjust the arm up or down to desired height.
2. Release the height adjustment button to lock the arm in the new height.
3. Repeat STEPS 1 and 2 for the other arm.

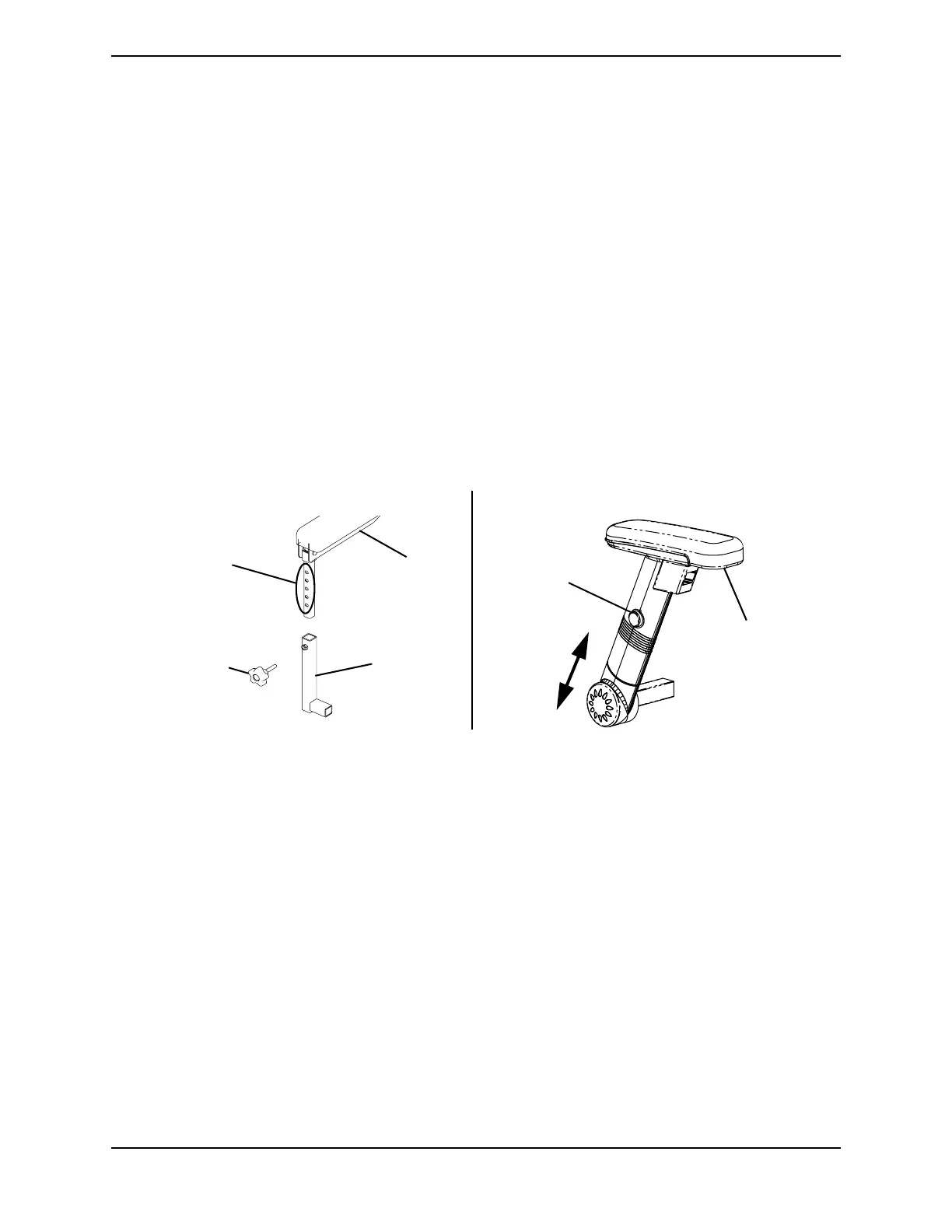

FIGURE 6.4 Adjusting Height
Detail “B” - Office Style ArmsDetail “A” - Standard Arms
Armrest
Height
Adjustment
Holes
Arm Frame
Assembly
Lock Knob
Height
Adjustment
Button
Adjustable
Width Arm
