SPJ+ w/ACC Joystick Switches and Indicators
NOTE: For this procedure, refer to FIGURE 5.10.
NOTE: The SPJ+ w/ACC joystick is used on M61 wheelchairs only.

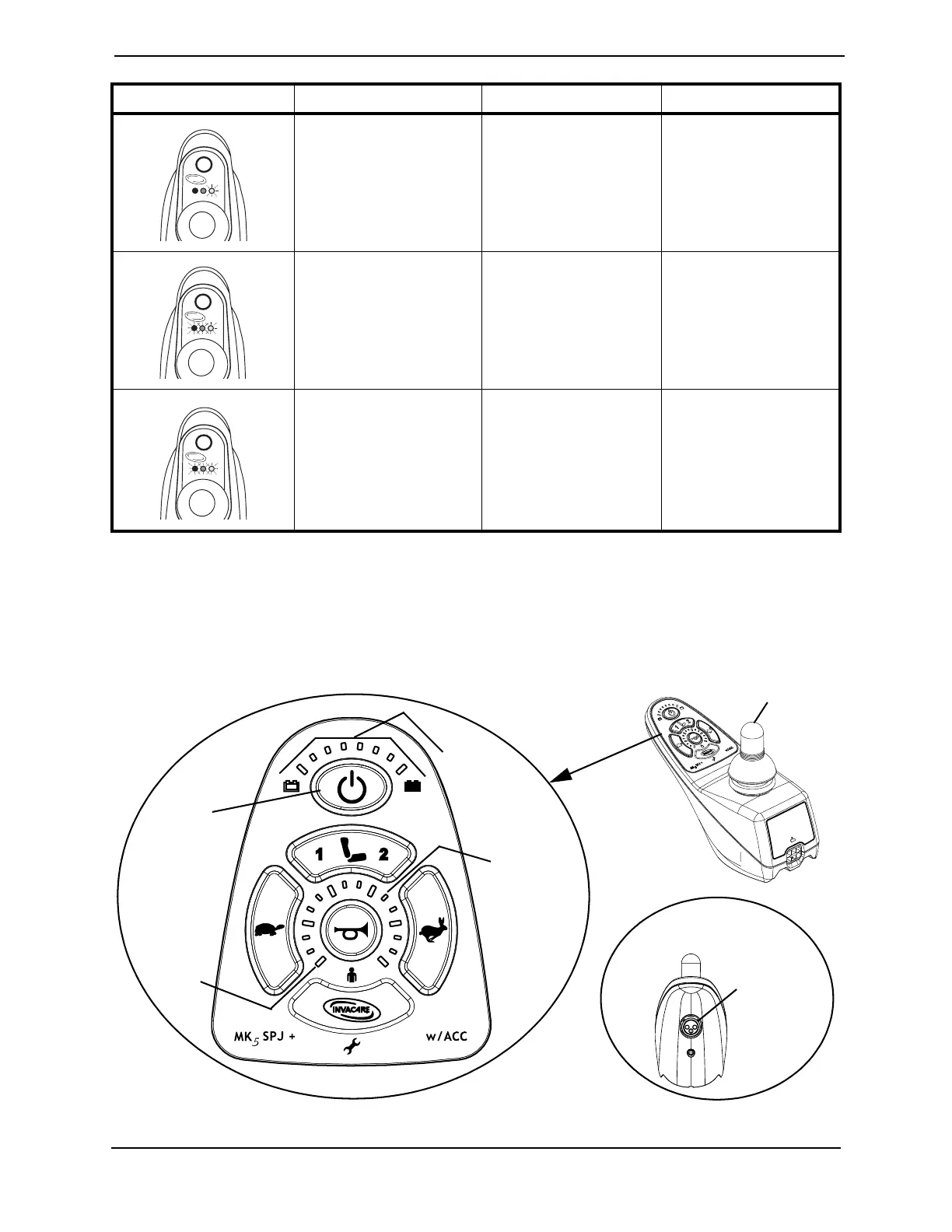

FIGURE 5.10 SPJ+ w/ACC Joystick Switches and Indicators
GREEN LED is flashing. Joystick is in Speed Limit
mode.
The current state of bat-
tery charge will be dis-
played at the same time.
All LEDs are flashing slowly. Joystick has detected Out-
of-Neutral-at-Power-Up
mode.
Release the joystick back
to Neutral.
All LEDs are flashing
quickly.
Joystick has detected a
fault.
Joystick uses Flash codes
to indicate faults.
DISPLAY DESCRIPTION DEFINITION COMMENTS
INVACARE
INVACARE
INVACARE
On/Off
Button
DETAIL “A” -
FRONT VIEW
Charger/
Programming
Input
Speedometer
Joystick
GREEN
LED
Information
Gauge
Display
