SECTION 8—FOOTBOARD ASSEMBLY
Pronto
®
M50
™
, M51
™
and M61
™
with SureStep
™
52 Part No. 1125085
Depth
NOTE: For this procedure, refer to FIGURE 8.3.
1. Remove the quick release pin that secures the footboard assembly to the wheelchair
frame.
WARNING
Make sure the detent balls are engaged with the outer edge of the tube - otherwise,
injury and/or damage may result.
2. Adjust footboard to one (1) of three (3) mounting positions.
3. Install the quick release pin. Make sure the detent balls are engaged with the outer
edge of the tube (Detail “A” of FIGURE 8.3).

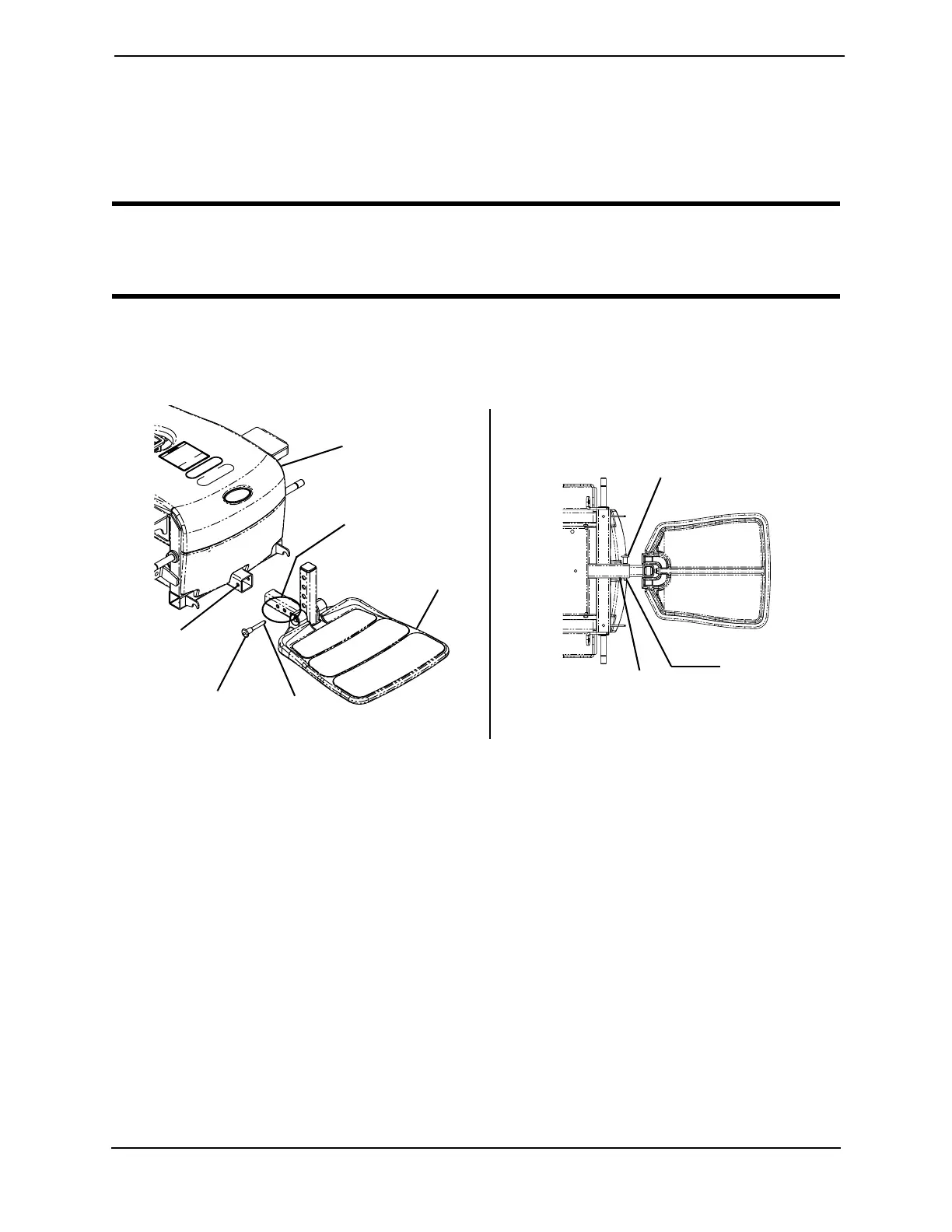

FIGURE 8.3 Adjusting the Footboard Assembly - Depth
Detail “A” - Bottom View of
Footboard
Quick
Release Pin
Detent
Ball
Footboard
Assembly
Mounting
Hole
Top Shroud
Quick Release Pin
Outer Edge
of Tube
Detent Balls
Three (3) Depth
Adjustment Holes
