SECTION 7—SEAT
Part No. 1125085 45 Pronto
®
M50
™
, M51
™
and M61
™
with SureStep
™
Adjusting Seat Depth
NOTE: For this procedure, refer to FIGURE 7.5.
1. Remove the seat. Refer to Removing/Installing the Seat Assembly on page 44.
2. Remove the seat base from the seat assembly. Refer to Adjusting Seat Position on Seat
Base on page 47.
3. Remove the six (6) mounting screws located under the seat that secure the seat back
assembly in place.
4. Adjust seat back assembly to desired position and reinstall the six (6) mounting
screws. Securely tighten.
5. Reinstall the seat base onto the seat assembly. Refer to Adjusting Seat Position on Seat
Base on page 47.
6. Reinstall the seat. Refer to Removing/Installing the Seat Assembly
on page 44.

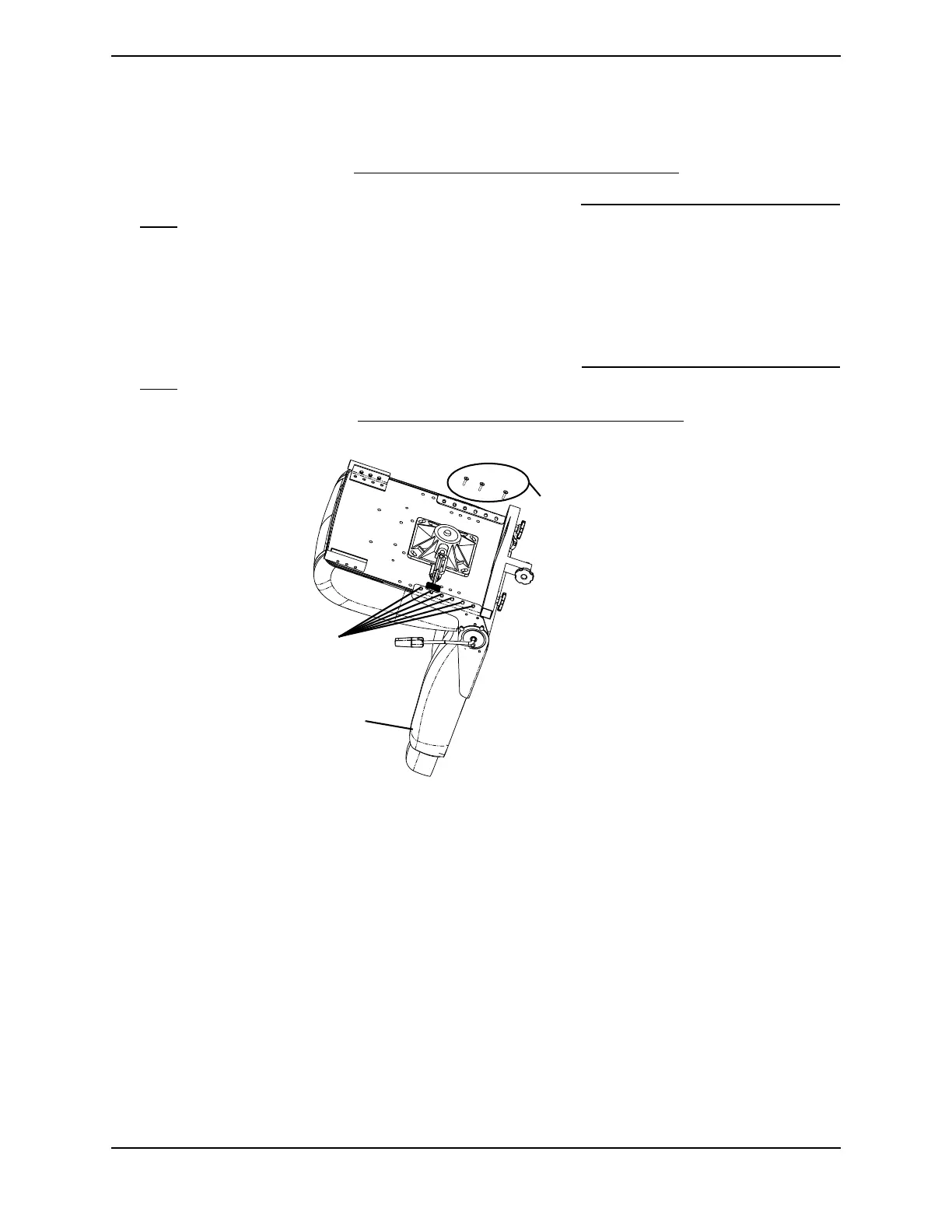

FIGURE 7.5 Adjusting Seat Depth
Mounting
Holes
Mounting
Screws
Seat
Assembly
NOTE: Office style van seat is shown. Standard van seat adjusts the same way.
