SECTION 8—FOOTBOARD ASSEMBLY
Part No. 1125085 51 Pronto
®
M50
™
, M51
™
and M61
™
with SureStep
™

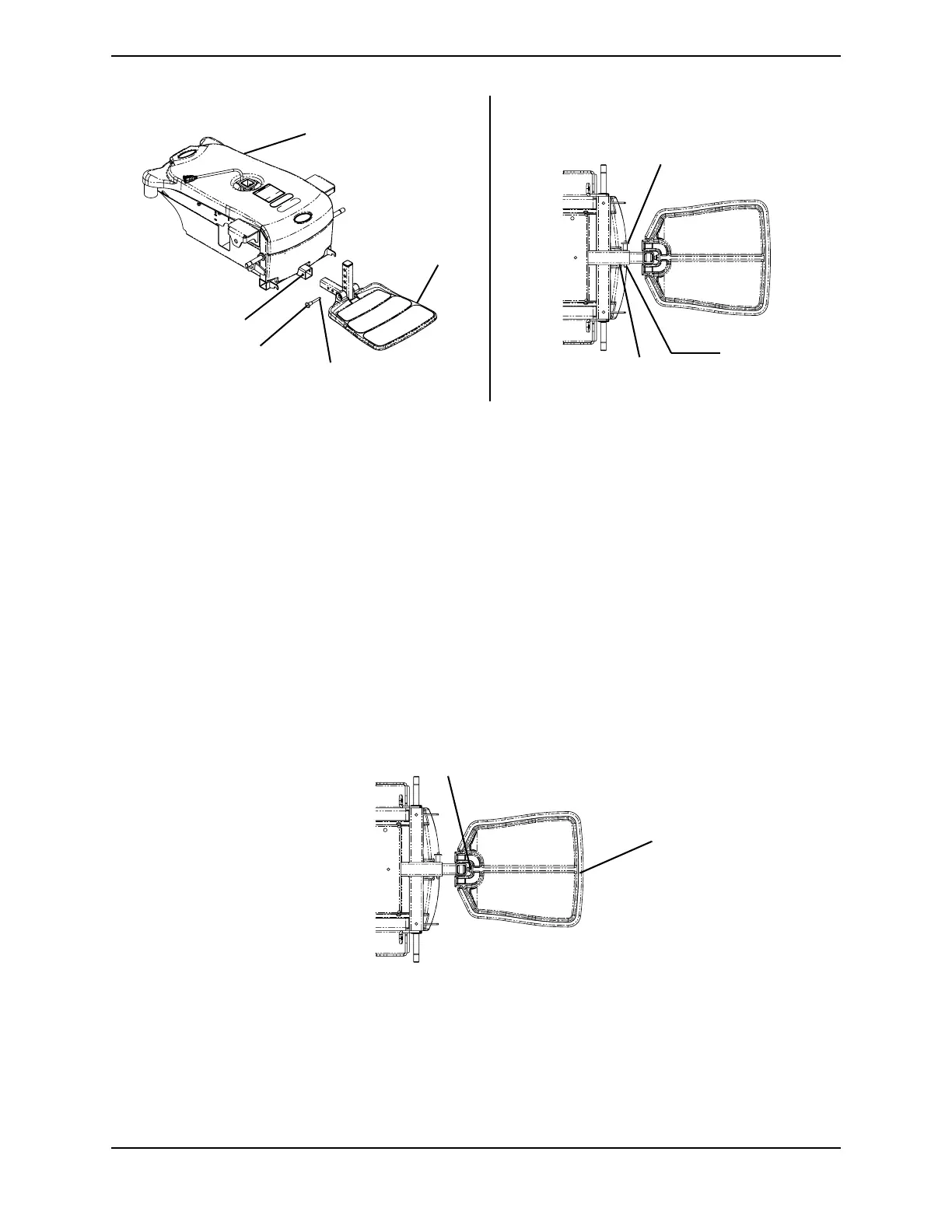

FIGURE 8.1 Removing/Installing the Footboard Assembly
Adjusting the Footboard Assembly
Angle
NOTE: For this procedure, refer to FIGURE 8.2.
1. Loosen the jam nut and set screw located underneath on the backside of the footplate.
2. Adjust the set screw in or out to obtain the desired footboard assembly angle.
3. Thread the jam nut and washer inward until it is flush with the footboard bracket.
4. Securely tighten the jam nut and washer to secure the mounting screw in place.
FIGURE 8.2 Adjusting the Footboard Assembly - Angle
Detail “A” - Bottom View of
Footboard
Quick
Release Pin
Detent
Ball
Footboard
Assembly
Mounting Hole
Top Shroud
Quick Release Pin
Outer Edge
of Tube
Detent Balls
Set Screw, Washer
and Jam Nut
Footboard
Assembly
