SECTION 7—SEAT
Part No. 1125085 49 Pronto
®
M50
™
, M51
™
and M61
™
with SureStep
™
Replacing the Seat Positioning Strap
WARNING
ALWAYS wear your seat positioning strap.
The seat positioning strap is a positioning belt ONLY. It is not designed for use as a
safety device withstanding high stress loads such as auto or aircraft safety belts. If
signs of wear appear, belt must be replaced immediately.
NOTE: For this procedure, refer to FIGURE 7.8.
1. Remove the two (2) mounting screws that secure the seat positioning straps to the seat
frame.
2. Remove the two (2) halves of the seat positioning strap from the rear seat frame.
3. Reposition the two (2) new seat positioning strap halves underneath seat rails.
4. Reinstall the two (2) mounting screws that secure the seat positioning straps to the seat
frame. Securely tighten.

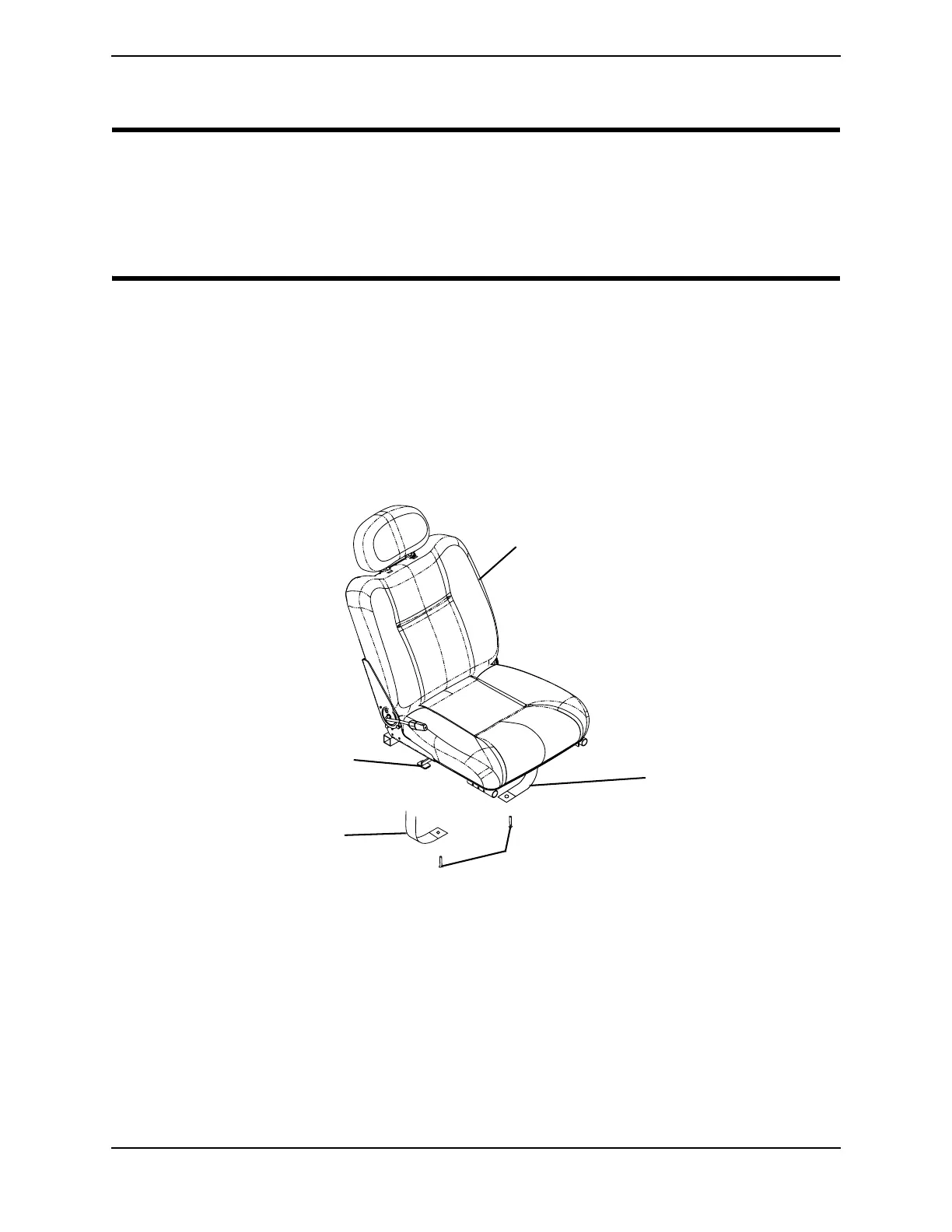

FIGURE 7.8 Replacing the Seat Positioning Strap
Seat Positioning
Strap
Seat Positioning
Strap
Mounting Screws
Seat
Seat Lever
NOTE: Office style van seat is shown. Standard van seat adjusts the same way.
