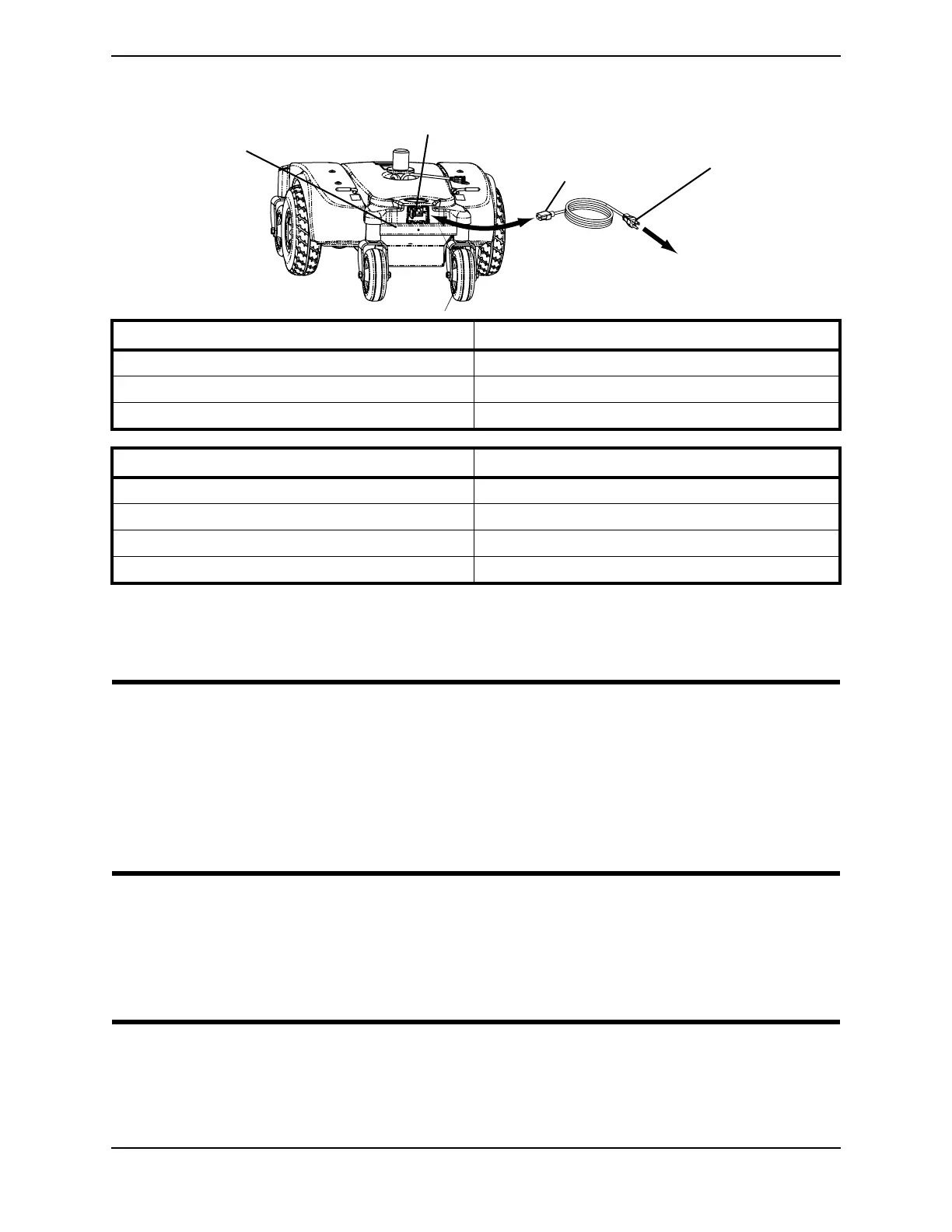

FIGURE 11.5 On-Board Battery Charger
Charging Using An Independent Charger Plugged Into The Joystick
 WARNING
READ and CAREFULLY follow the individual instructions for each charger (supplied
or purchased). If charging instructions are not supplied, consult a qualified
technician for proper procedures.
DO NOT attempt to recharge the batteries using BOTH the on-board battery
charger AND an independent battery charger (plugged into the joystick charger
port) at the SAME time. Doing so will reduce the life of the batteries.
 CAUTION
Only use a charger approved by Invacare when charging through the joystick on this
wheelchair model.
DO NOT use an independent charger with an output rating of over 8A (Amps).
Otherwise, damage may occur.
ON/OFF INDICATOR STATUS
SOLID RED Charger On
“BLINKING” RED Abnormal
LED “OFF” Charger Off
CHARGING INDICATOR STATUS
YELLOW Charging
“BLINKING” GREEN Output not connected
SOLID GREEN Fully charged
LED “OFF” Charger disconnected
Charger
(Hidden from View)
AC Receptacle
on Charger
Male Connector
on AC Power
Cord (Connects to
Wall Outlet)
Female Connector on
AC Power Cord
(Connects to AC
Receptacle on Charger)
To Wall
Outlet
