SECTION 9—FRONT RIGGINGS
Part No. 1125085 57 Pronto
®
M50
™
, M51
™
and M61
™
with SureStep
™
4. Using the two (2) socket bolts and locknuts, secure the telescoping front rigging
support to the seat frame as shown in FIGURE 9.6.
5. If necessary, repeat STEPS 2-4 on remaining telescoping front rigging support.
6. Reinstall the seat. Refer to Removing/Installing the Seat Assembly on page 44.

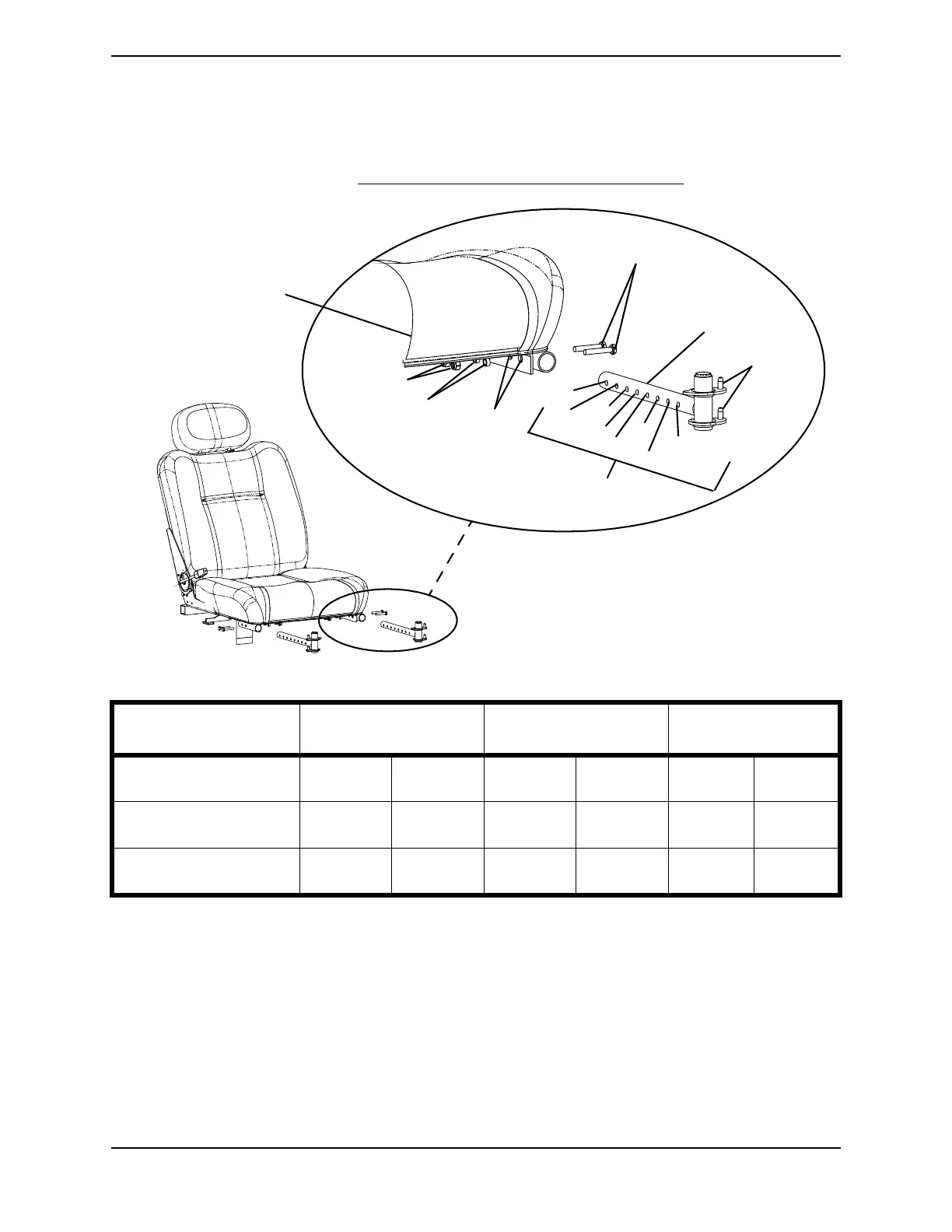

FIGURE 9.6 Adjusting/Replacing Telescoping Front Rigging Supports - Office Style Seat
FRONT RIGGING
MODEL
STANDARD
POSITION
1 INCH OUT 2 INCHES OUT
18 inches
wide
20 inches
wide
18 inches
wide
20 inches
wide
18 inches
wide
20 inches
wide
PHW93
Holes
4 and 5
Holes
4 and 5
Holes
5 and 6
Holes
5 and 6
Holes
6 and 7
Holes
6 and 7
PH904A and PHAL4A
Holes
3 and 4
Holes
3 and 4
Holes
4 and 5
Holes
4 and 5
Holes
5 and 6
Holes
5 and 6
Spacers
Telescoping Front
Rigging Support
Mounting Holes
Locknuts
Mounting
Bolts
Seat
Inner
Mounting
Holes
2
Not Used
4
3
5
7
6
Hinge
Pins
8
