SECTION 9—FRONT RIGGINGS
Part No. 1125085 59 Pronto
®
M50
™
, M51
™
and M61
™
with SureStep
™

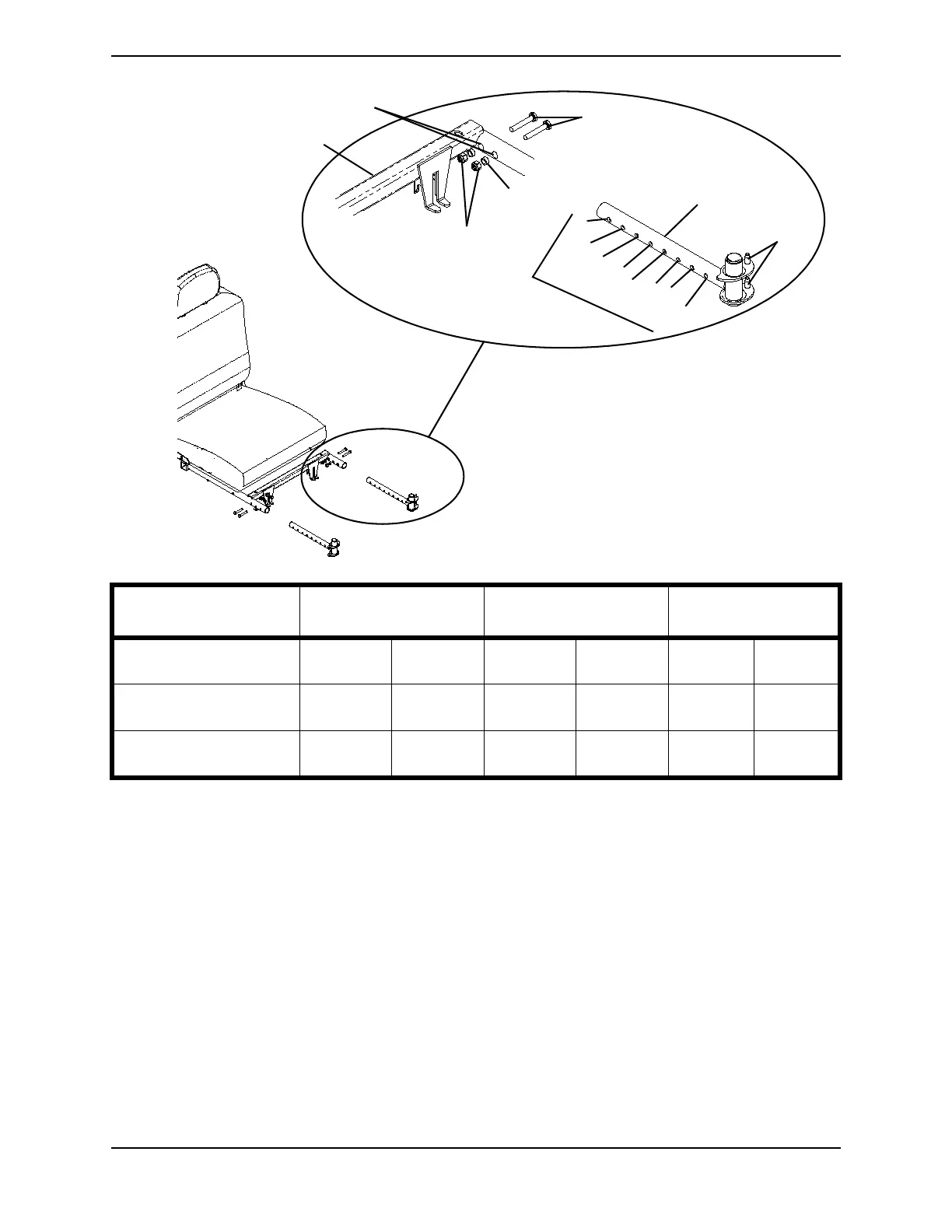

FIGURE 9.7 Adjusting/Replacing Telescoping Front Rigging Supports - Standard Seat
FRONT RIGGING
MODEL
STANDARD
POSITION
1 INCH OUT 2 INCHES OUT
18 inches
wide
20 inches
wide
18 inches
wide
20 inches
wide
18 inches
wide
20 inches
wide
PHW93
Holes
4 and 5
Holes
4 and 5
Holes
5 and 6
Holes
5 and 6
Holes
6 and 7
Holes
6 and 7
PH904A and PHAL4A
Holes
3 and 4
Holes
3 and 4
Holes
4 and 5
Holes
4 and 5
Holes
5 and 6
Holes
5 and 6
Spacer
Telescoping Front
Rigging Support
Mounting Holes
Locknuts
Mounting Bolts
Seat Frame
Inner Mounting Holes
2
Not Used
4
3
5
7
8
6
Hinge
Pins
8
