SECTION 11—BATTERIES
Part No. 1125085 69 Pronto
®
M50
™
, M51
™
and M61
™
with SureStep
™
8. Position the batteries into the wheelchair. Refer to Removing/Installing Batteries from/
into Battery Tray on page 65.
NOTE: New Battery(ies) MUST be fully charged BEFORE using, otherwise the life of the
battery(ies) will be reduced.
9. If necessary, charge the battery(ies). Refer to Charging Batteries on page 70.

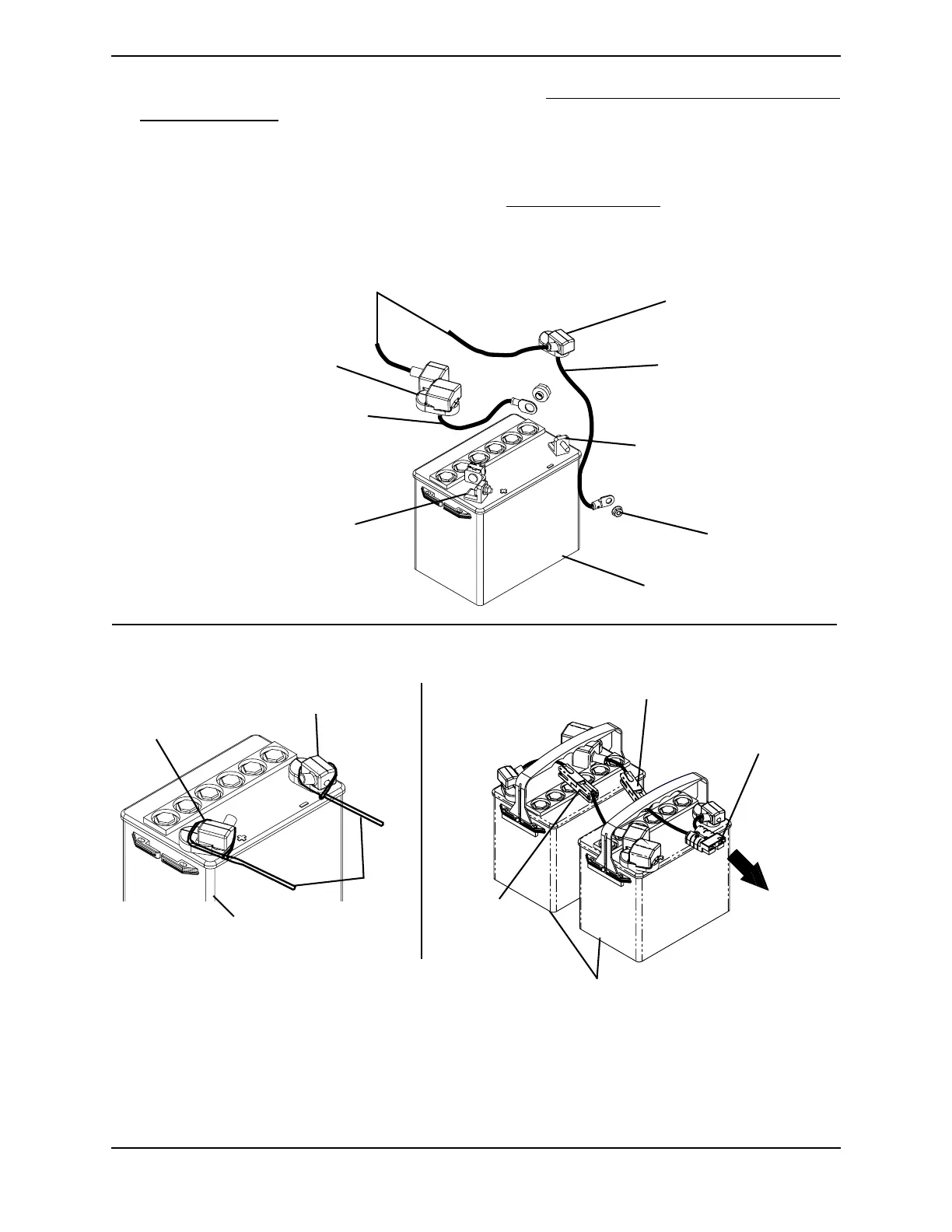

FIGURE 11.4 Connecting/Disconnecting Battery Cables
To BLACK and RED Connectors
RED Battery Cable
POSITIVE (+) Battery
Terminal/Post
BLACK Battery Cable
NEGATIVE (-) Battery
Terminal Cap
NEGATIVE (-) Battery
Terminal/Post
Locknut
U1 Battery
POSITIVE (+) Battery
Terminal Cap
DETAIL “A”
DETAIL “B”
NOTE: Handles on batteries
removed for clarity.
POSITIVE
(+) Battery
Terminal
NEGATIVE (-) Battery
Terminal
Tie-
wraps
U1 Battery
U1 Batteries
BLACK
Connectors
BLACK
Connector to
Controller
Plug into
controller
NOTE: Handles on batteries removed for clarity.
RED Connectors
