SECTION 12—ELECTRONICS
Pronto
®
M50
™
, M51
™
and M61
™
with SureStep
™
80 Part No. 1125085
NOTE: Quad-links work the best when the joystick is pushed outward on the inside (medial)
surface of the joystick, near the armrest pad.
2. Push the joystick outward and rearward until the quad-link moves through its
complete range and clicks into its fully retracted position.
3. To return the joystick to the normal extended position, push outward on the inside
surface of the joystick until the quad-link clicks free.
4. Push the joystick forward and inward until the quad-link moves through its complete
range and clicks into its fully extended position.

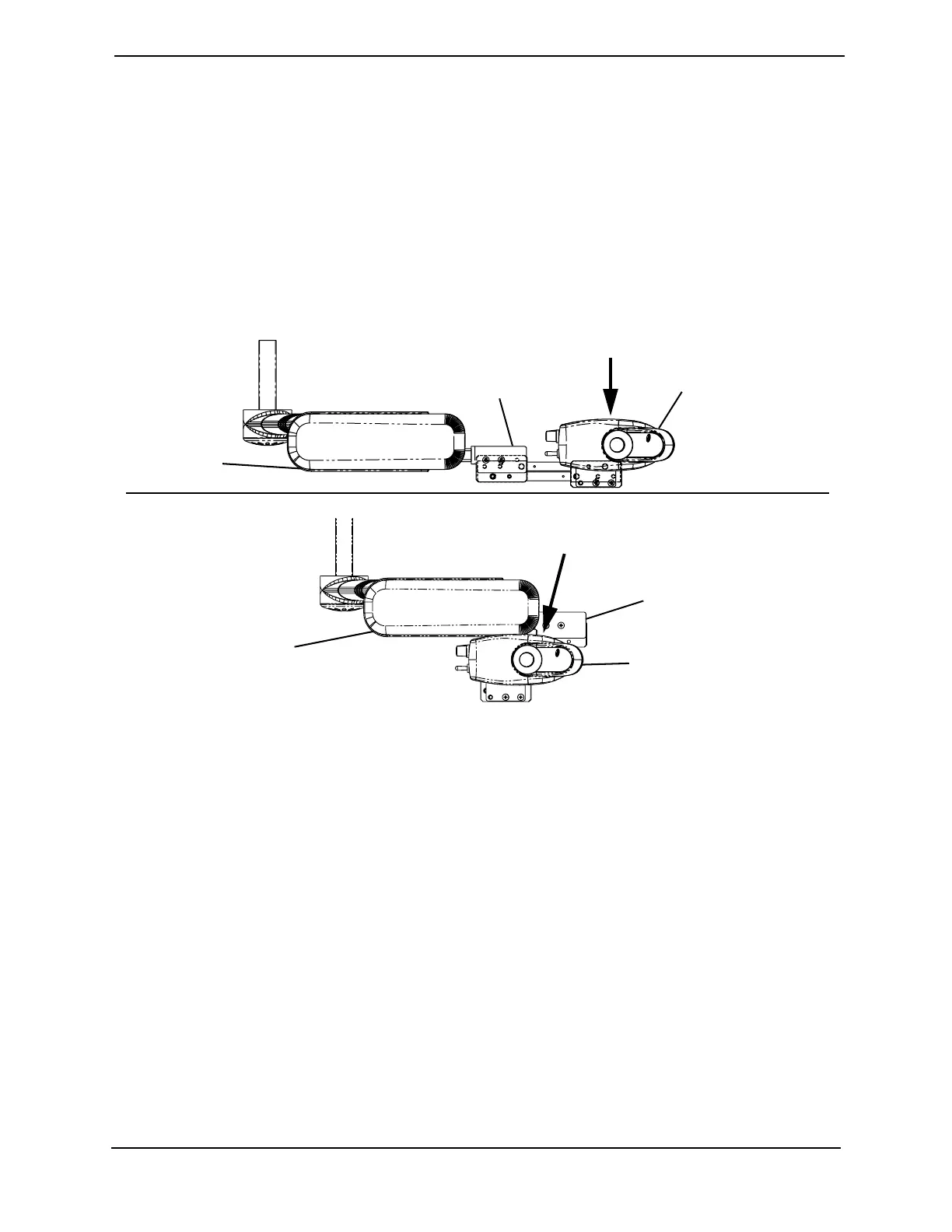

FIGURE 12.6 Operating the Quad-Link Retractable Mount
Arm
Quad Link
Retractable
Mount
Joystick
Detail “A” - Quad Link Mount in Extended Position
Detail “B” - Quad Link Mount in Retracted Position
Top View
Push Here
Push Here
Top View
Arm
Quad Link
Retractable
Mount
Joystick
