Reference MVI56E-MNETC/MNETCXT ControlLogix Platform
User Manual Modbus TCP/IP Client Enhanced Communication Module - Client/Server
Page 134 of 172 ProSoft Technology, Inc.
September 20, 2018
5.3 Ethernet Cable Specifications
The recommended cable is Category 5 or better. A Category 5 cable has four
twisted pairs of wires, which are color-coded and cannot be swapped. The
module uses only two of the four pairs.
The Ethernet port or ports on the module are Auto-Sensing. You can use either a
standard Ethernet straight-through cable or a crossover cable when connecting
the module to an Ethernet hub, a 10/100 Base-T Ethernet switch, or directly to a
PC. The module detects the cable type and uses the appropriate pins to send
and receive Ethernet signals.
Some hubs have one input that can accept either a straight-through or crossover
cable, depending on a switch position. In this case, you must ensure that the
switch position and cable type agree.
Refer to Ethernet Cable Configuration (page 134) for a diagram of how to
configure Ethernet cable.

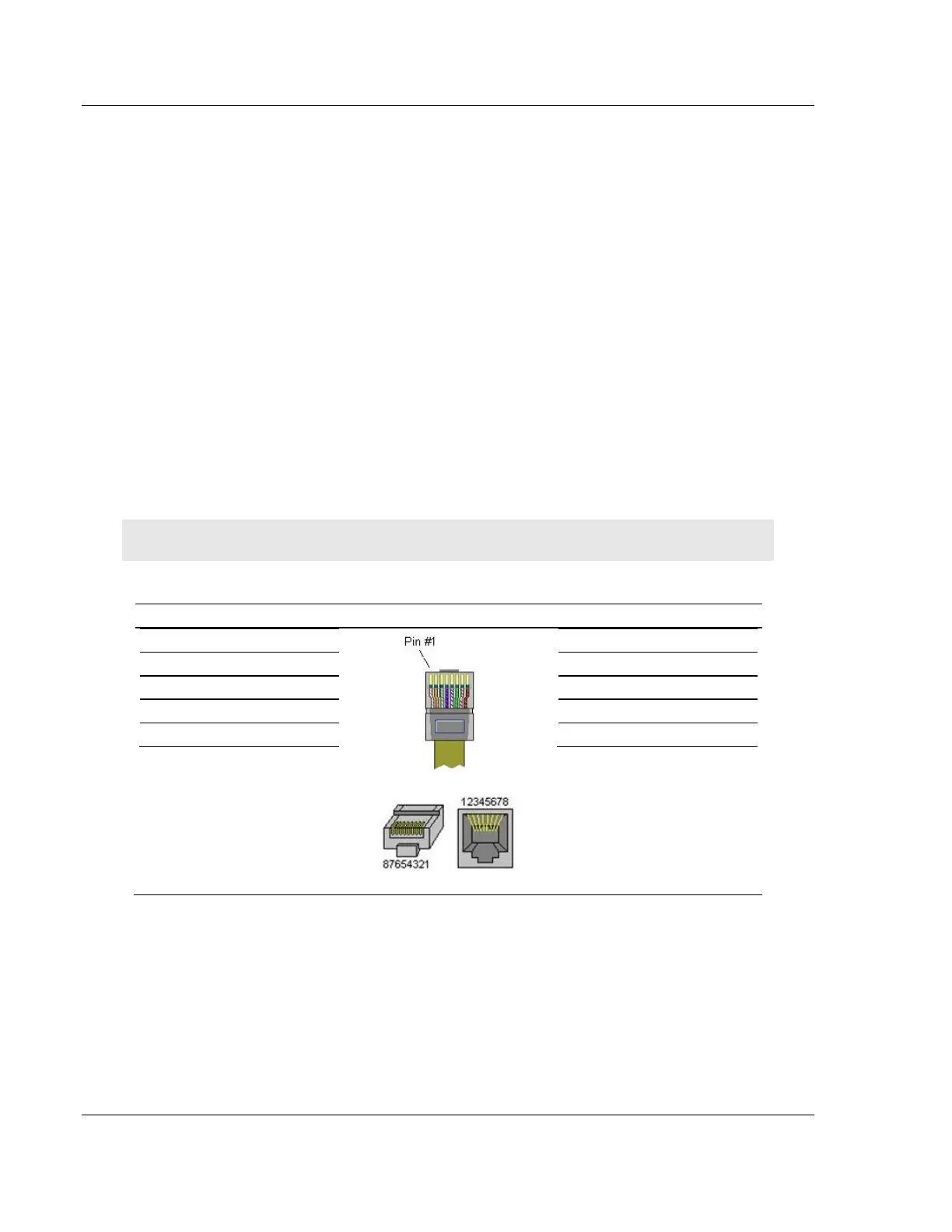

5.3.1 Ethernet Cable Configuration
Note: The standard connector view shown is color-coded for a straight-through cable.
Crossover cable
Straight- through cable
RJ-45 PIN
RJ-45 PIN
1 Rx+
3 Tx+
2 Rx-
6 Tx-
3 Tx+
1 Rx+
6 Tx-
2 Rx-
RJ-45 PIN
RJ-45 PIN
1 Rx+
1 Tx+
2 Rx-
2 Tx-
3 Tx+
3 Rx+
6 Tx-
6 Rx-
5.3.2 Ethernet Performance
Ethernet performance in the MVI56E-MNETC/MNETCXT module can be affected
in the following way:
