ProSoft Technology MVI56E-MNETC User Manual

MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform Using Controller Tags
Modbus TCP/IP Client Enhanced Communication Module - Client/Server User Manual
ProSoft Technology, Inc. Page 77 of 172
September 20, 2018

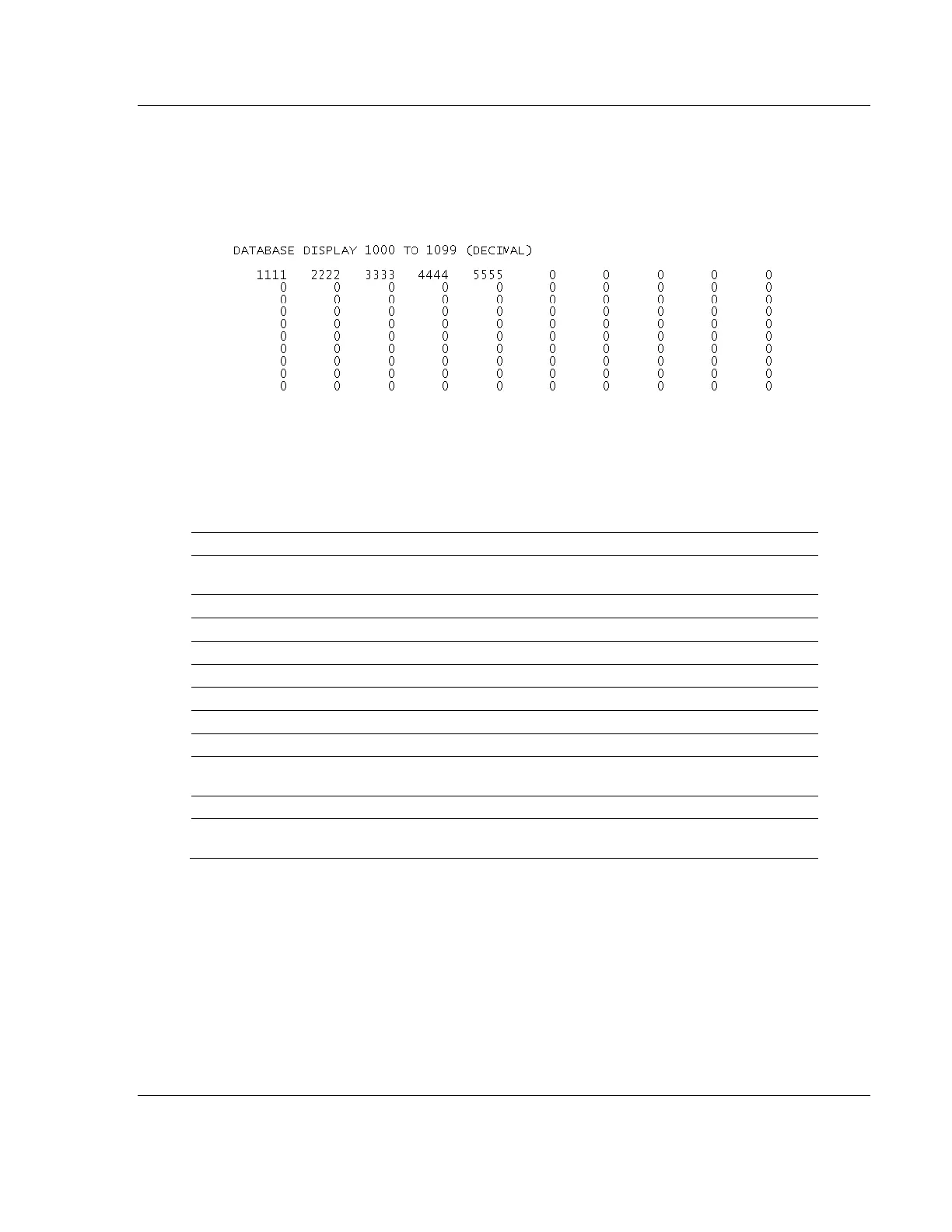

The WriteData array is related to the contents of the Write Data area of the
module's internal database. To view the actual registers in the module's internal
database, access the database display from ProSoft Configuration Builder's
Diagnostics menu. For more information, see the section on PCB The
Diagnostics Menu (page 88).
3.3.2 MNETC.CONTROL
This controller tag structure is used to request special tasks from the module. For
more information, see Special Function Blocks (page 110).
Controller Tag
Data Type
Description
BootTimer
TIMER
Timer used to clear both cold and warm boot
requests
ColdBoot
BOOL
Hardware reset of the module
WarmBoot
BOOL
Configuration data reset in the module
ResetStatus
BOOL
Reset status values
CmdID
INT
Command ID from 1 to 16
CmdControl
MNETCCMDCONTROL
Holds Command Control statistics
CmdControlPending
BOOL
Halts rung until module is ready
CmdControlTrigger
BOOL
Command Control Trigger
IPAddress
MNETCIPADDRESS
Getting and setting IP address to and from
module
EventCmd
MNETCEVENTCMD
Holds Event Command configuration
EventSeqCmd
MNETCEVENTCMD_SE
Q
Event sequence commands
