Reference MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform
User Manual Modbus TCP/IP Client Enhanced Communication Module - Client/Server
Page 164 of 172 ProSoft Technology, Inc.
September 20, 2018
To open the sample program
1 On the Connected to Go Online dialog box, click the SELECT FILE button.
2 Choose the sample program file that matches your firmware version, and
then click the SELECT button.
3 RSLogix will load the sample program.
The next step is to configure the correct controller type and slot number for your
application.
5.7.2 Choosing the Controller Type
The sample application is for a 1756-L63 ControlLogix 5563 Controller. If you are
using a different model of the ControlLogix processor, you must configure the
sample program to use the correct processor model.

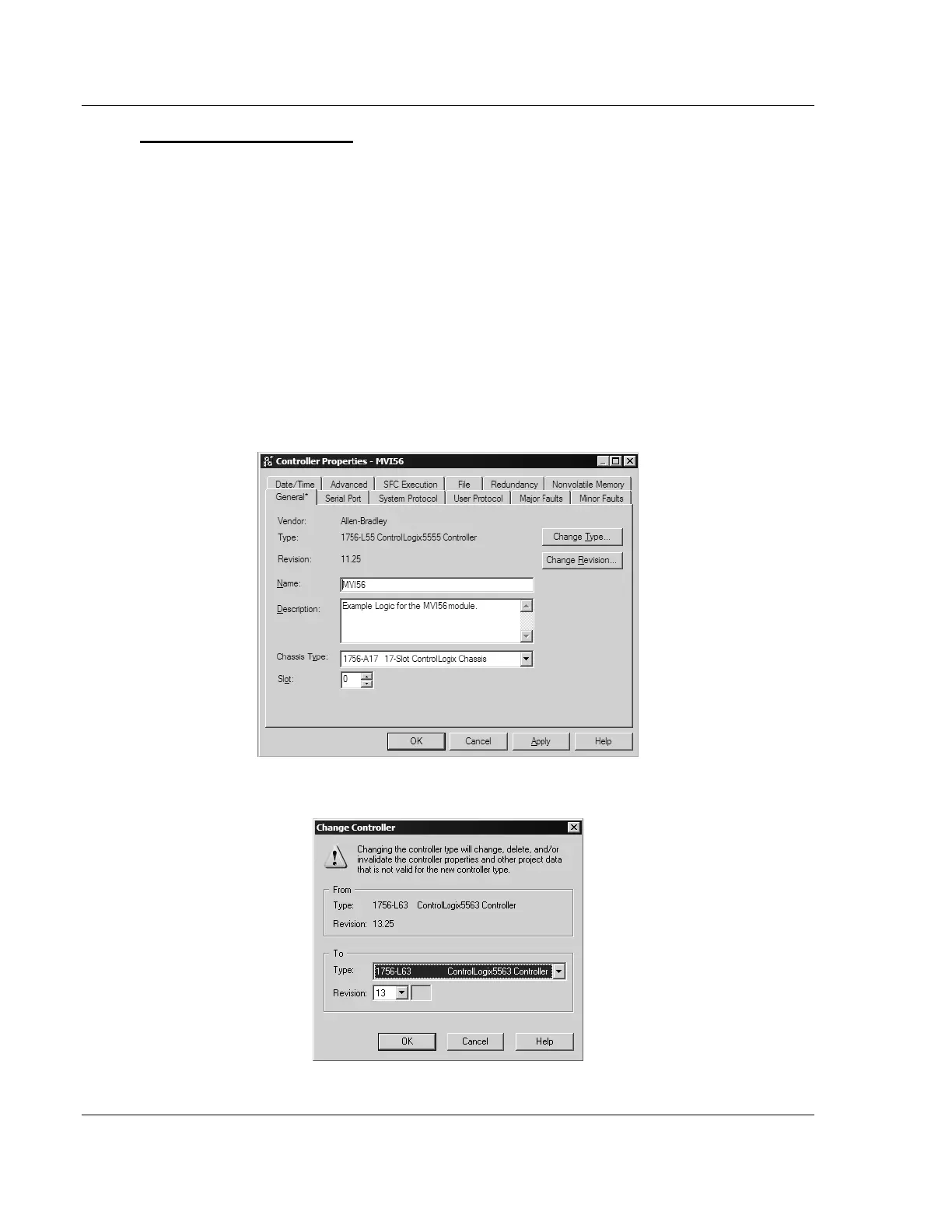

1 In the Controller Organizer list, right-click the folder for the controller and then
choose PROPERTIES. This action opens the Controller Properties dialog box.
2 Click the CHANGE TYPE or CHANGE CONTROLLER button. This action opens
the Change Controller dialog box.
3 Open the TYPE dropdown list, and then select your ControlLogix controller.
To Next Page
