MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform Start Here
Modbus TCP/IP Client Enhanced Communication Module - Client/Server User Manual
ProSoft Technology, Inc. Page 15 of 172
September 20, 2018
1.4.2 Creating the Module
1 Add the MVI56E-MNETC/MNETCXT module to the project.

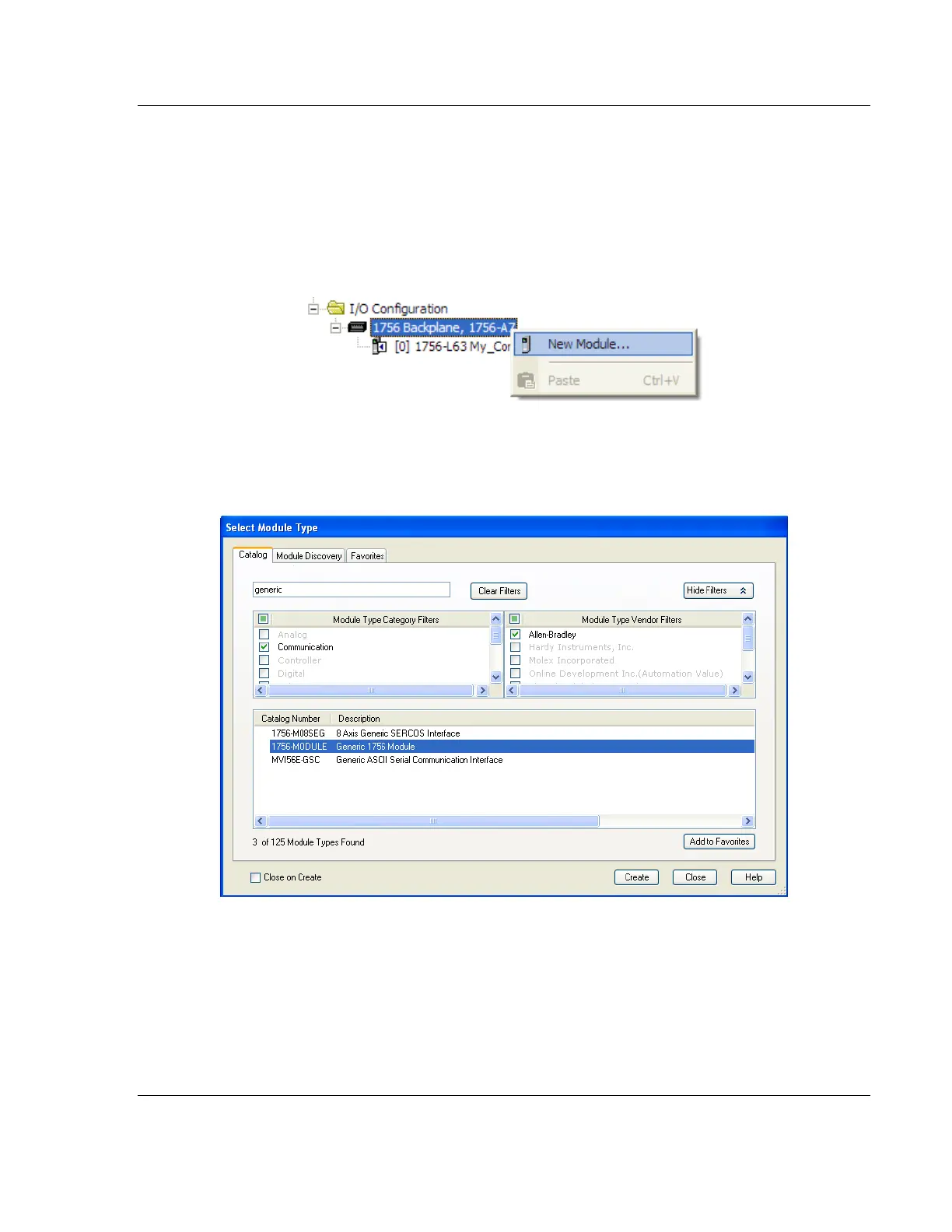

In the CONTROLLER ORGANIZATION window, select I/O CONFIGURATION and
click the right mouse button to open a shortcut menu. On the shortcut menu,
choose NEW MODULE...
This action opens the SELECT MODULE dialog box. Enter generic in the text
box and select the GENERIC 1756 MODULE. If you're using a controller
revision of 16 or less, expand OTHER in the SELECT MODULE dialog box,
and then select the GENERIC 1756 MODULE.
