Start Here MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform
User Manual Modbus TCP/IP Client Enhanced Communication Module - Client/Server
Page 20 of 172 ProSoft Technology, Inc.
September 20, 2018
5 If you are using the module in a different slot (or remote rack), edit the
connection input and output variables that define the path to the module. Edit
the text in the FINAL NAME column (NAME column for controller revision 16 or
less). For example, if your module is located in slot 3, change Local:1:I in the
above picture to Local:3:I. Do the same for Local:1:O. If your module is
located in Slot 1 of the local rack, this step is not required.
6 Click OK to confirm the import.

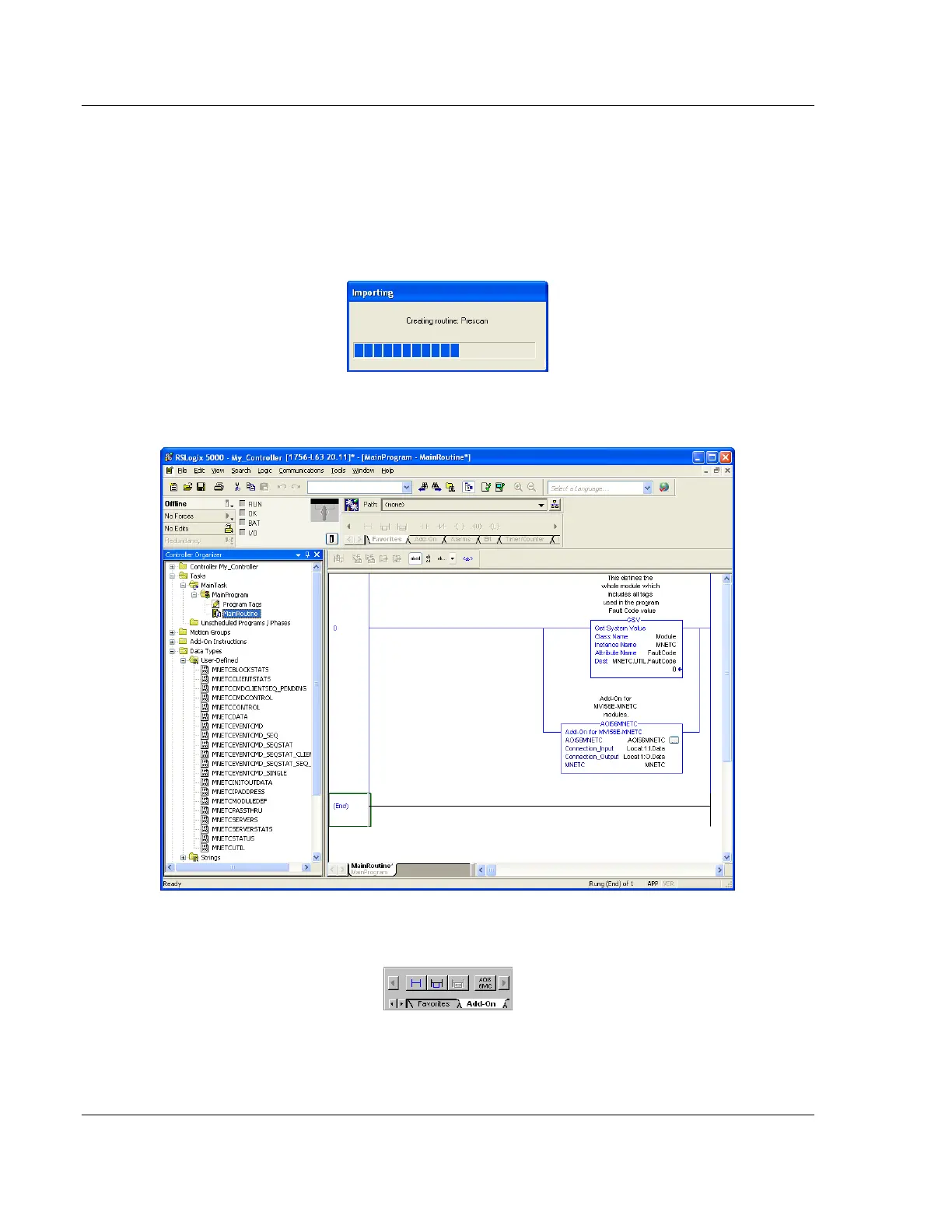

When the import is completed, the new rung with the Add-On Instruction
appears as shown in the following illustration.
The procedure also imports the new User Defined Data Types, Controller
Tags, and the Add-On instruction for your project.
7 Save the application and then download the sample ladder logic to the
processor.
