4.4.3 Monitoring Backplane Information
Use the BACKPLANE menu to view the backplane status information for the
MVI56E-MNETC/MNETCXT module.
Backplane Status
Use the Status menu to view current backplane status, including
 Number of retries
 Backplane status
 Fail count
 Number of words read
 Number of words written
 Number of words parsed
 Error count
 Event count
 Command count
During normal operation, the read, write, and parsing values should increment
continuously, while the error value should not increment.
The status values on this menu correspond with members of the Status Data
Definition. See Status Data in Read Block (page 107).

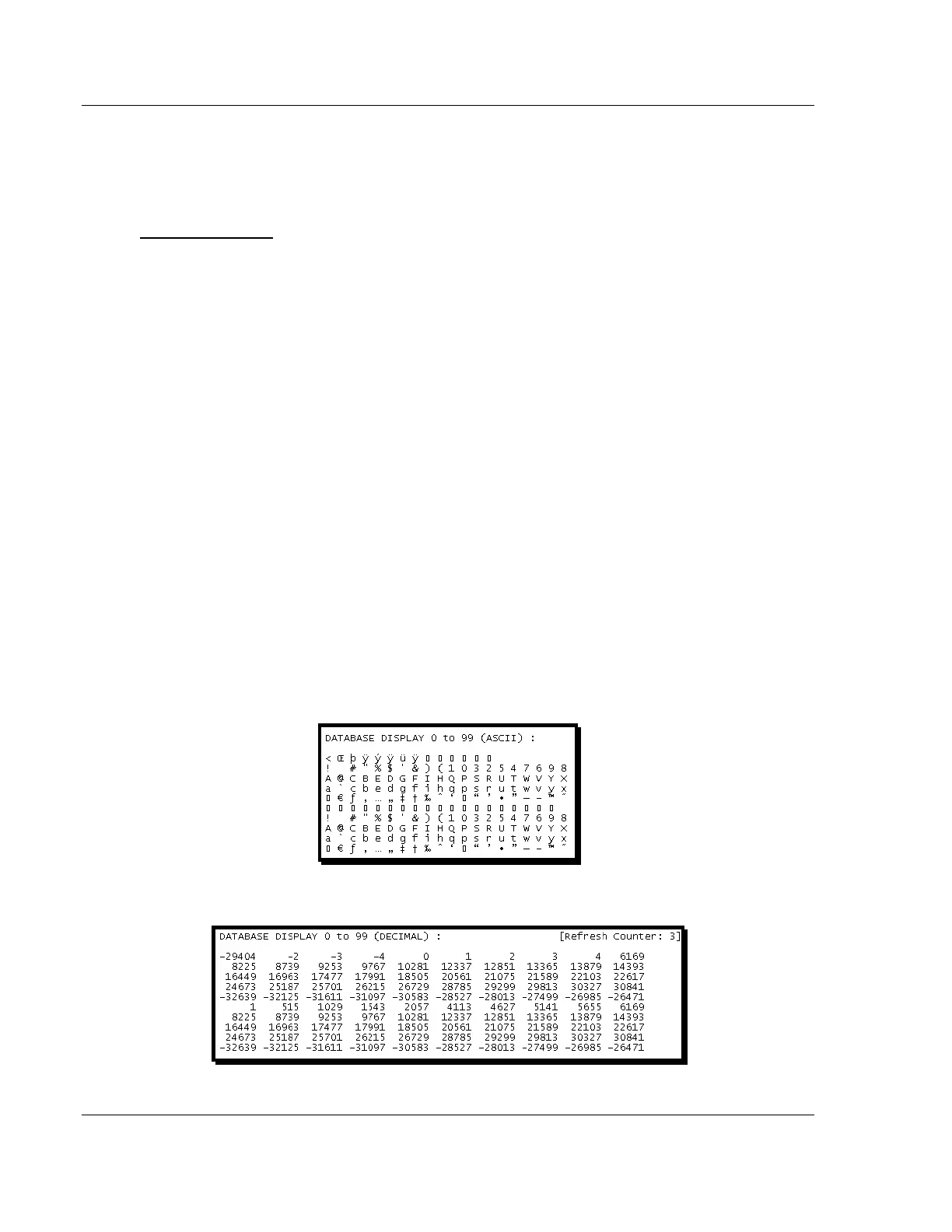

4.4.4 Monitoring Database Information
Use the DATABASE menu to view the contents of the MVI56E-
MNETC/MNETCXT module’s internal database.
You can view data in the following formats:
ASCII
Decimal
