2.2.2 Using RSWho to Connect to the Module
You need to have RSLinx installed on your PC to use this feature. You also need an ENBT module
set up in the rack. For information on setting up the ENBT module, see Using CIPconnect to
Connect to the Module (page 54).
1 In the tree view in ProSoft Configuration Builder, right-click the MVI56E-
MNETC/MNETCXT module.
2 From the shortcut menu, choose DOWNLOAD FROM PC TO DEVICE.

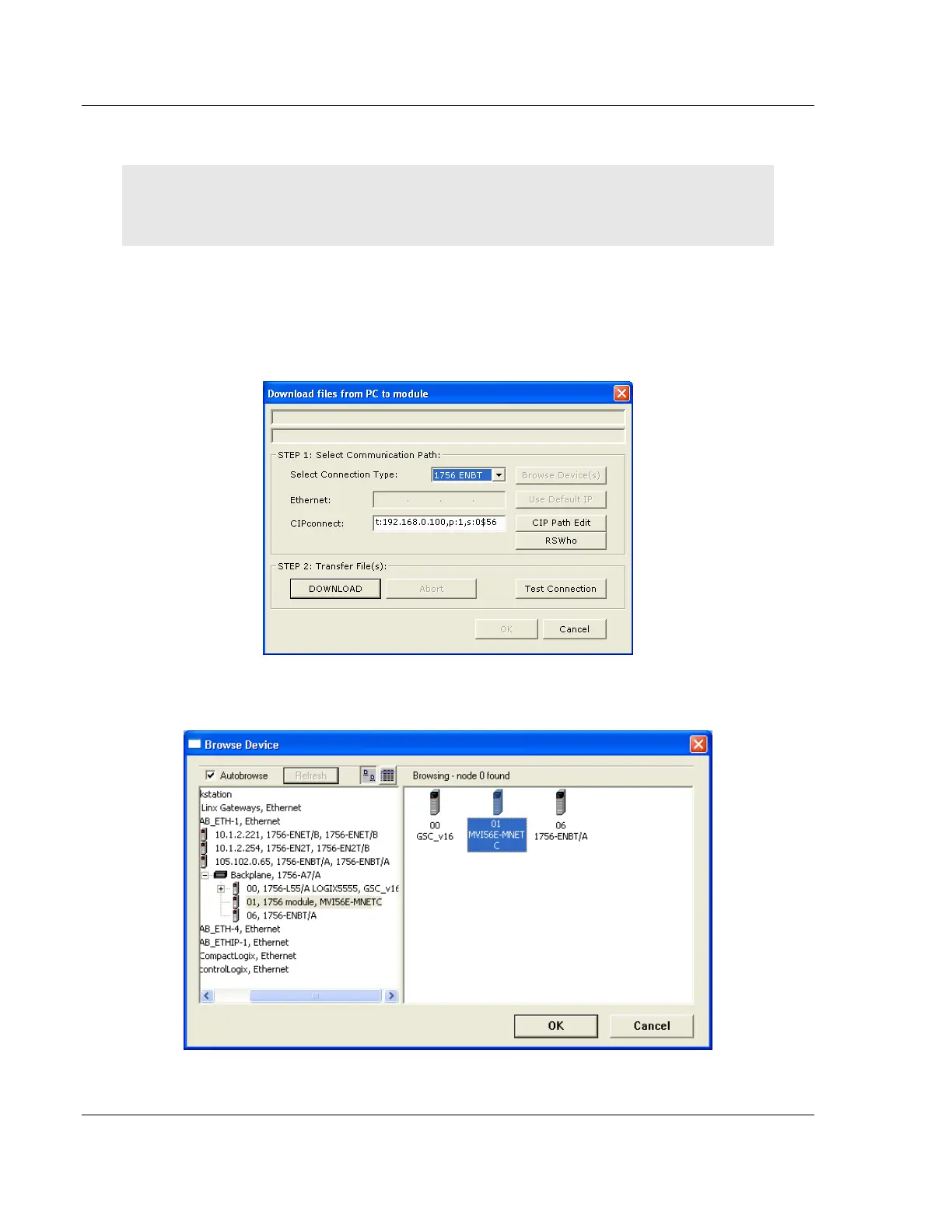

3 In the Download dialog box, choose 1756 ENBT from the Select Connection
Type dropdown box.
4 Click RSWHO to display modules on the network. The MVI56E-
MNETC/MNETCXT module will automatically be identified on the network.
5 Select the module, and then click OK.
