ProSoft Technology MVI56E-MNETC User Manual

Start Here MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform
User Manual Modbus TCP/IP Client Enhanced Communication Module - Client/Server
Page 22 of 172 ProSoft Technology, Inc.
September 20, 2018
3 Fill the module properties as follows:
Parameter
Value
NAME
Enter a module identification string. Example: MNETC_2.
DESCRIPTION
Enter a description for the module. Example: ProSoft Modbus
TCP/IP Enhanced Communication Module.
COMM FORMAT
Select DATA-INT.
SLOT
Enter the slot number in the rack where the MVI56E-
MNETC/MNETCXT module is located.
INPUT ASSEMBLY INSTANCE
1
INPUT SIZE
250
OUTPUT ASSEMBLY INSTANCE
2
OUTPUT SIZE
248
CONFIGURATION ASSEMBLY INSTANCE
4
CONFIGURATION SIZE
0

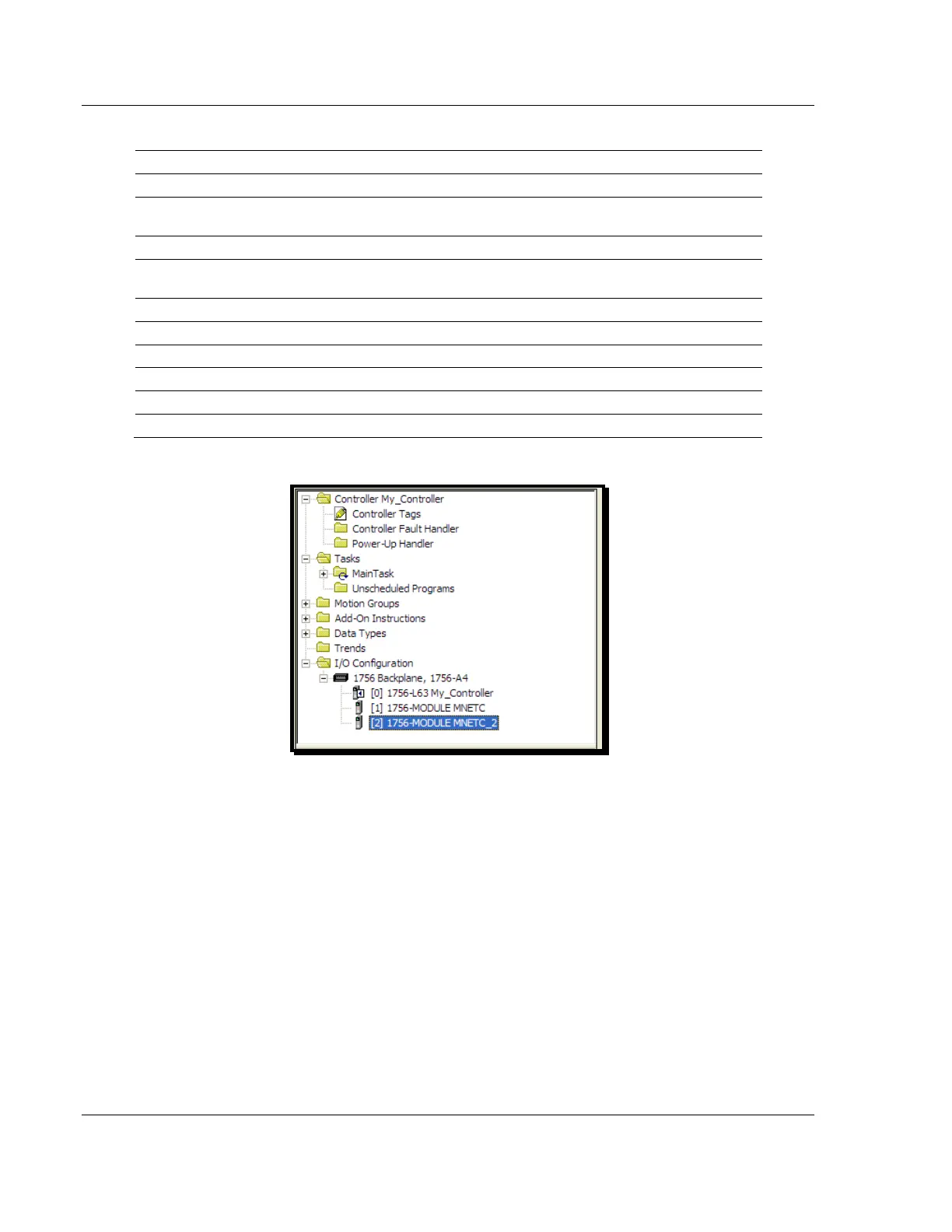

4 Click OK to confirm. The new module is now visible:
5 Expand the TASKS folder, and then expand the MAINTASK folder.
6 In the MAINPROGRAM folder, double-click to open the MAINROUTINE ladder.
