Start Here MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform
User Manual Modbus TCP/IP Client Enhanced Communication Module - Client/Server
Page 24 of 172 ProSoft Technology, Inc.
September 20, 2018

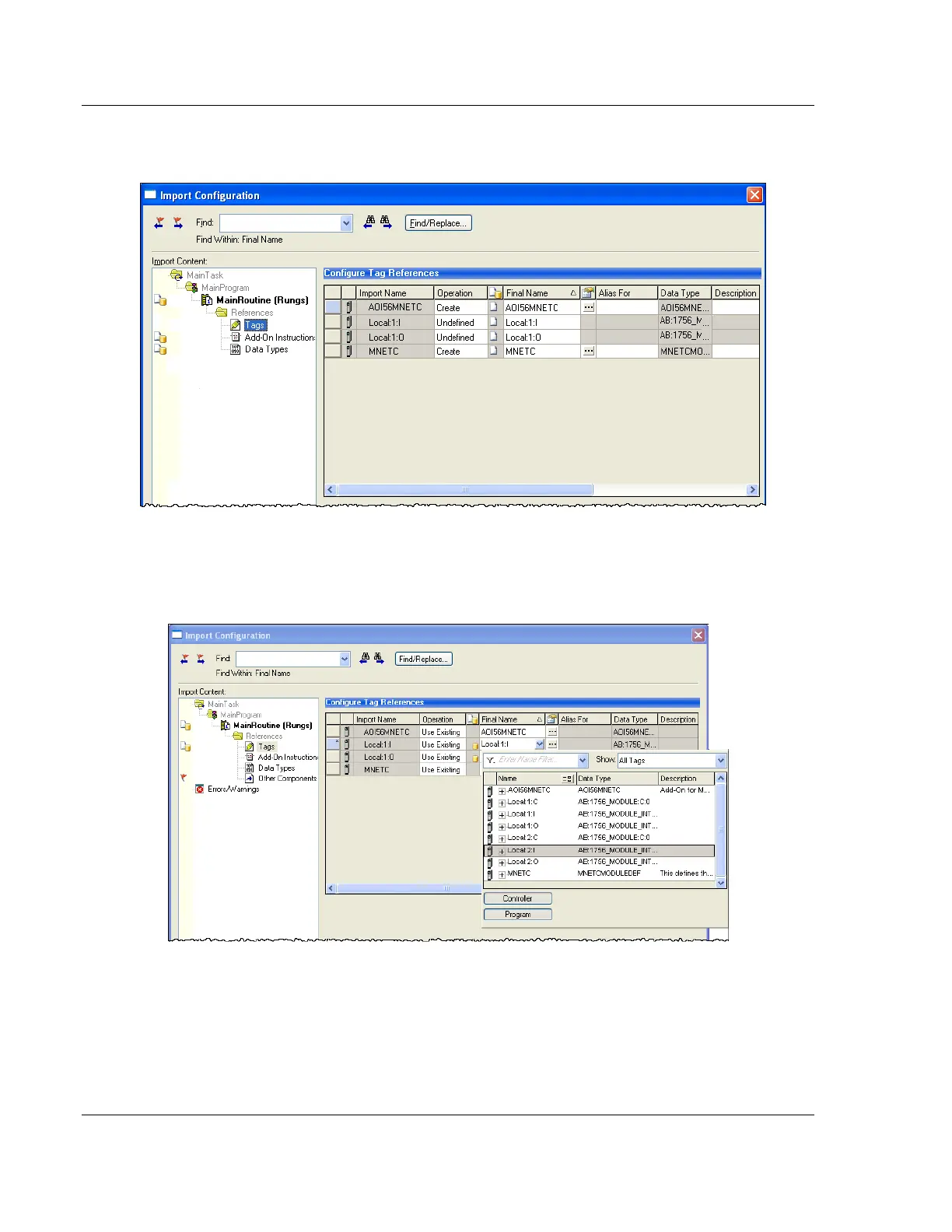

9 This action opens the IMPORT CONFIGURATION window. Click TAGS under
MAINROUTINE to show the tags that will be imported.
10 Associate the I/O connection variables to the correct module. The default
values are Local:1:I and Local:1:O so you may have to edit the FINAL NAME
field to change the values. You can also click the drop-down arrow to select
the correct name.
