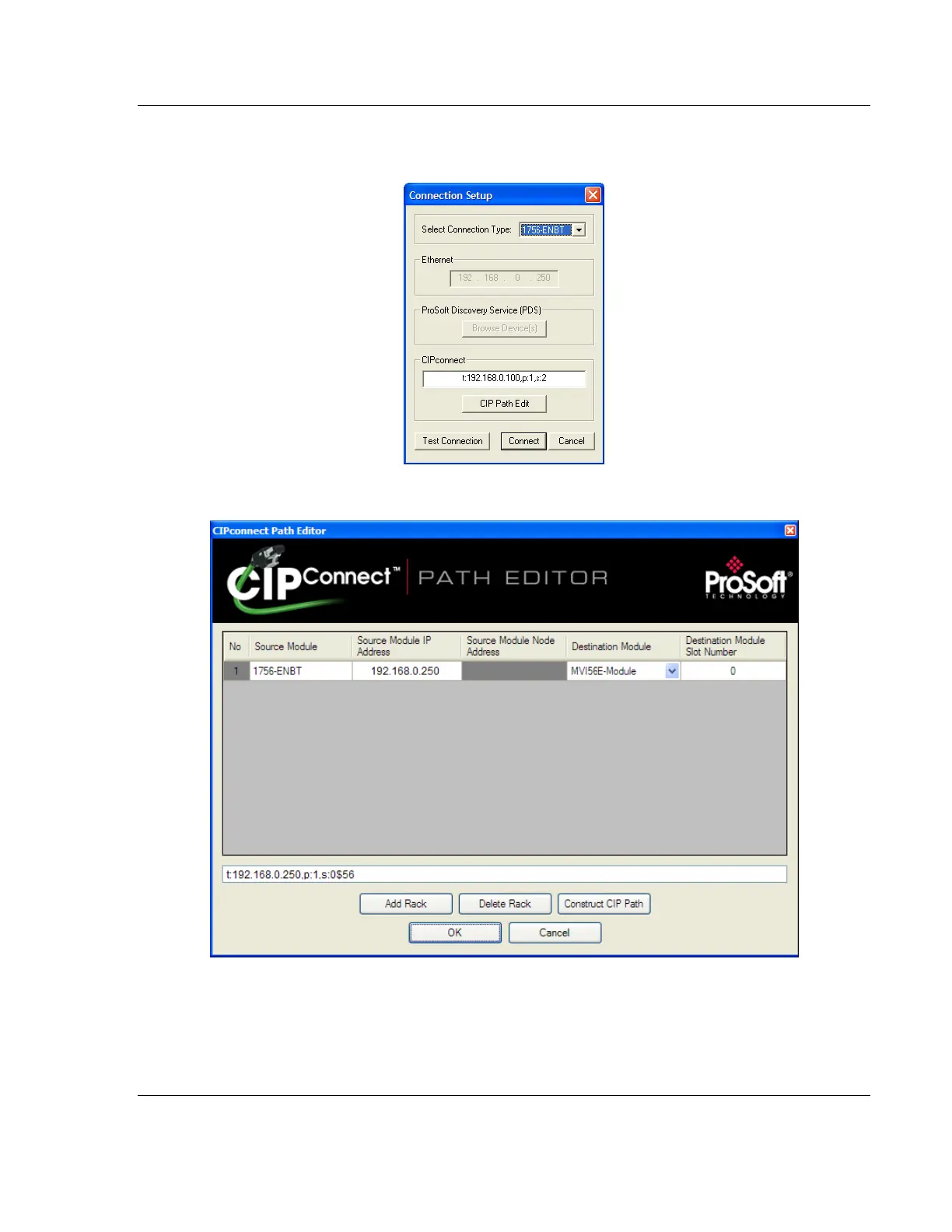

3 In the Select Connection Type dropdown list, choose 1756-ENBT. The
default path appears in the text box, as shown in the following illustration.
4 Click CIP PATH EDIT to open the CIPconnect Path Editor dialog box.
The CIPconnect Path Editor allows you to define the path between the PC and
the MVI56E-MNETC/MNETCXT module. The first connection from the PC is
always a 1756-ENBT (Ethernet/IP) module.
Each row corresponds to a physical rack in the CIP path.
