Example 2: Remote Rack Application
For this example, the MVI56E-MNETC/MNETCXT module is located in a remote

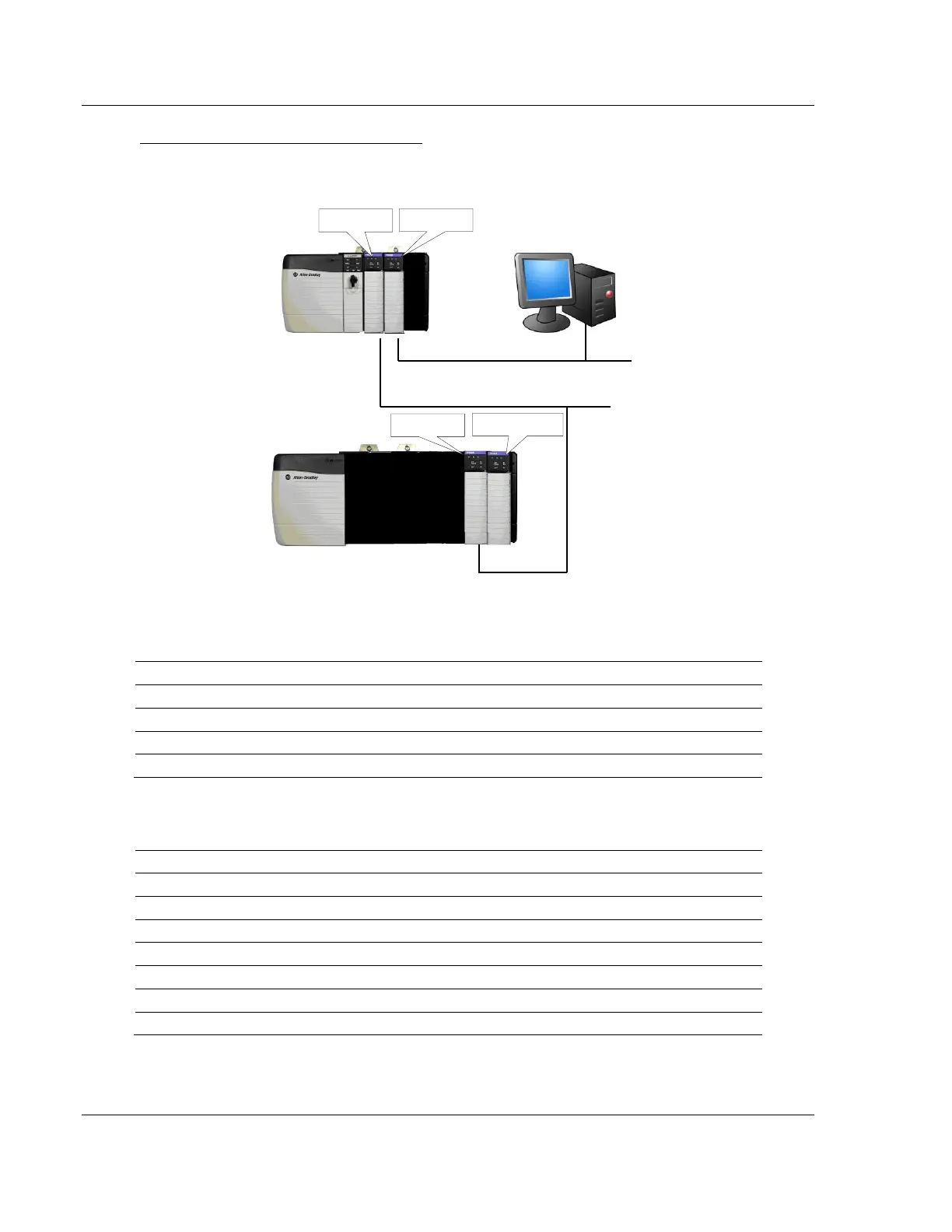

rack accessible through ControlNet, as shown in the following illustration.
Ethernet
Rack 1
0 1 2 3
ControlNet
0
1 2 3 4 5
6
Rack 2
1756-ENBT
1756-CNB
1756-CNB
MVI56E Module
Rack 1
Slot
Module
Network Address
0
ControlLogix Processor
-
1
1756-CNB
Node = 1
2
1756-ENBT
IP=192.168.0.100
3
Any
-
Rack 2
Slot
Module
Network Address
0
Any
-
1
Any
-
2
Any
-
3
Any
-
4
Any
-
5
1756-CNB
Node = 2
6
MVI56E-MNETC/MNETCXT
-
