MVI56E-MCMR ♦ ControlLogix Platform Diagnostics and Troubleshooting
Modbus Communication Module with Reduced Data Block User Manual
ProSoft Technology, Inc. Page 125 of 223

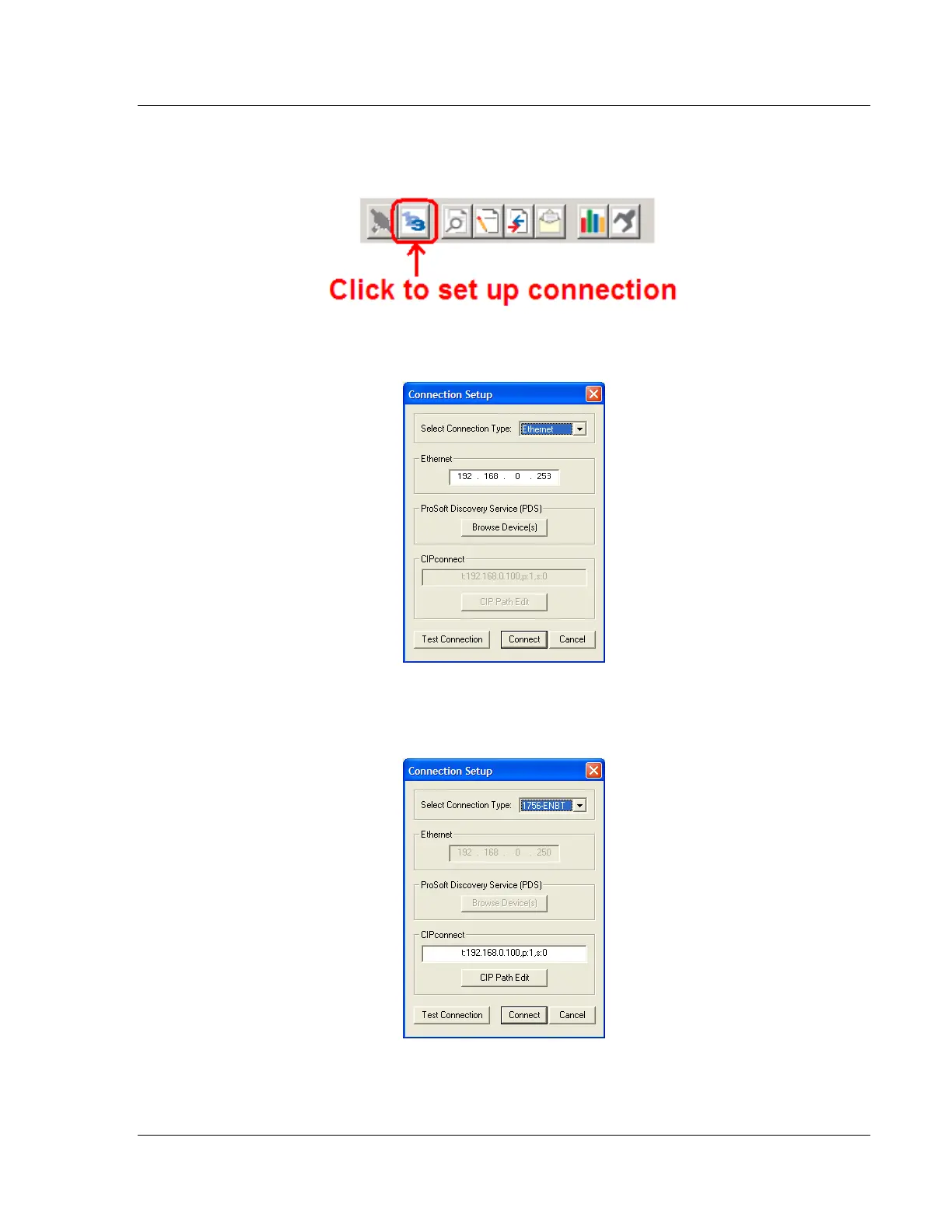

3 In the Diagnostics window, click the SET UP CONNECTION button to browse for
the module’s IP address.
4 In the Connection Setup dialog box, click the TEST CONNECTION button to
verify that the module is accessible with the current settings.
You can also use CIPconnect
®
to connect to the module through a 1756-
ENBT card. Refer to Using CIPconnect to Connect to the Module (page 94)
for information on how to construct a CIP path.
5 If the Test Connection is successful, click CONNECT.
