MVI56E-MCMR ♦ ControlLogix Platform Reference
Modbus Communication Module with Reduced Data Block User Manual
ProSoft Technology, Inc. Page 197 of 223

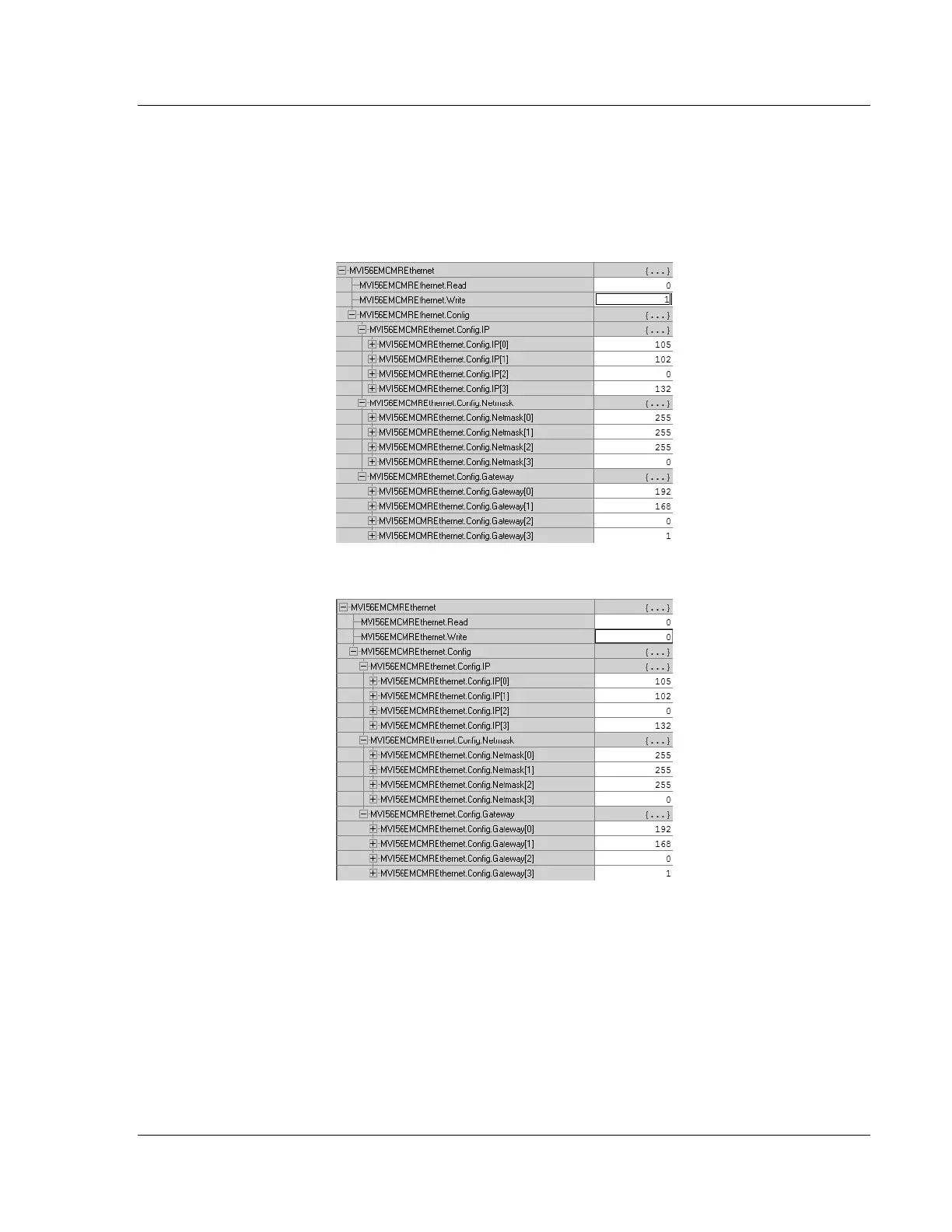

6.7.5 Writing the Ethernet Settings to the Module
Expand the MVI56EMCMRETHERNET controller tag.
Set the new Ethernet configuration in MVI56EMCMRETHERNET.CONFIG
Move a value of 1 to MVI56MCMRETHERNET.WRITE
After the message is executed, the MVI56MCMRETHERNET.WRITE bit resets to 0.
