6.7.3 Installing the Rung Import with Optional Add-On Instruction

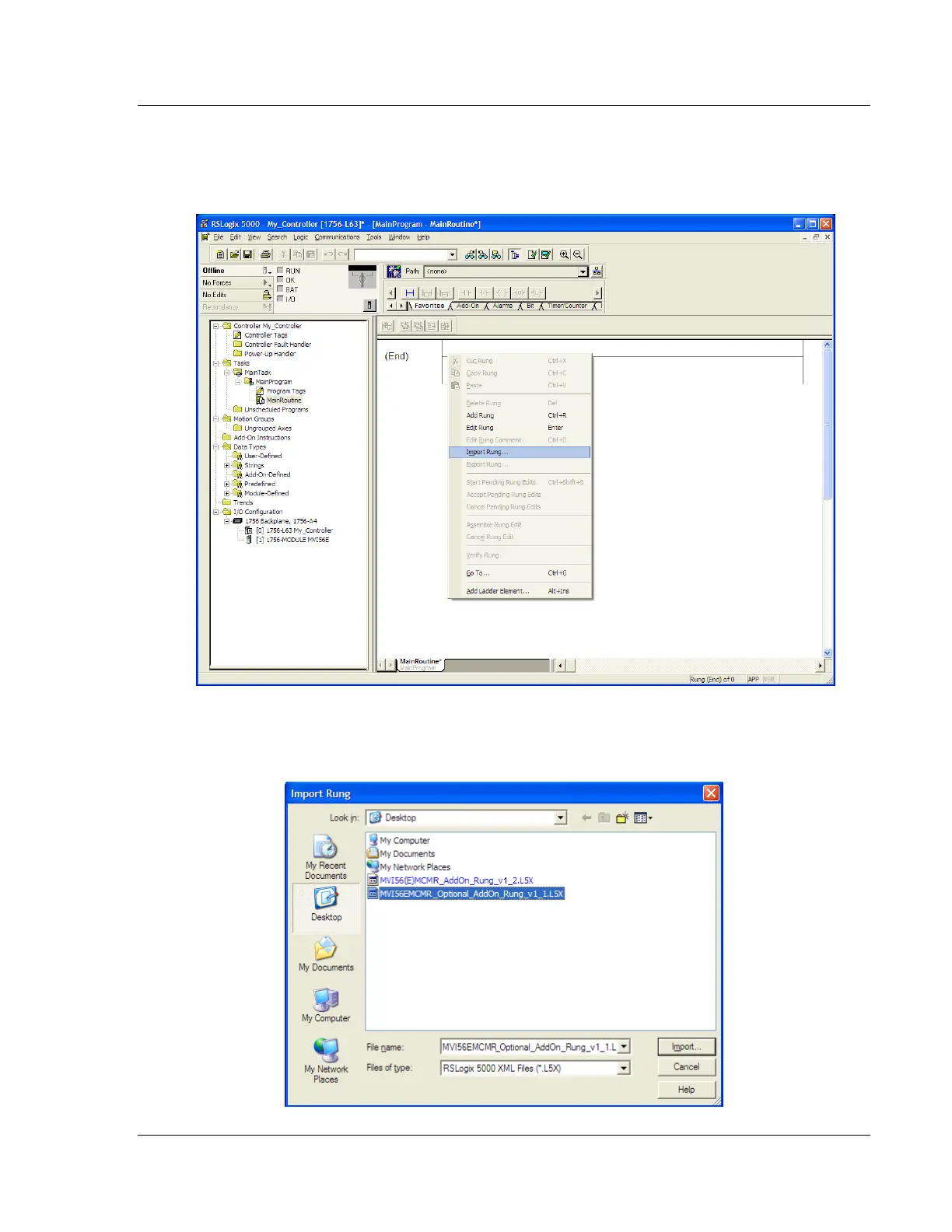

1 Right-click on an empty rung in the MainRoutine of your existing ladder logic
and choose IMPORT RUNG.
2 Navigate to the folder where you saved
MVI56(E)MCMR_Optional_AddOn_Rung_vXXX.L5X and select the file. Click
the IMPORT button.
