ProSoft MVI56E-MCMR User Manual

Start Here MVI56E-MCMR ♦ ControlLogix Platform
User Manual Modbus Communication Module with Reduced Data Block
Page 28 of 223 ProSoft Technology, Inc.

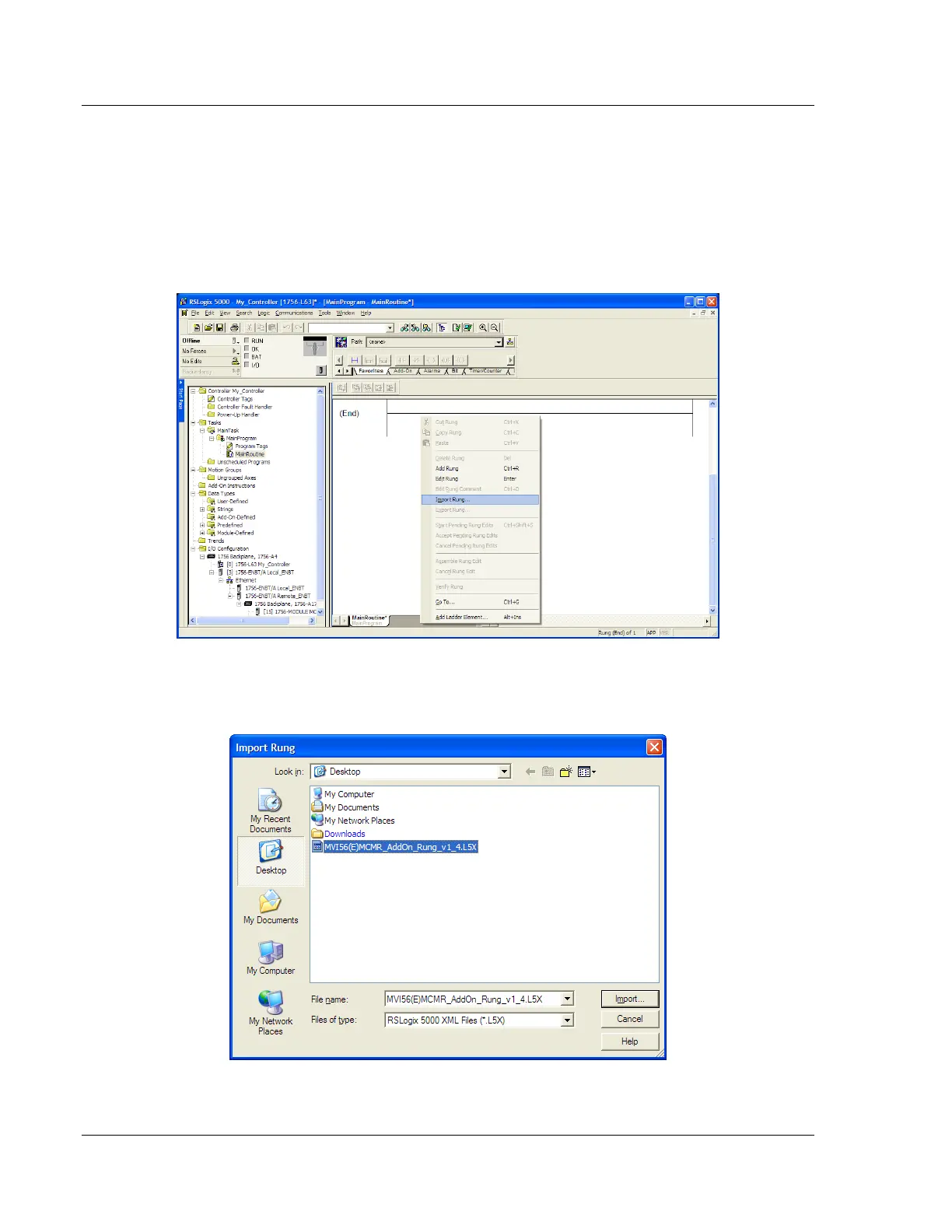

1.8.4 Importing the Ladder Rung
1 In the CONTROLLER ORGANIZATION window, expand the TASKS folder and
subfolder until you reach the MAINPROGRAM folder.
2 In the MAINPROGRAM folder, double-click to open the MAINROUTINE ladder.
3 Select an empty rung in the new routine, and then click the right mouse
button to open a shortcut menu. On the shortcut menu, choose IMPORT
RUNG…
4 Navigate to the location on your PC where you saved (page 18) the Add-On
Instruction (for example, "My Documents" or "Desktop"). Select the
MVI56(E)MCMR_ADDON_RUNG_V1_X.L5X file
