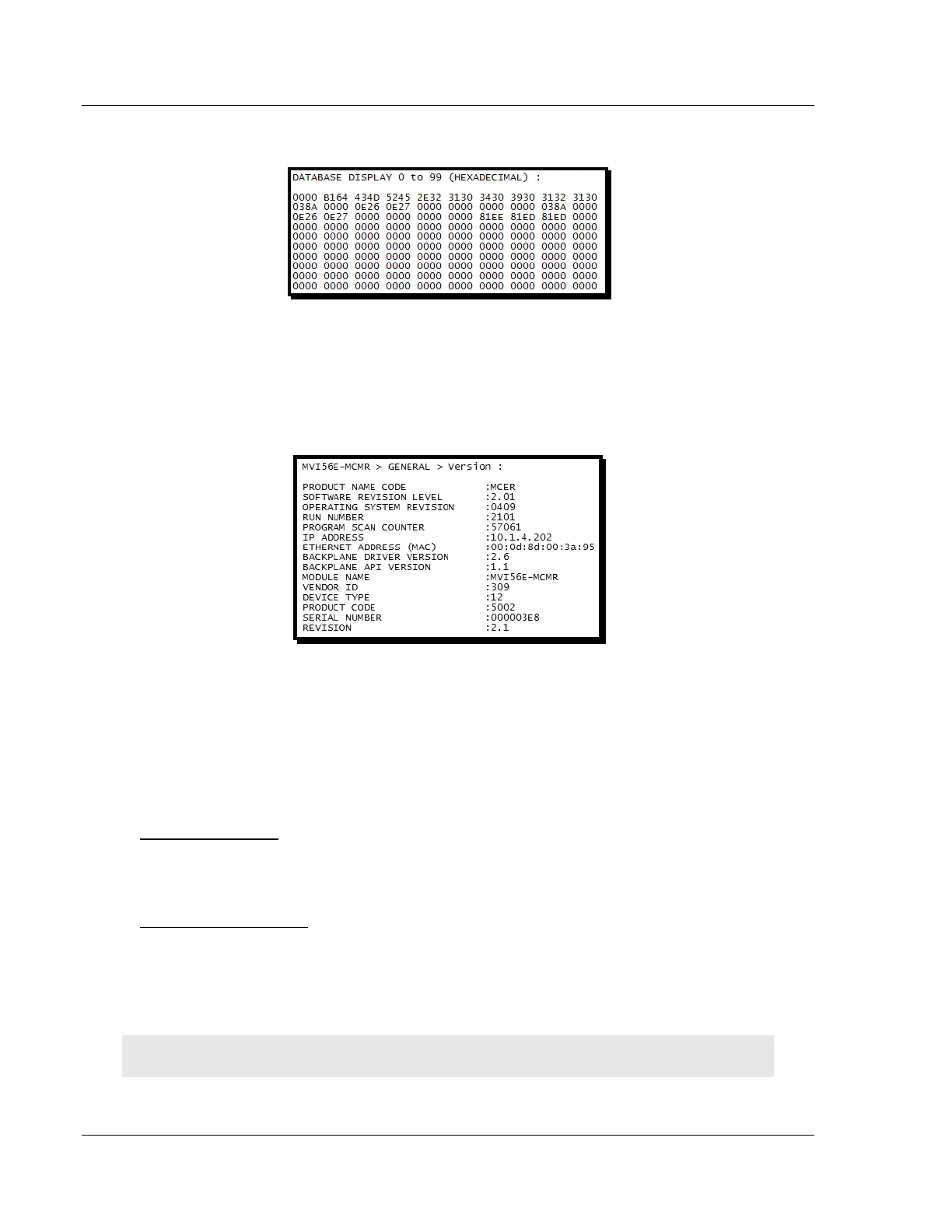

Hexadecimal
Use the scroll bar on the right edge of the window to view each page (100 words)
of data.
5.2.5 Monitoring General Information
Use the General Menu to view module version information.
The values on this menu correspond with the contents of the module’s
Miscellaneous Status registers.
5.2.6 Monitoring Modbus Port Information
Use the Modbus Port 1 and Modbus Port 2 menus to view the information for
each of the MVI56E-MCMR module’s Modbus application ports.
Port Configuration
Use the Port Configuration menu to view configuration settings for Modbus Port 1
and Modbus Port 2.
Master Command List
Use the Master Command List menu to view the command list settings for
Modbus Port 1 and Modbus Port 2.
Use the scroll bar on the right edge of the window to view each Modbus Master
command.
Note: The Master Command List is available only if the port is configured as a Modbus Master.
