1.8.1 Creating the Remote Network
Note: If you are installing the MVI56E-MCMR module in a remote rack, follow these steps. If you
are installing the module in a local rack, follow the steps in Creating the Module - Local Rack (page
25).

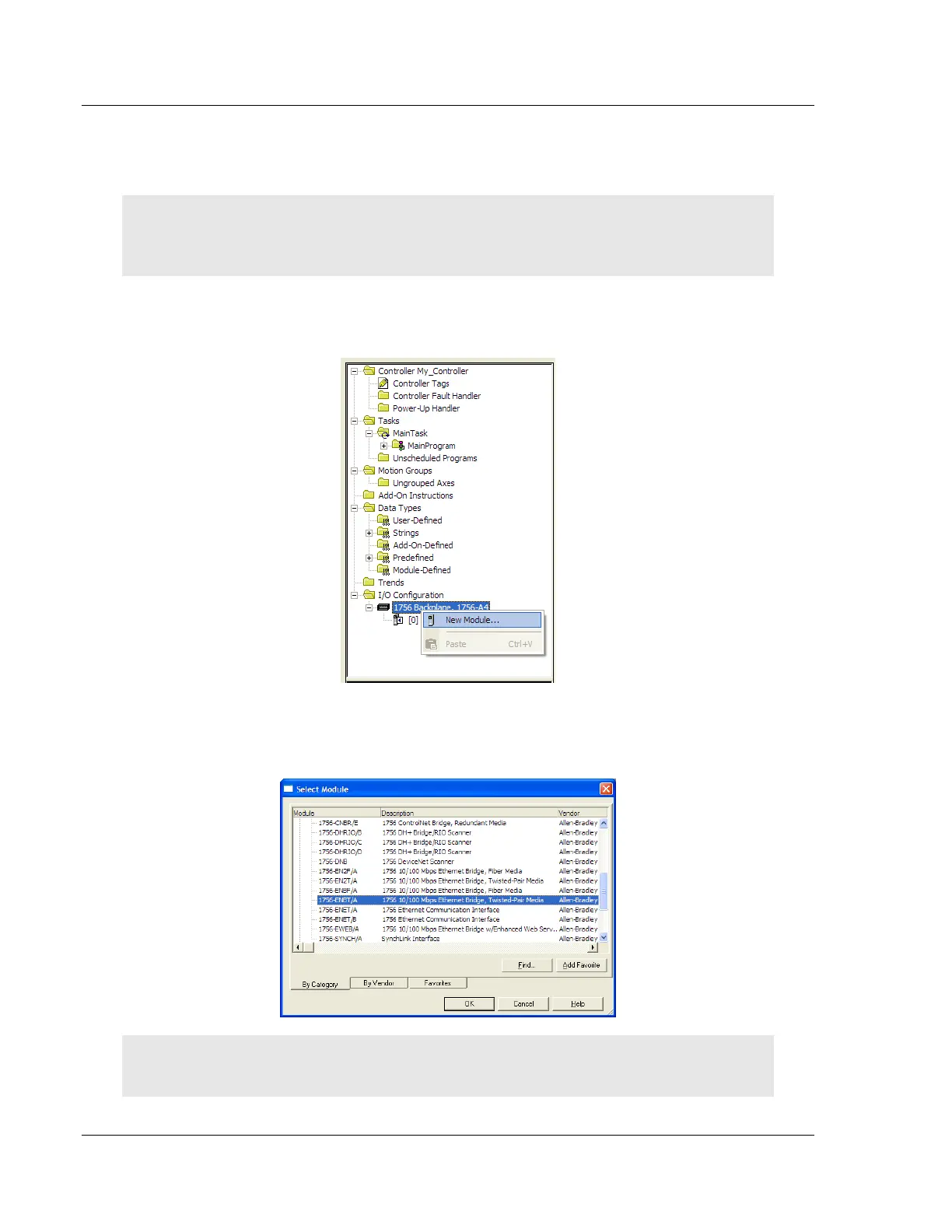

1 Right-click I/O CONFIGURATION and choose NEW MODULE.
2 Expand the Communications module selections and then select the Ethernet
Bridge module that matches your hardware. This example uses a 1756-
ENBT/A module.
Note: If you are prompted to Select Major Revision, choose the lower of the available revision
numbers.
