Reference MVI56E-MCMR ♦ ControlLogix Platform
User Manual Modbus Communication Module with Reduced Data Block
Page 206 of 223 ProSoft Technology, Inc.
6.8.6 Ladder Logic - RSLogix Version 15 and Lower
MSG_BLKS
The MSG_BLKS routine passes data between the module and the ControlLogix
processor using MSG instructions. Data transferred using these blocks is of low-
priority and completely under control of the ladder logic.

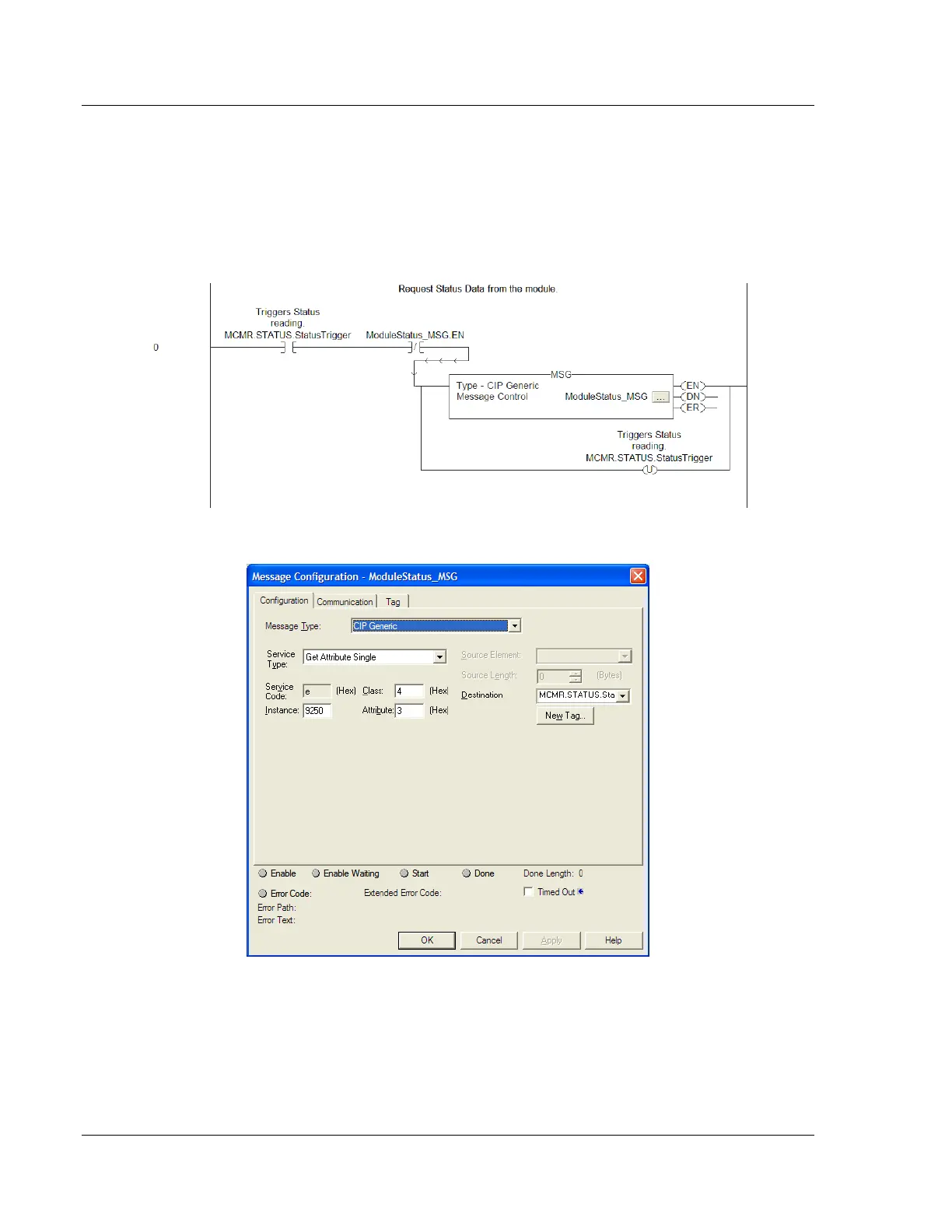

The first rung requests the module’s error/status data:
The following illustration shows the format of the MSG block.
