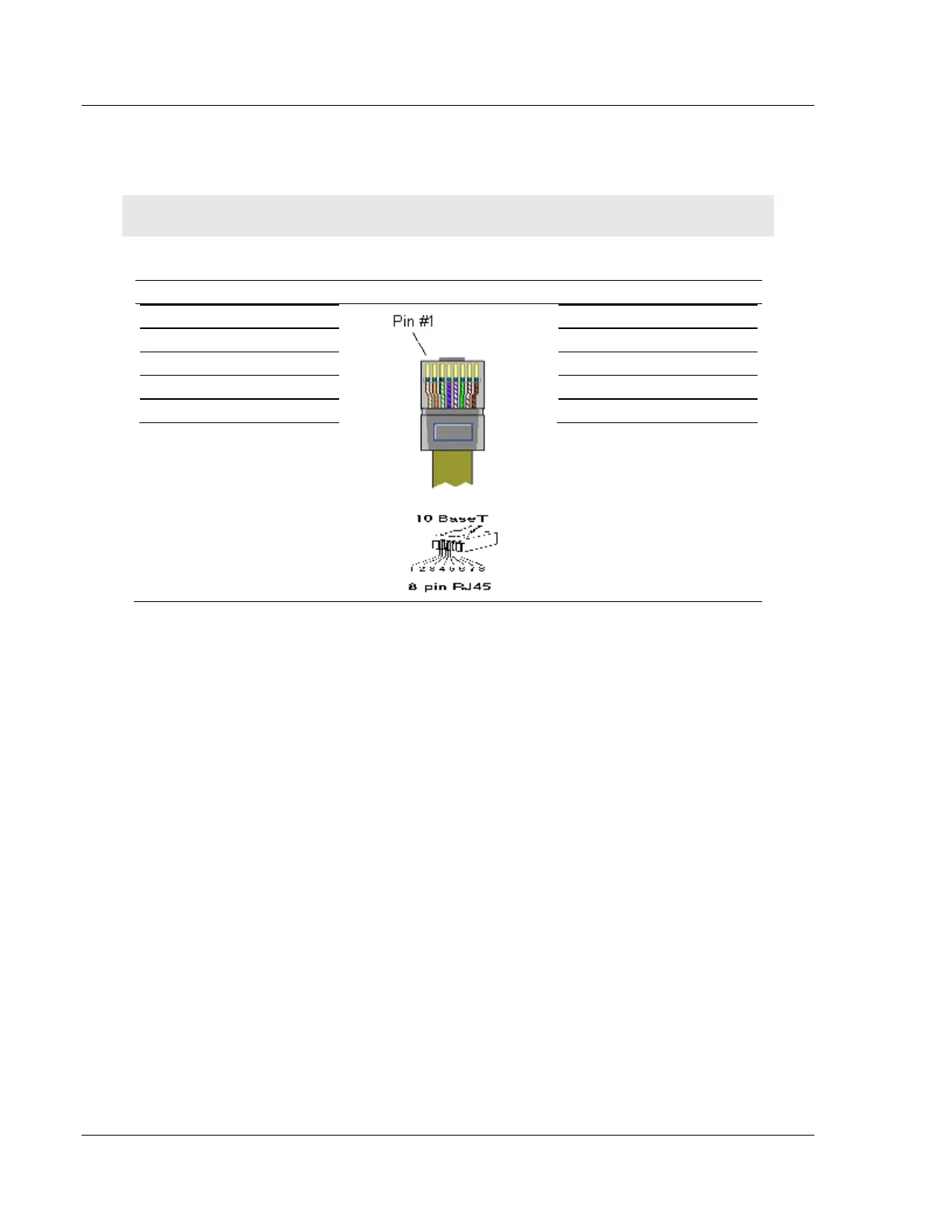

6.4.2 Ethernet Cable Configuration
Note: The standard connector view shown is color-coded for a straight-through cable.
Crossover cable
Straight- through cable
RJ-45 PIN
RJ-45 PIN
1 Rx+
3 Tx+
2 Rx-
6 Tx-
3 Tx+
1 Rx+
6 Tx-
2 Rx-
RJ-45 PIN
RJ-45 PIN
1 Rx+
1 Tx+
2 Rx-
2 Tx-
3 Tx+
3 Rx+
6 Tx-
6 Rx-
6.4.3 Ethernet Performance
Ethernet performance on the MVI56E-MCMR module can affect the operation of
the MCMR application ports in the following ways.
 Accessing the web interface (refreshing the page, downloading files, and so
on) may affect MCMR performance
 High Ethernet traffic may impact MCMR performance (consider CIPconnect
(page 94) for these applications and disconnect the module Ethernet port
from the network).
