MVI56E-MCMR ♦ ControlLogix Platform Reference
Modbus Communication Module with Reduced Data Block User Manual
ProSoft Technology, Inc. Page 209 of 223

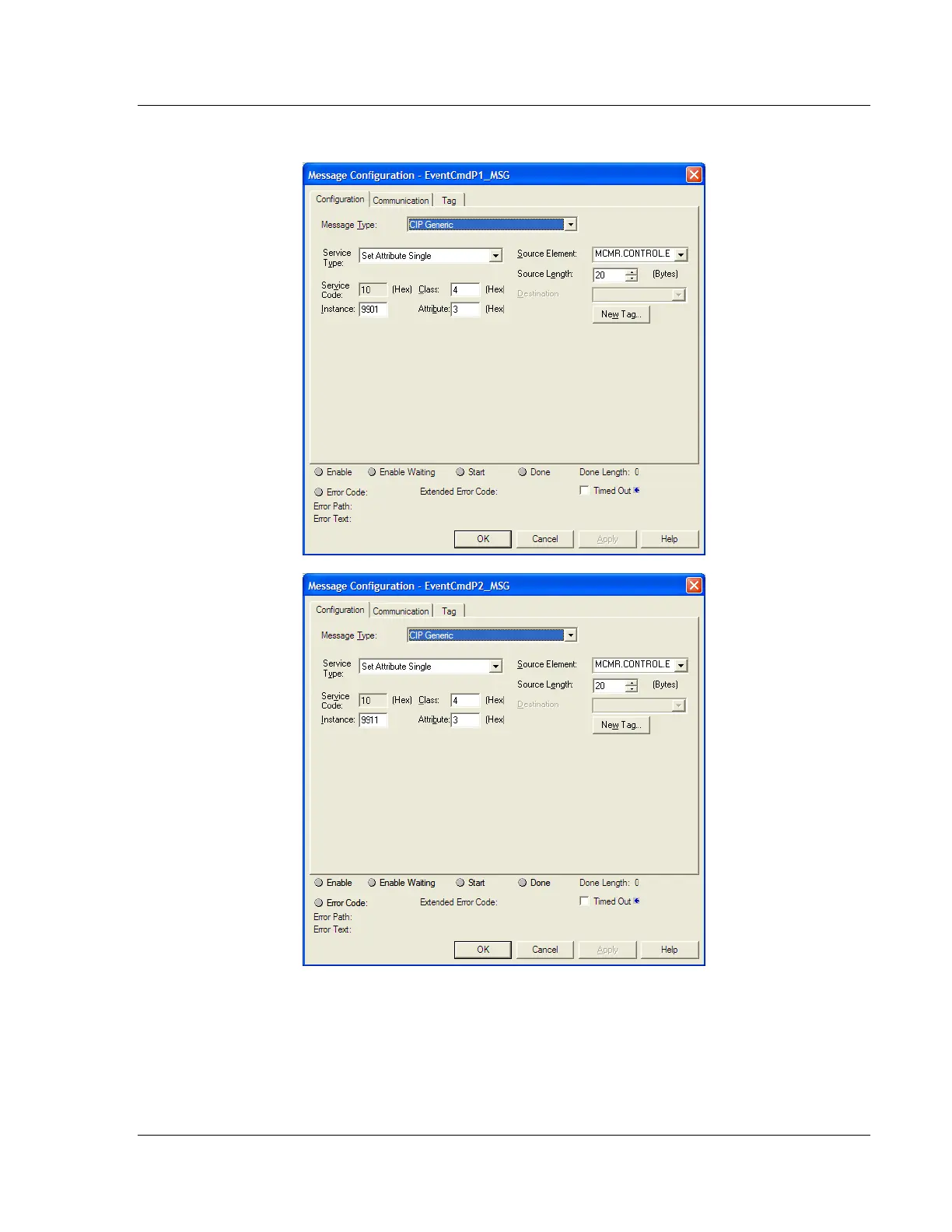

The following illustrations show the format of the MSG block.
The format of the MSG block for this rung is as shown in the previous illustration
except it used the MCMRCmds[0] for the source and destination tags.
