ProSoft MVI56E-MCMR User Manual

MVI56E-MCMR ♦ ControlLogix Platform Configuring the MVI56E-MCMR Module
Modbus Communication Module with Reduced Data Block User Manual
ProSoft Technology, Inc. Page 95 of 223

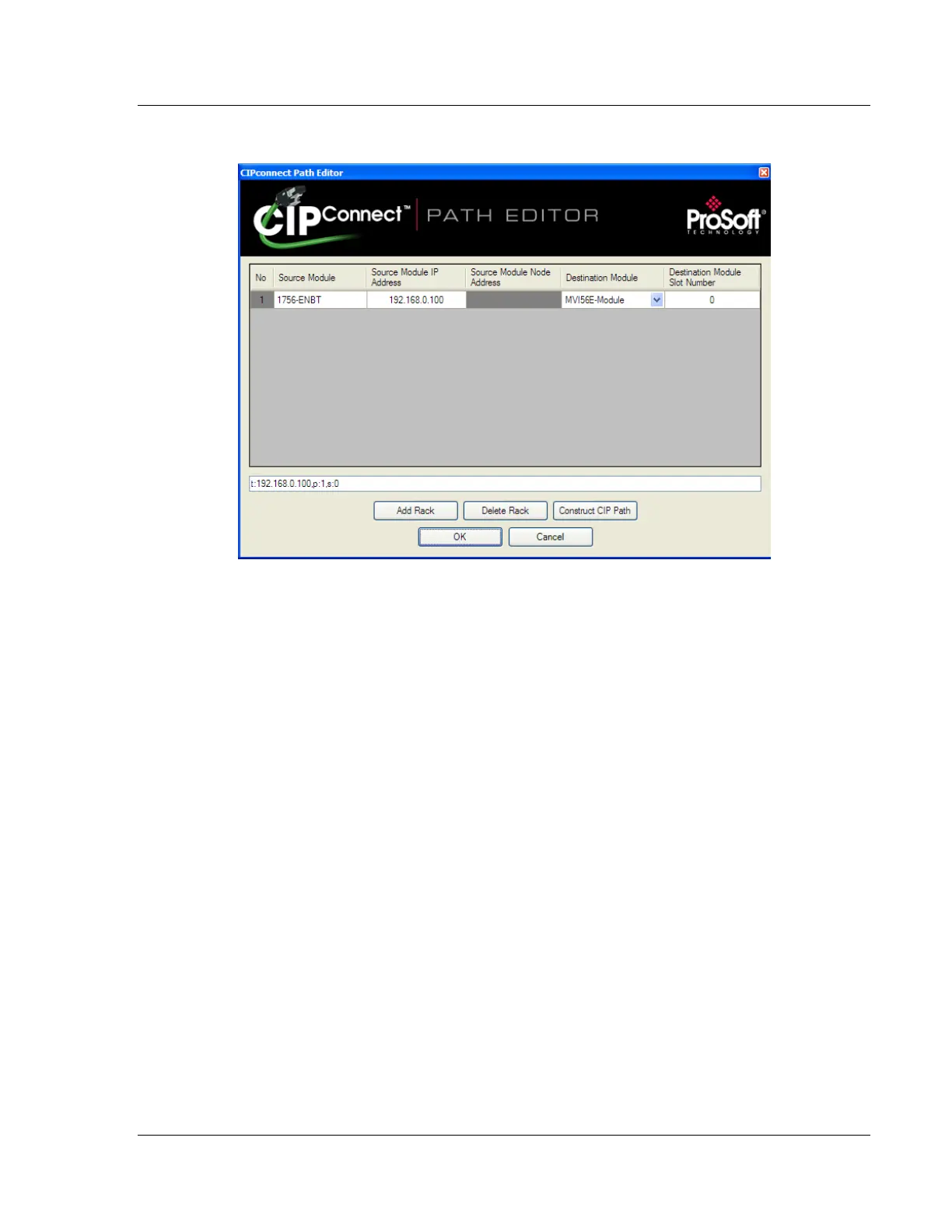

2 Click CIP PATH EDIT to open the CIPconnect Path Editor dialog box.
The CIPconnect Path Editor allows you to define the path between the PC and
the MVI56E-MCMR module. The first connection from the PC is always a 1756-
ENBT (Ethernet/IP) module.
