MVI56E-MCMR ♦ ControlLogix Platform Configuring the MVI56E-MCMR Module
Modbus Communication Module with Reduced Data Block User Manual
ProSoft Technology, Inc. Page 97 of 223

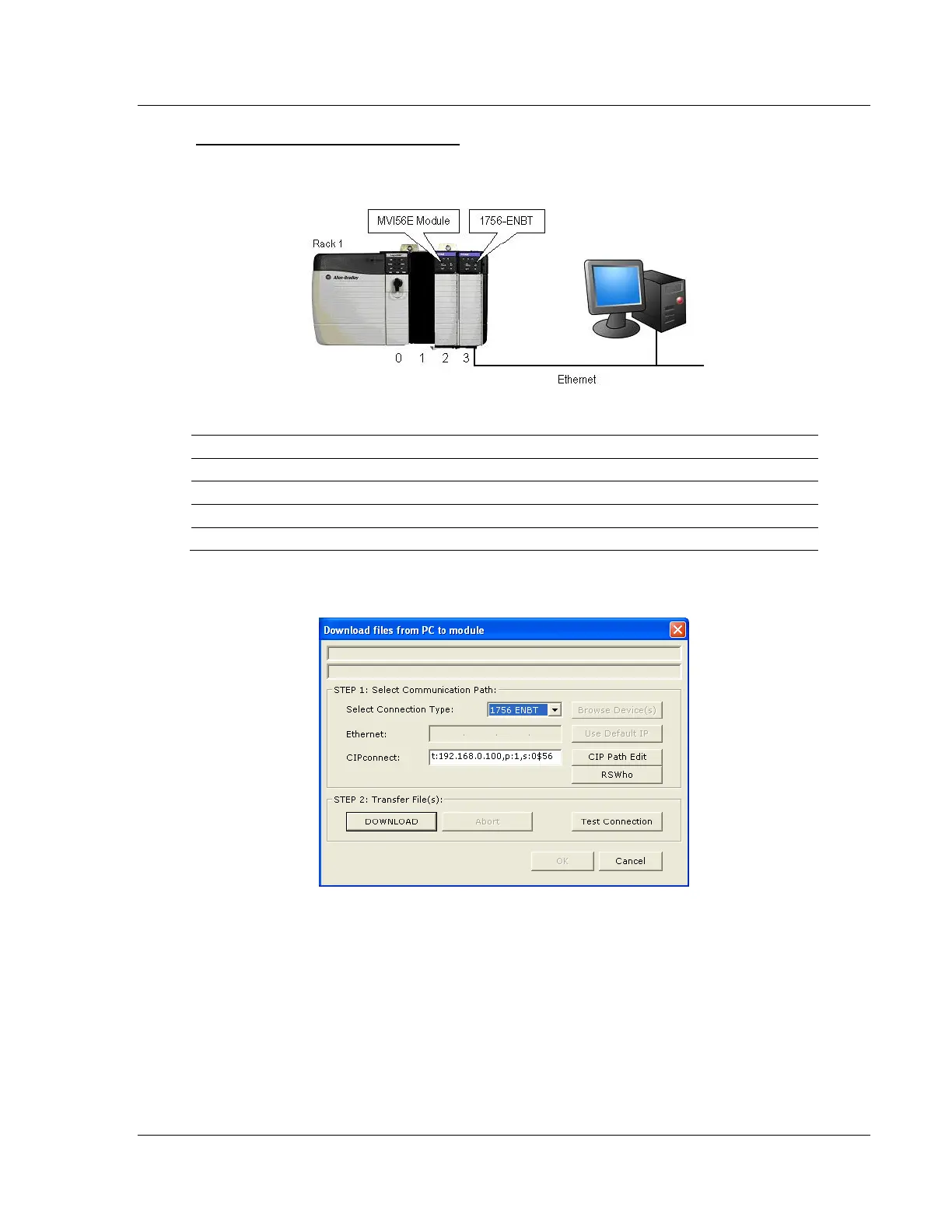

Example 1: Local Rack Application
For this example, the MVI56E-MCMR module is located in the same rack as the
1756-ENBT that is connected to the PC.
Rack 1
Slot
Module
Network Address
0
ControlLogix Processor
-
1
Any
-
2
MVI56E-MCMR
-
3
1756-ENBT
IP=192.168.0.100
1 In the Download dialog box, click CIP PATH EDIT.
